Intended for one (1) pivot sliding door installation. Purchase two (2) for two (2) door applications.
Features:

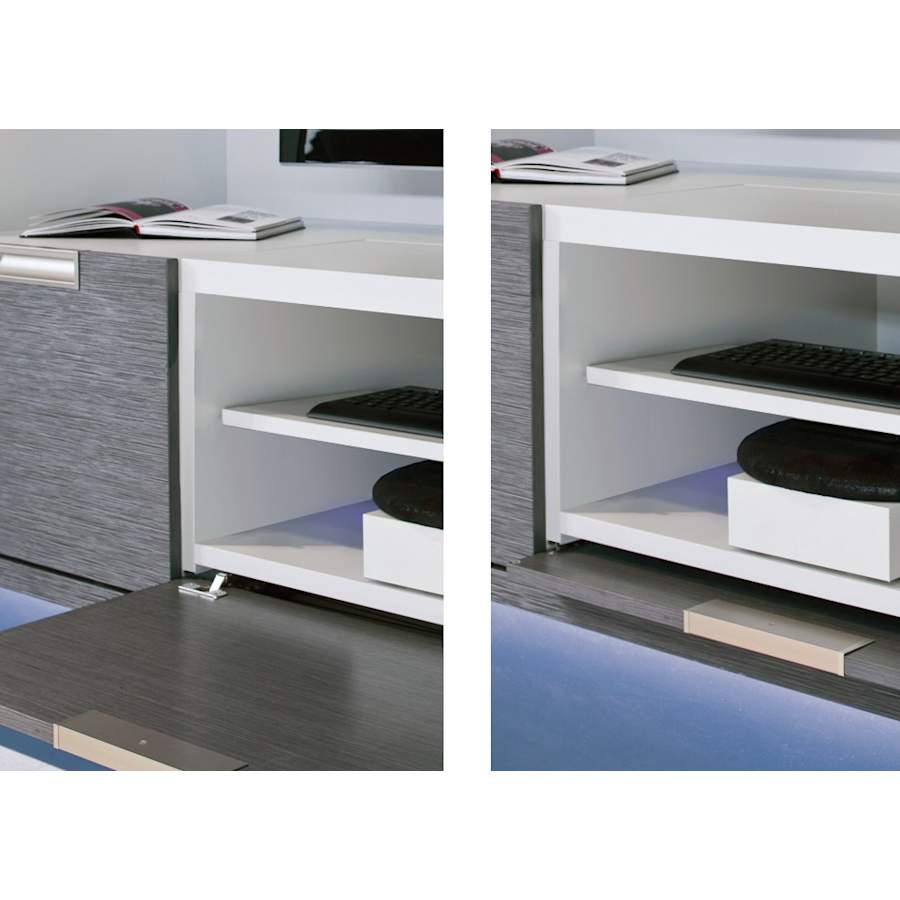

Cabinet door slide system converts cabinet doors to hidden pocket doors

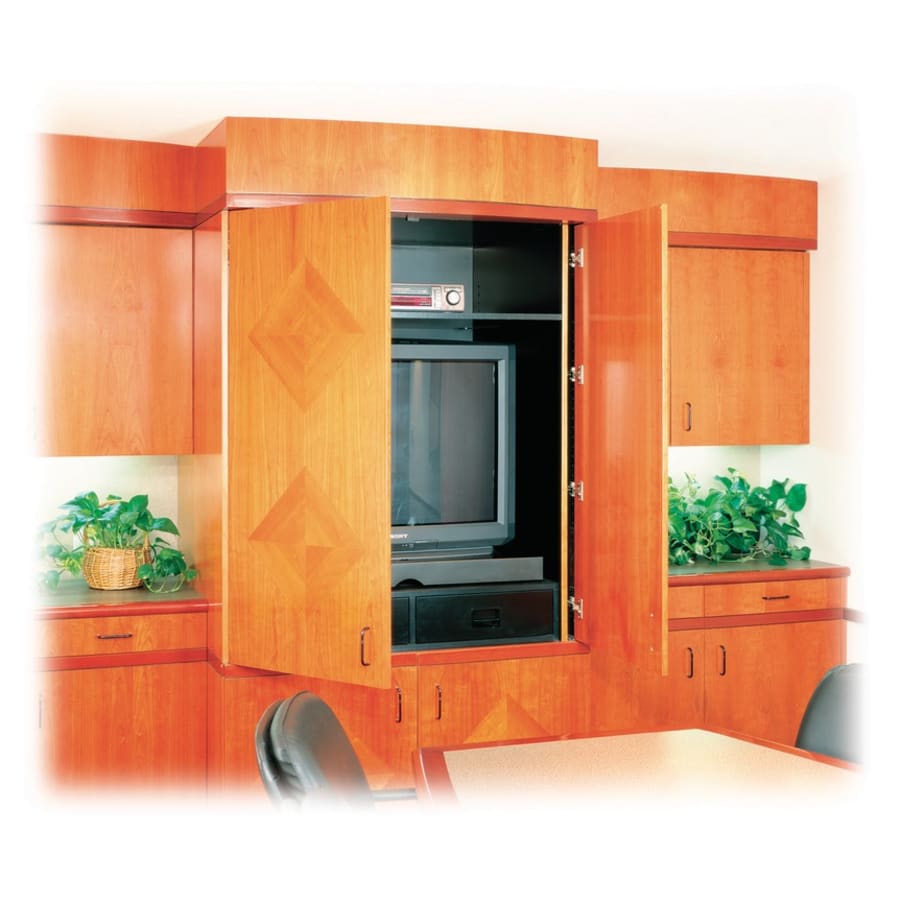

Ideal for concealing doors in entertainment centers, wall units, and cabinets
Designed for installation on vertically mounted doors
Includes 1-3/8″ (35 mm) hinge kit
Specifications:
Length: 24″
Door Thickness: 3/4″ to 1-1/4″
Maximum Cabinet Door Width: 26″
Maximum Cabinet Door Height: 78″
Weight Capacity: 75 lbs
Material: Steel

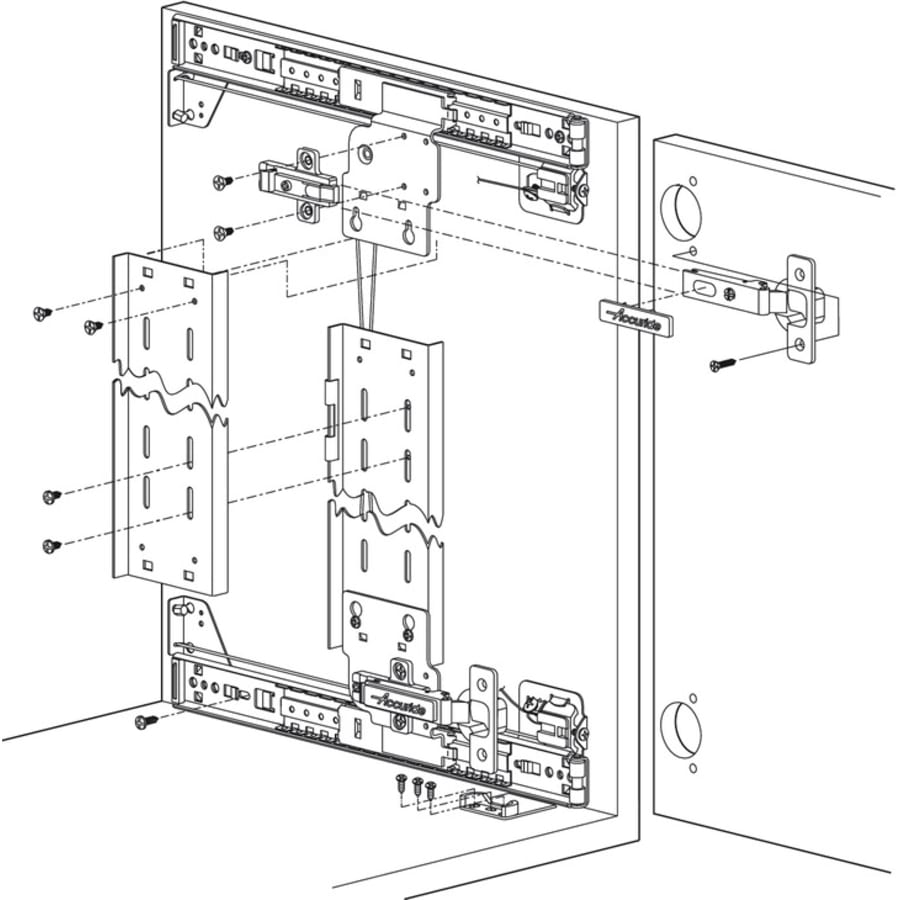

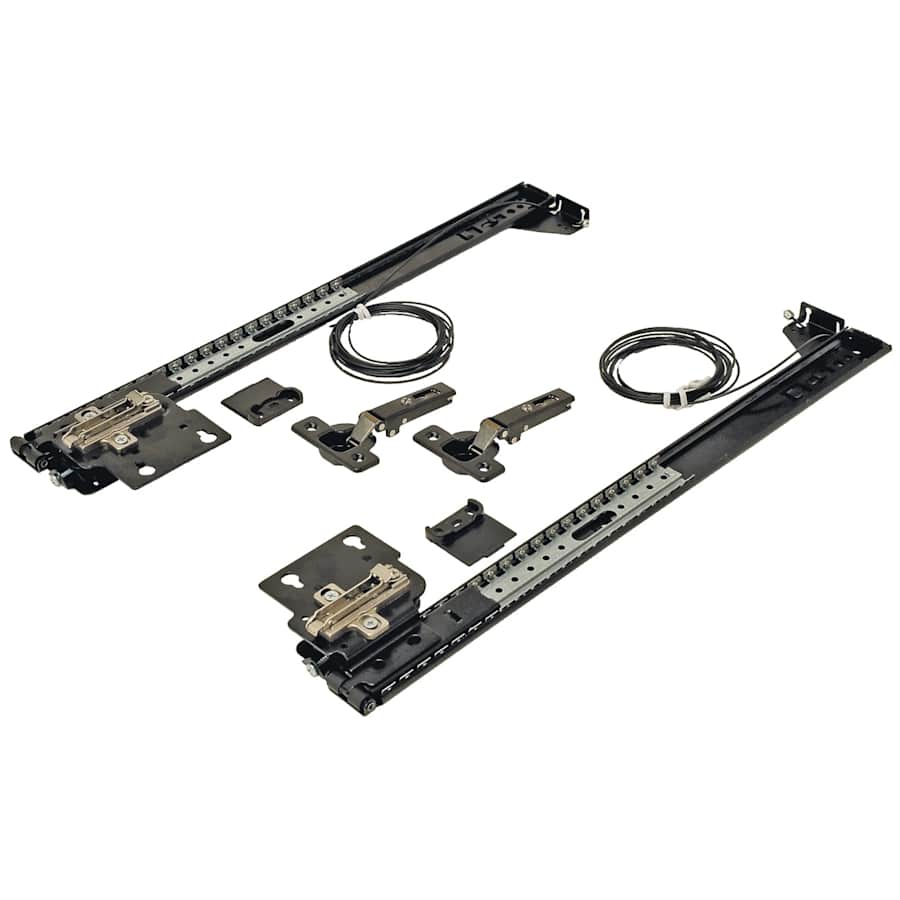

Includes: 2 slides, hinge kit, all mounting hardware and instructions
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele Accuride Collection
Specifications
Characteristics and Features
| Insulation Type | Screw |
| Material | Steel |
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Accuride |
Dimensions and Measurements
| Max Capacity (Pounds) | 75 lbs. |
| Length | 24 in. |
| Door Thickness | 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4" |
| Max Cabinet Door Thickness | 1.25 in. |
| Max Cabinet Door Thickness mm | 32 mm |
