Features:

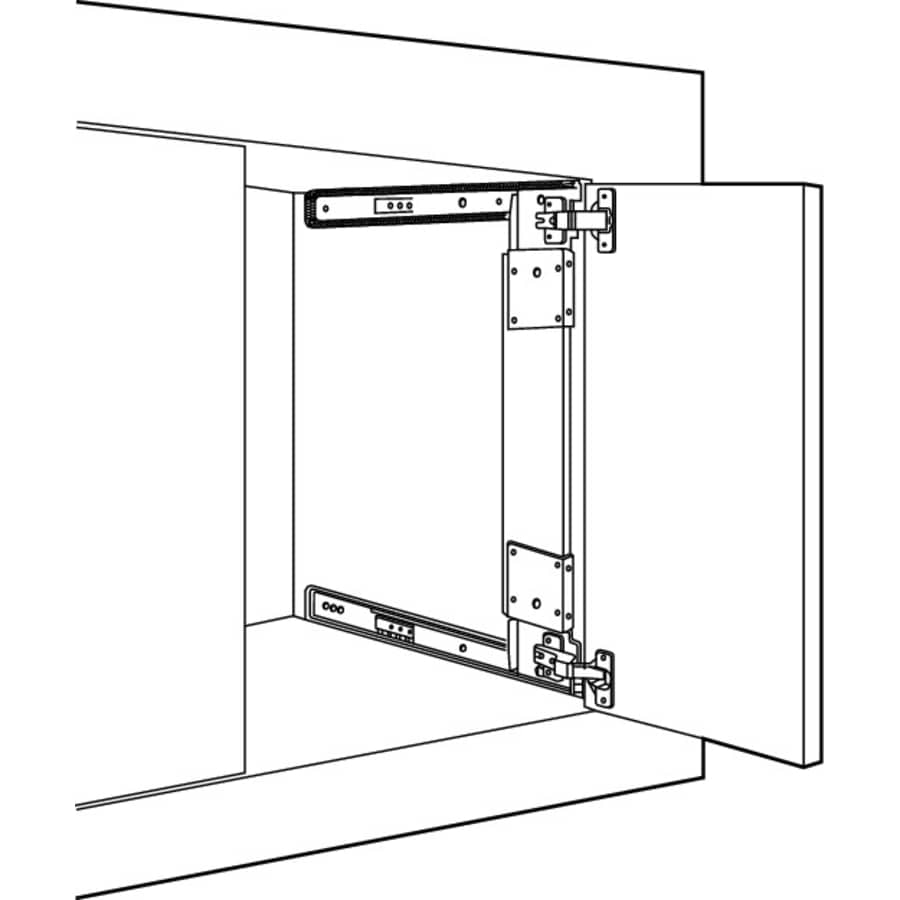

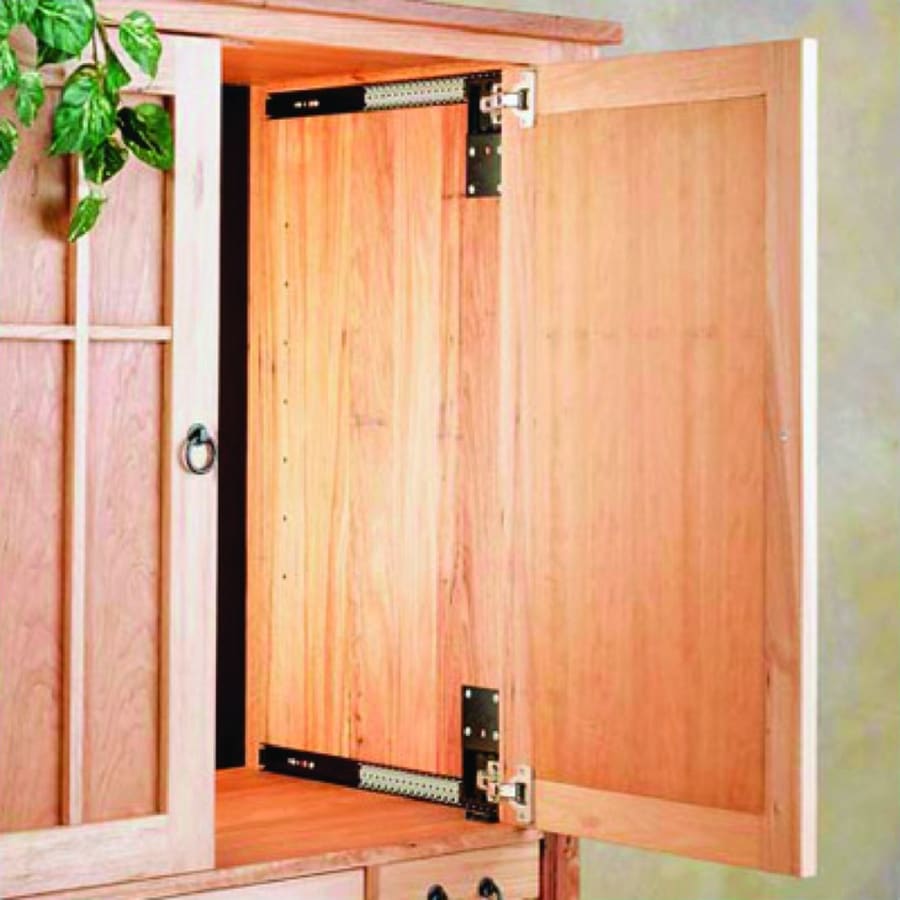

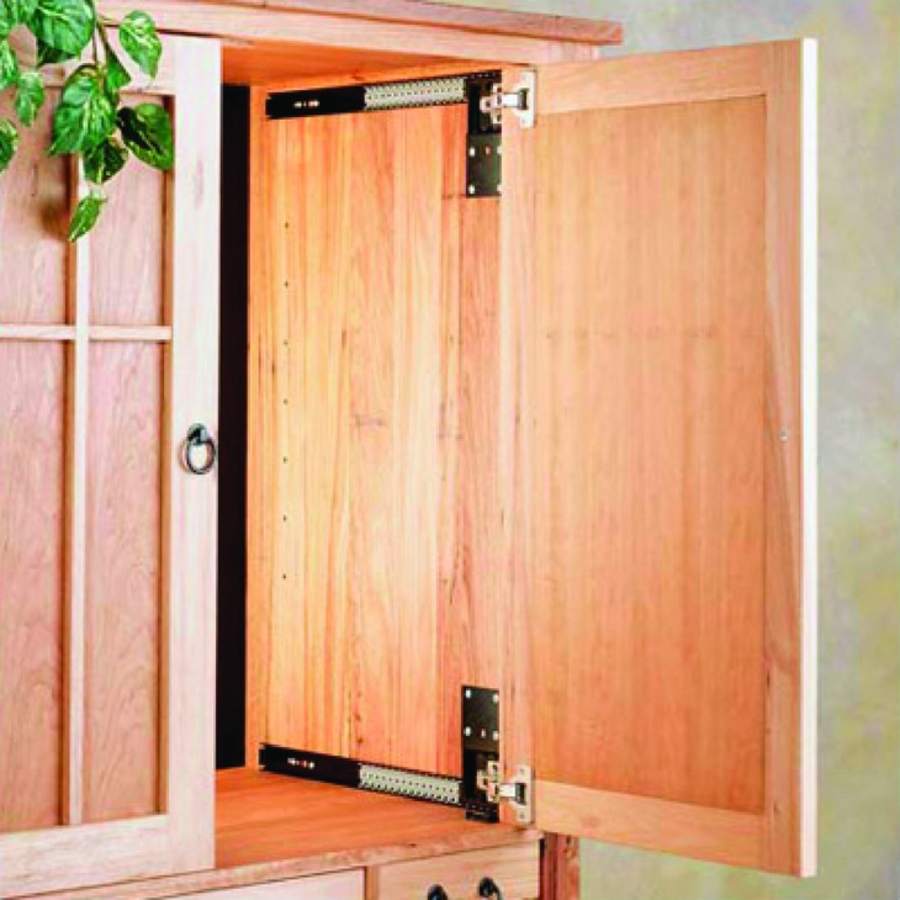

Cabinet door slide system converts cabinet doors to pocket “hidden” door
Ideal for concealing door in entertainment center, wall units, and cabinets
Installation requires a wood follower strip provided by customer
Follower strip is 6″ shorter than the door height
Maximum thickness of the follower strip is 3/4″ (19 mm)
Hinges and mounting plates are not included
Specifications:
Length: 24″ (608 mm)
Door Thickness: 5/8″ to 1-1/4″
Maximum Cabinet Door Width: 24″
Maximum Cabinet Door Height: 42″
Weight Capacity: 30 lbs
Material: Steel

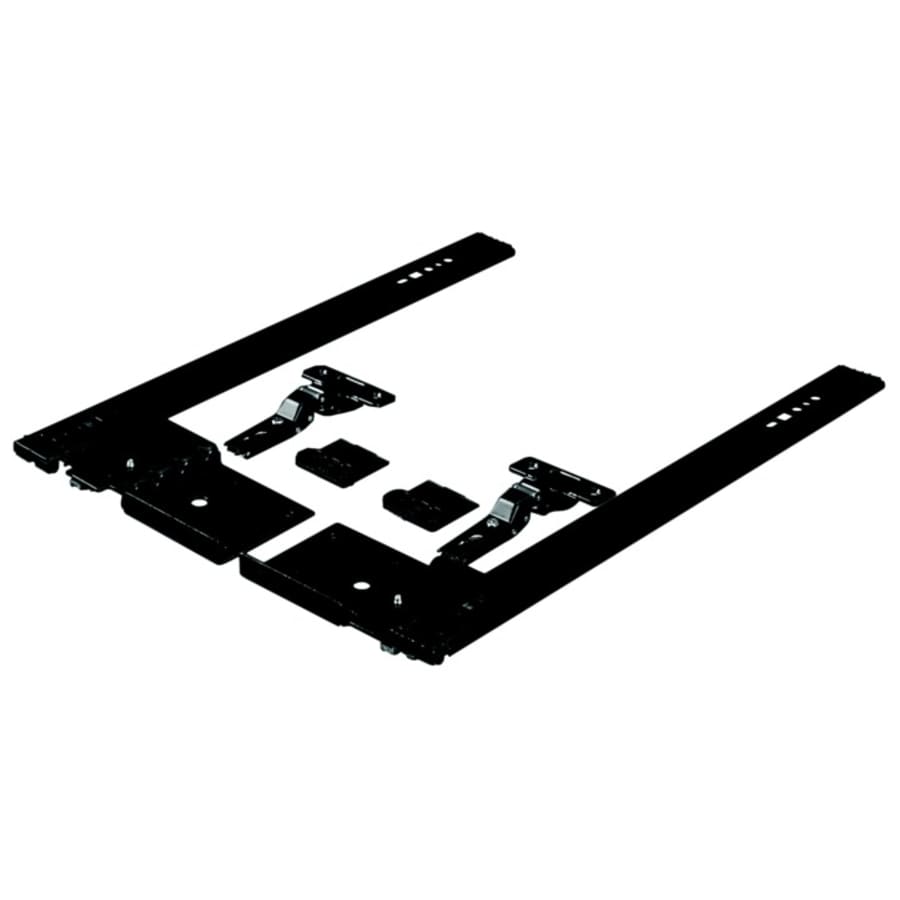

Includes: Two (2) slides, two (2) pivot blocks and all mounting hardware
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele Accuride Collection
Specifications
Characteristics and Features
| Material | Steel |
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | Accuride |
Dimensions and Measurements
| Door Thickness | 5/8", 3/4", 7/8", 1", 1-1/8", 1-1/4" |
| Max Capacity (Pounds) | 30 lbs. |
| Color | Black |
| Color Tone | Blacks |
