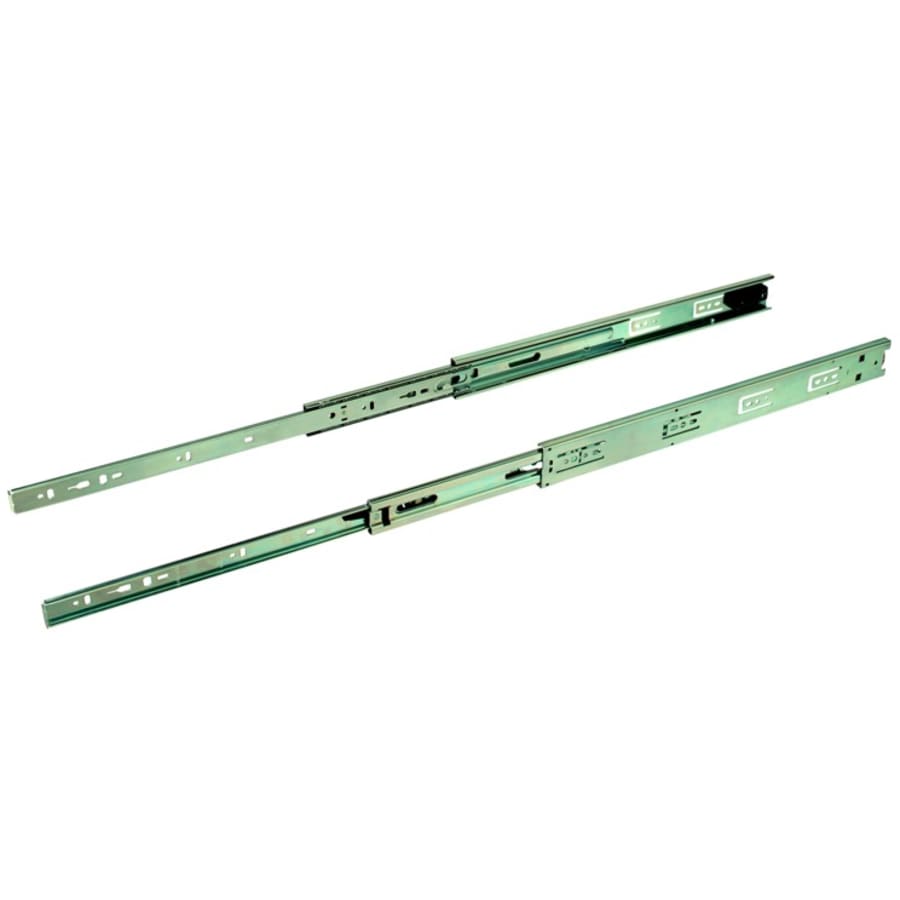

Features:
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system

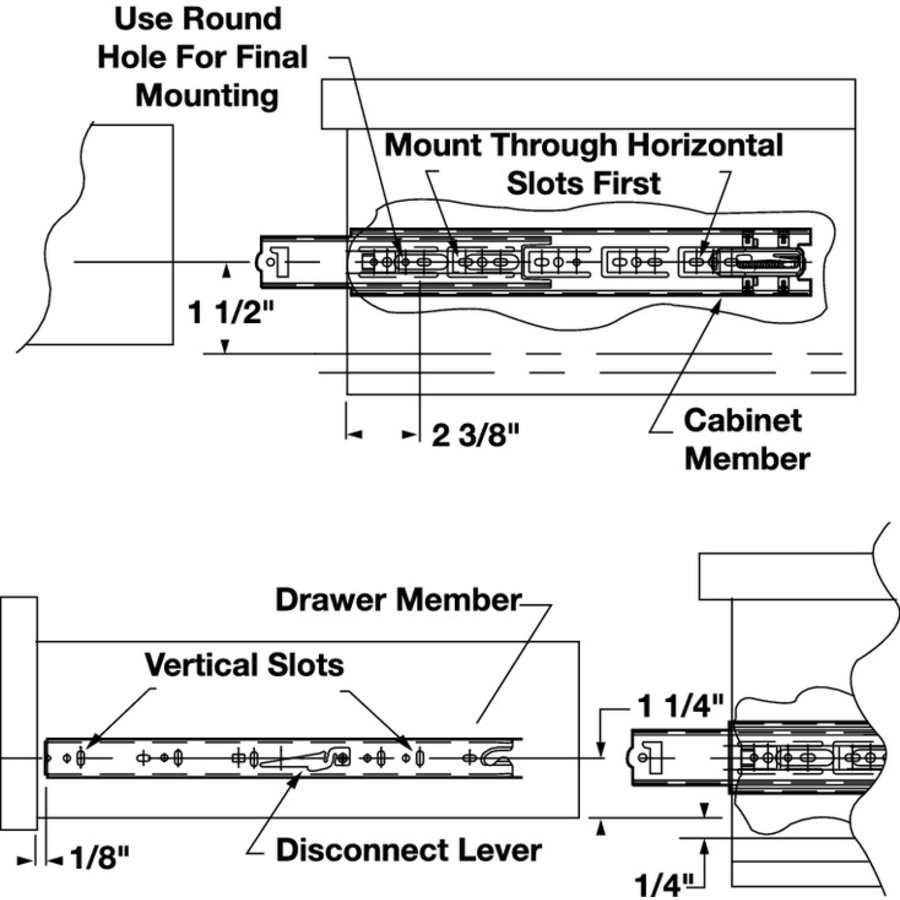

Slides can be installed in either panel (frameless) or face frame cabinets
Includes a 1 year limited manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 20-1/2″
Slide Length: 20″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Product Variations:
422.16.311: 12 Inch Drawer Slide
422.97.950 (This Model): 20 Inch Drawer Slide
422.04.650: 26 Inch Drawer Slide
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele Accuride Collection
Specifications
| Collection | 3832HDSC |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | No |
| Series | Accuride |
| BHMA Certification | Grade 1 |
| Length | 20 in. |
| Quantity | 2 |
| Extension | 20 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 20.5 in. |
| Maximum Drawer Width | 16 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | No |
| Extension Type | Full Extension |
| Soft Close | No |
| Mounting Type | Side Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Detent | Yes |
| Disconnect Style | Lever |
| Push to Open | No |
| Self Closing | Yes |
| Slide Type | Ball Bearing |
