Features:
Designed for a single 64lb glass door
Rattle-free guide for smooth and quiet operation
Vertical adjustment possible without door removal
Maintenance-free simple installation
Suitable for tempered and laminated glass
Kit Includes:
2 running gears
2 suspension bolts
2 patch suspension sets
2 track stoppers with adjustable retention spring
1 one-way drilling jig
1 wall buffer
1 height adjusting pin

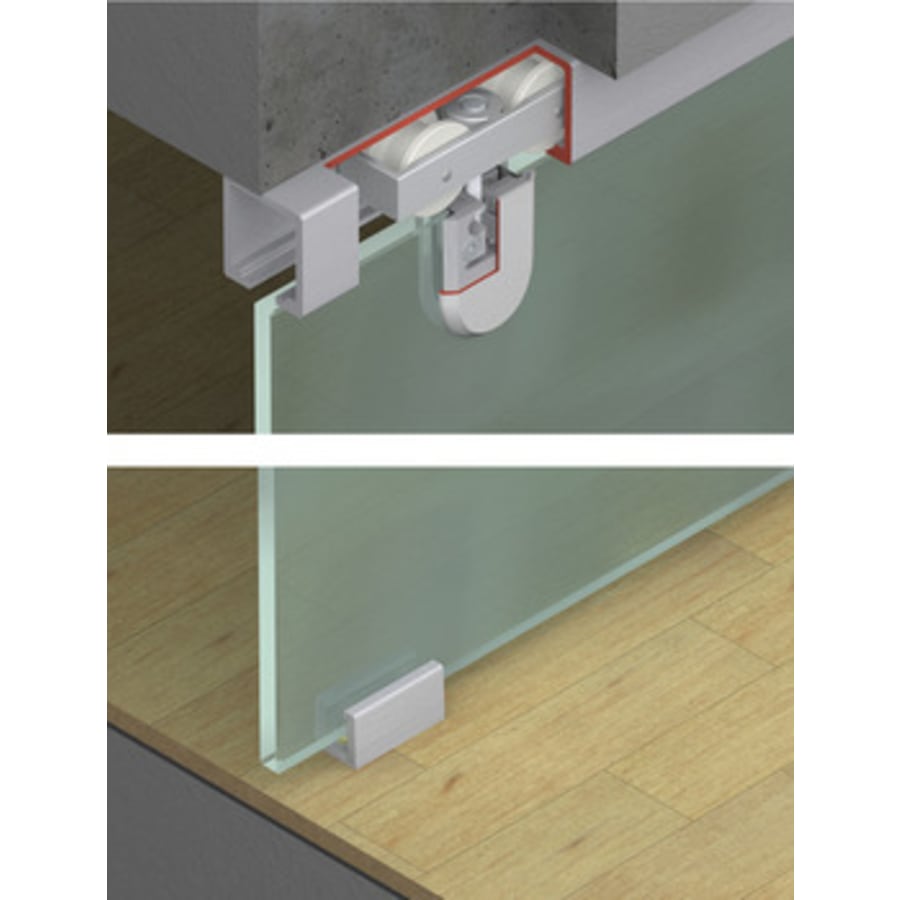

Mounting Instructions
Specifications:
Max Door Thickness: 1/2″
Max Door Weight: 120 LB
Max Door Width: 1/2″
Number of Doors: 1
Material: Aluminum
Quantity: 1
Additional Hafele Links
View the Manufacturer Warranty
Browse all Hafele Products
Hafele HAWA Junior Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | HAWA Junior |
| ADA | No |
Characteristics and Features
| Material | Aluminum |
| Number Of Doors | 1 |
Dimensions and Measurements
| Quantity | 1 |
| Door Thickness | 1/2" |
| Max Door Weight | 120 lbs. |
| Max Door Width | 0.5 in. |
