Hager 3.5″ x 15″ Rounded Bevel Square Corner 0.125″ Gauge Pull Plate with 1″ Round Cast Pull on 5-1/2″ Center from the Pull Plates Collection

Pull Plates Collection 3.5″ x 15″ Rounded Bevel Square Corner 0.125″ Gauge Pull Plate with 1″ Round Cast Pull on 5-1/2″ Center

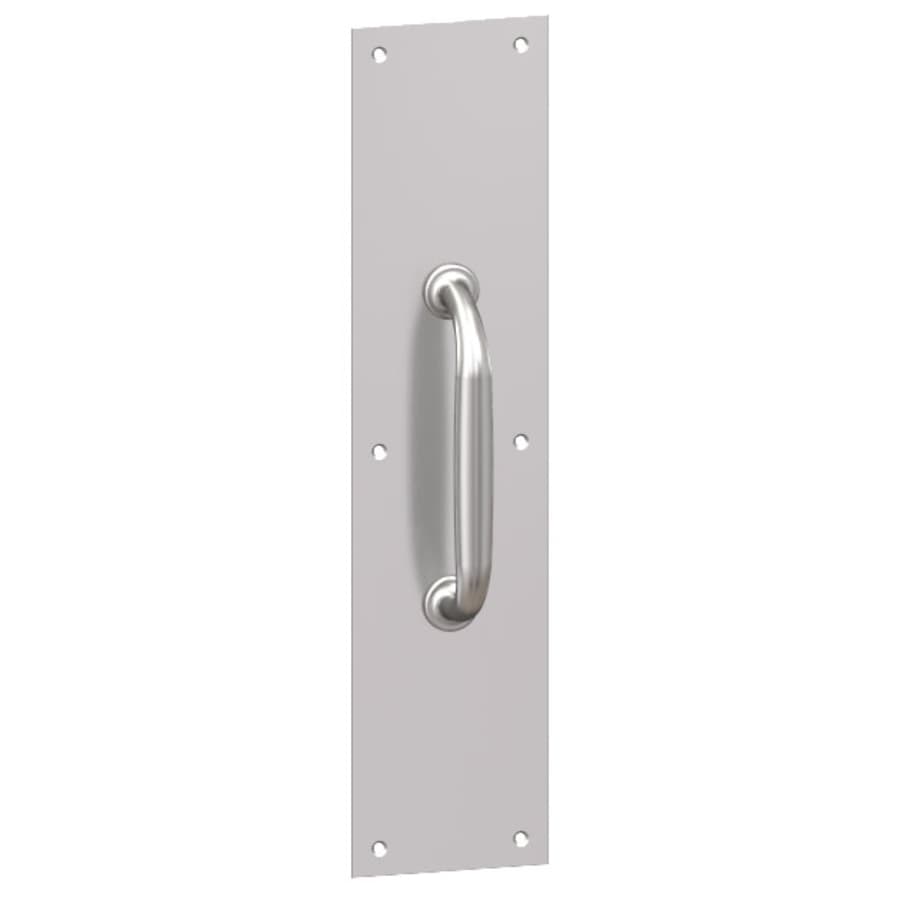

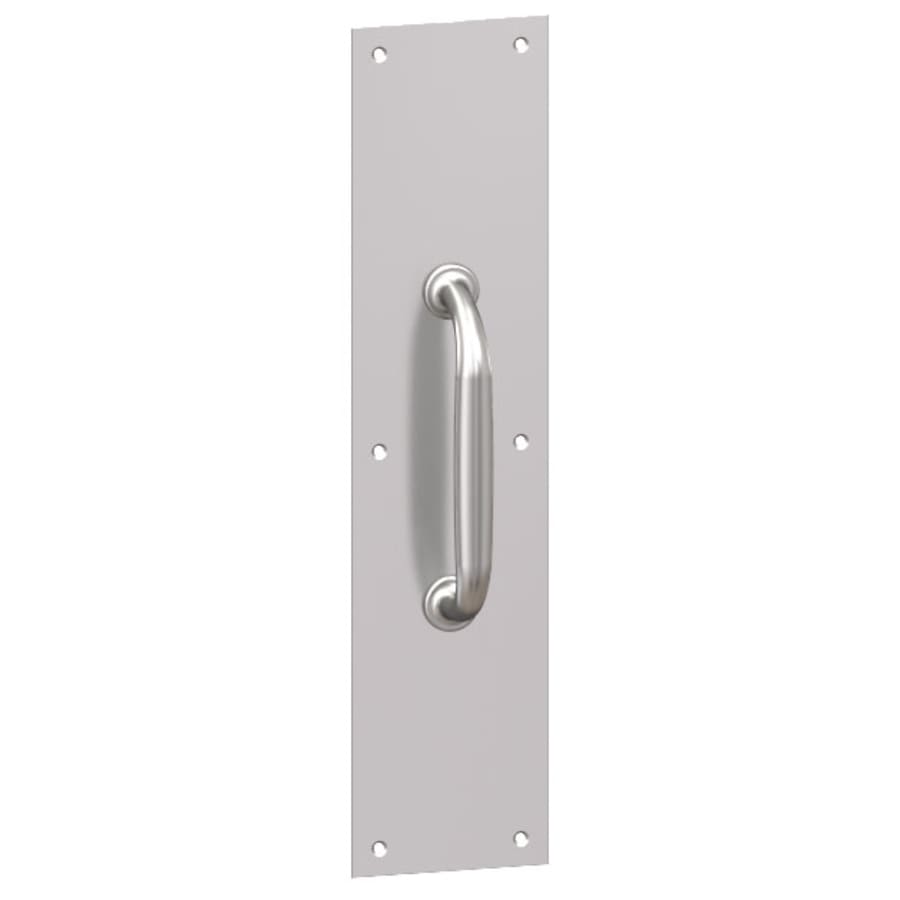

Protect your doors with the Hager 3 1/2″ x 15″ plate and pull handle combo. This combination includes a cast door pull with 5 1/2″ centers, a square corner 0.125″ gauge push plate with top and bottom bevel and the necessary mounting hardware. This commercial grade pull plate is ANSI 156.6 certified and will be a long lasting and durable door pull in high traffic areas.

Features:

Meets ANSI A156.6 for J407 pull plates.
Includes (6) #6 x 5/8″ oval phillips head tapping screws.
Includes (1) 100T pull plate and (1) 6N door pull.
Plate has rounded bevel on the top and bottom edges.

Specifications:

3-1/2″ (89mm) Width
15″ (381mm) Height
0.125″ Thick
5-1/2″ Center to Center
6-1/2″ Overall Handle Height
1-7/8″ Projection
1-3/8″ Clearance
1-3/4″ Door Thickness
1″ Diameter Handle Base
Material: Brass, Bronze, Aluminum, or Stainless Steel

At Hager Companies, they know all about the importance of adding the right finishing touches to your building projects. They are proud to offer more than 200 different trim and auxiliary door hardware products in a variety of designs, sizes, and finishes that not only look great, but also provide long-lasting wear in any application. Whatever you need, from pulls to push plates, protection plates to door edgings, wall and floor stops to flush bolts, coordinators, signage, and much more–Hager trim and auxiliary products give you great looks and proven durability.
