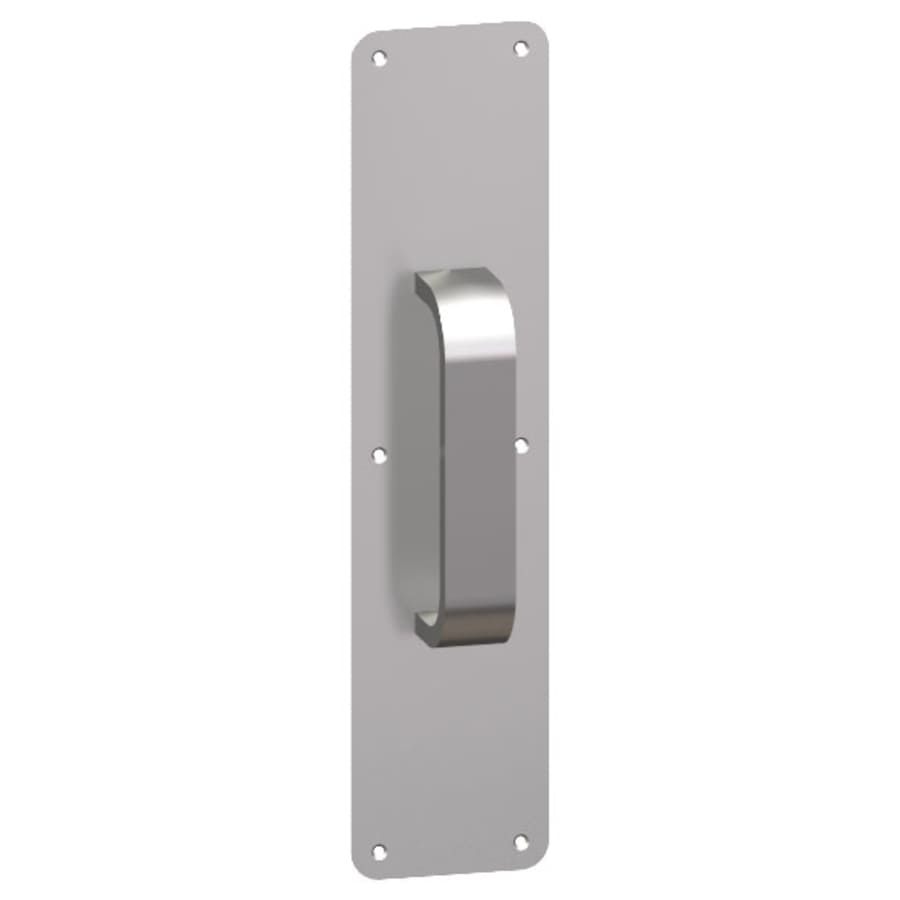

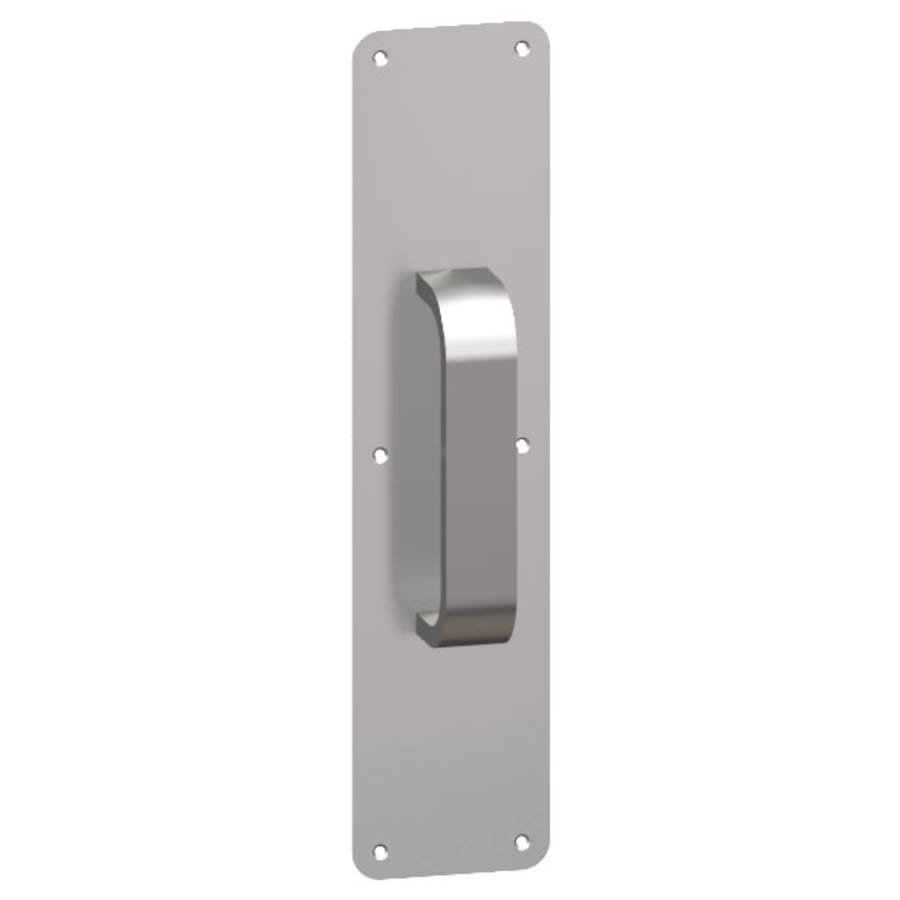

Hager 6″ x 16″ 1/2″ Radius Corner 0.050″ Gauge Pull Plate with 1″ Round Wrought Pull on 10″ Center from the Pull Plates Collection

Pull Plates Collection 6″ x 16″ 1/2″ Radius Corner 0.050″ Gauge Pull Plate with 1″ Round Wrought Pull on 10″ Center

Protect your doors with the Hager 6″ x 16″ plate and pull handle combo. This combination includes a 1″ round door pull with 10″ centers, a radius corner push plate with a gauge of 0.050″ and the necessary mounting hardware. This commercial grade pull plate is ANSI 156.6 certified and will be a long lasting and durable door pull in high traffic areas.

Features:

Meets ANSI A156.6 for J405 pull plates.
Includes (6) #6 x 5/8″ oval phillips head tapping screws.
Includes (1) 40R pull plate and (1) 4J door pull.
Plate is not beveled.

Specifications:

6″ (152mm)Width
16″ (406mm) Height
0.050″ Thick
10″ Center to Center
2-3/4″ Projection
1-3/4″ Clearance
1-3/4″ Door Thickness
3/4″ Diameter Handle Base
Material: Brass, Bronze, Aluminum, or Stainless Steel

At Hager Companies, they know all about the importance of adding the right finishing touches to your building projects. They are proud to offer more than 200 different trim and auxiliary door hardware products in a variety of designs, sizes, and finishes that not only look great, but also provide long-lasting wear in any application. Whatever you need, from pulls to push plates, protection plates to door edgings, wall and floor stops to flush bolts, coordinators, signage, and much more–Hager trim and auxiliary products give you great looks and proven durability.
