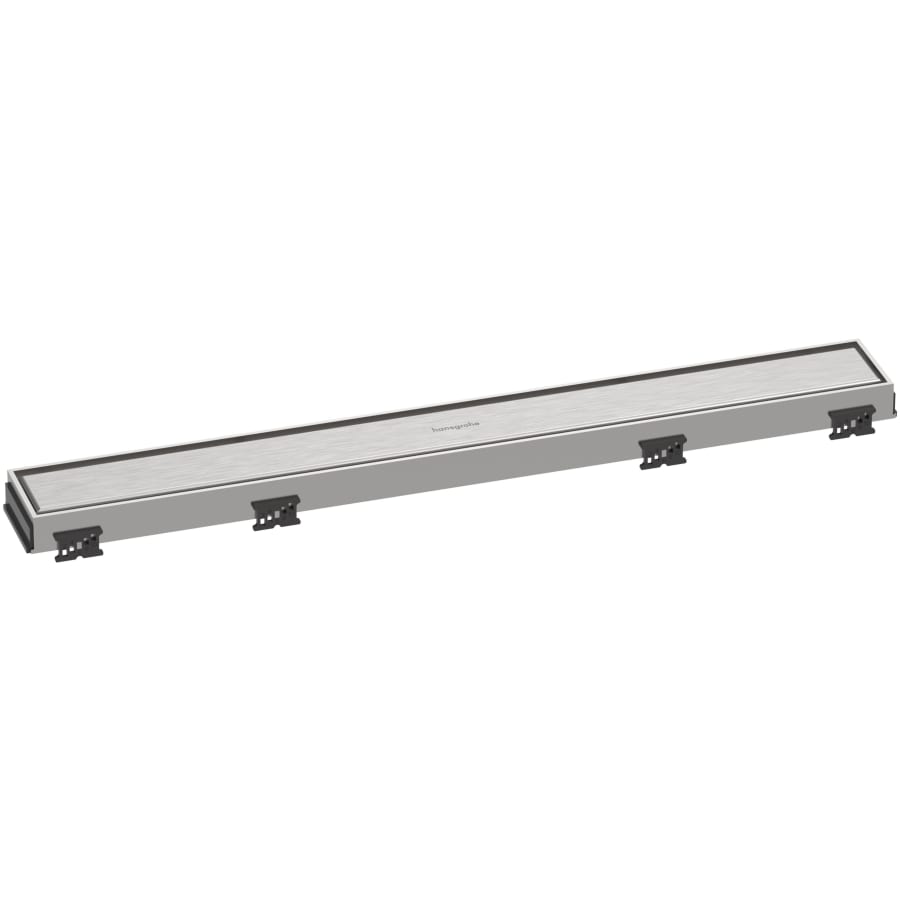

Hansgrohe RainDrain Match Trim 23-5/8″ with Height Adjustable Frame

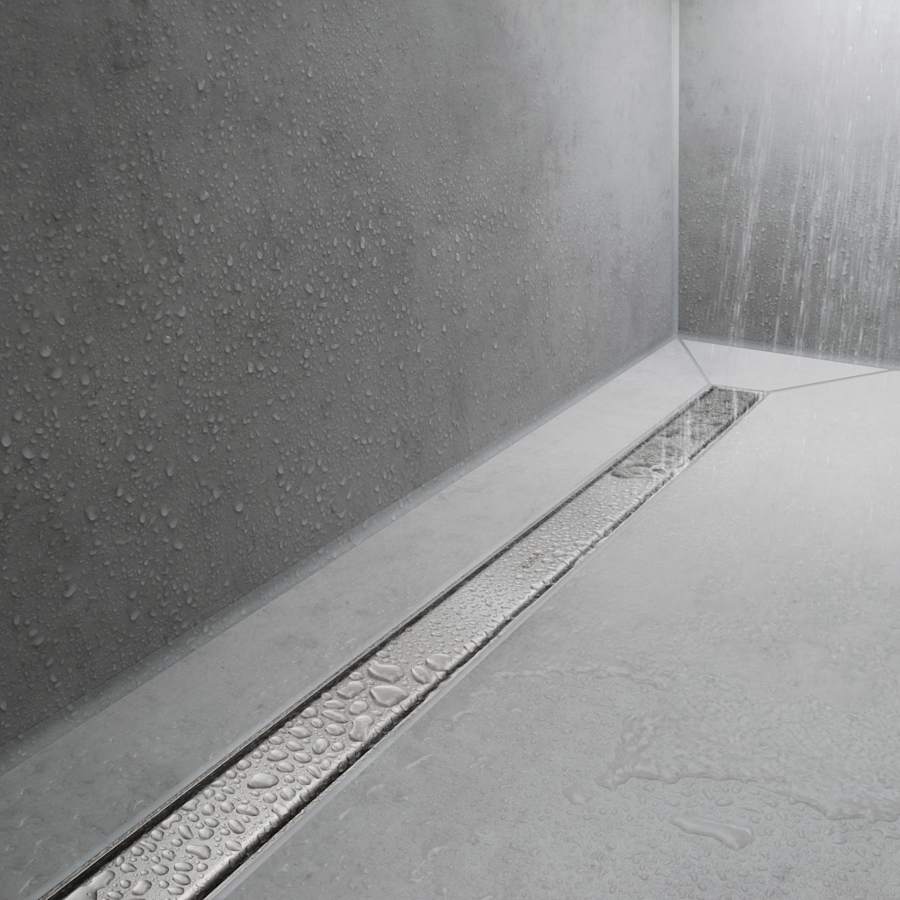

The RainDrain Match 23 5/8″ drain trim (finish set) in brushed stainless steel from hansgrohe is a flexible drainage solution for installation flush with the back wall or freestanding in the shower area. The shower drain trim’s brushed stainless steel finish goes particularly well with modern bathroom designs. Alternatively, the channel can be tiled at the back also (max. tile thickness 18 mm). The vertically adjustable frame offers flexibility in the drain barrier also: so the system can be adjusted to the height of the tiles – for floor-level installation without trip hazard. The result meets the requirements of a barrier-free shower area. The innovative high-tech silicone membrane also ensure that hair and dirt do not get stuck. This helps prevent annoying blockages in the drain. It is easy: They are installed on a complete set with pre-assembled sealing fleece (sold separately).

Hansgrohe 56036 Features:

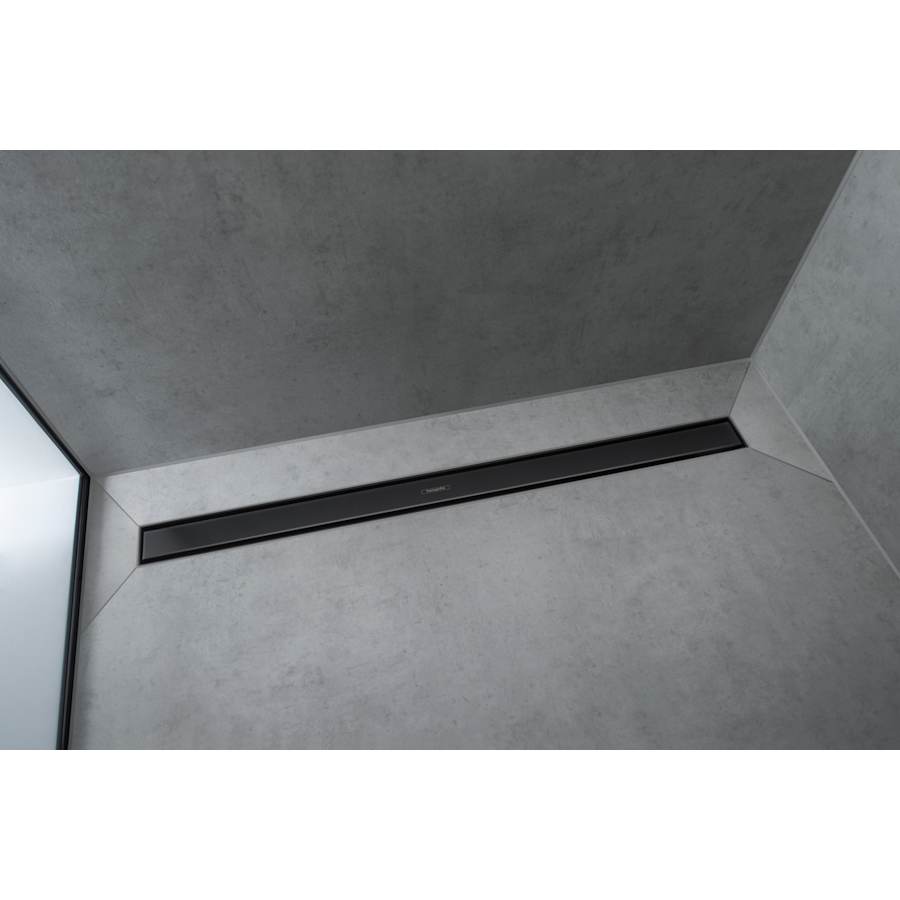

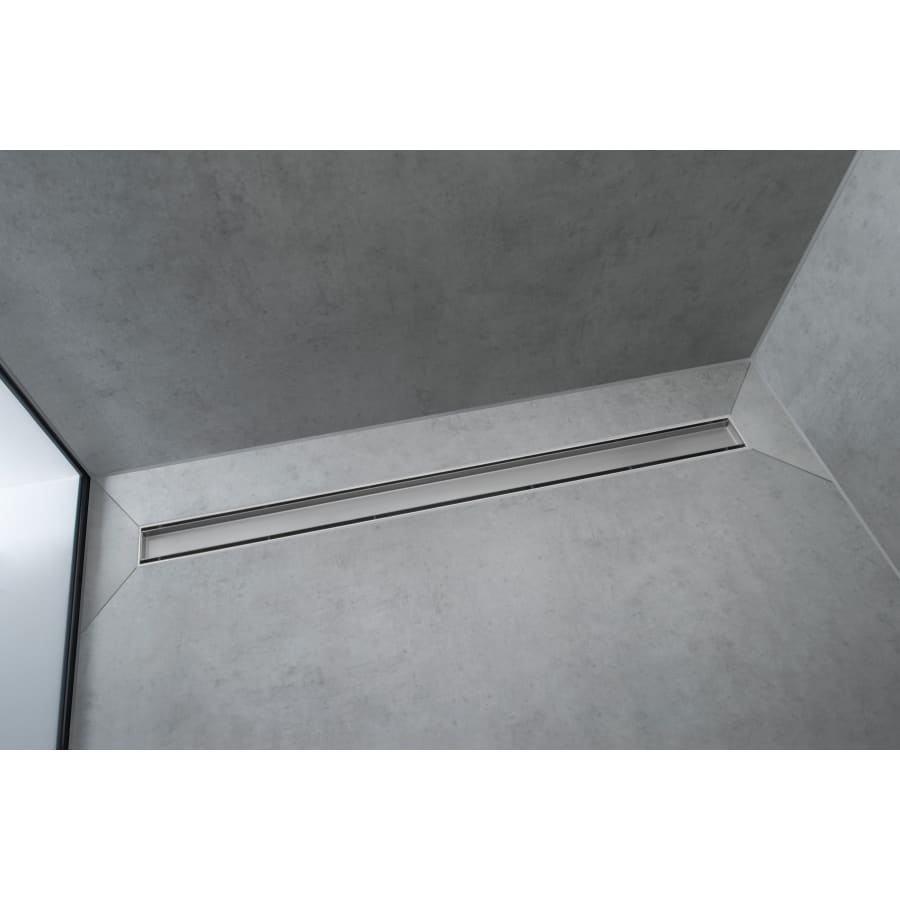

Design freedom: Drain with height-adjustable frame for free-standing installation or flush with the back wall
Robust and durable: The cover is made of high-quality 304 stainless steel (1.4301)
Box contents: Finish set for drain trim, wall mounting set, cover lifter, mounting material, assembly instructions
Flexible: Complete set #56010181 required for seal water height of 30 mm (flat installation) or seal water trap height of 50 mm (standard installation)
Safe installation: Installation on a complete set with pre-assembled sealing fleece that is available separately
Barrier-free shower area: Height-adjustable installation for a floor-level shower without trip hazards
Premium materials are used in all components for more safety and sustainability at home
Required parts: This product requires the RainDrain Rough 23 5/8″ (Part # 56010181)
Limited lifetime consumer warranty: Consumer purchases of hansgrohe products from authorized sellers are covered by a limited lifetime manufacturer warranty applicable to the original purchaser

Manufacturer Features:

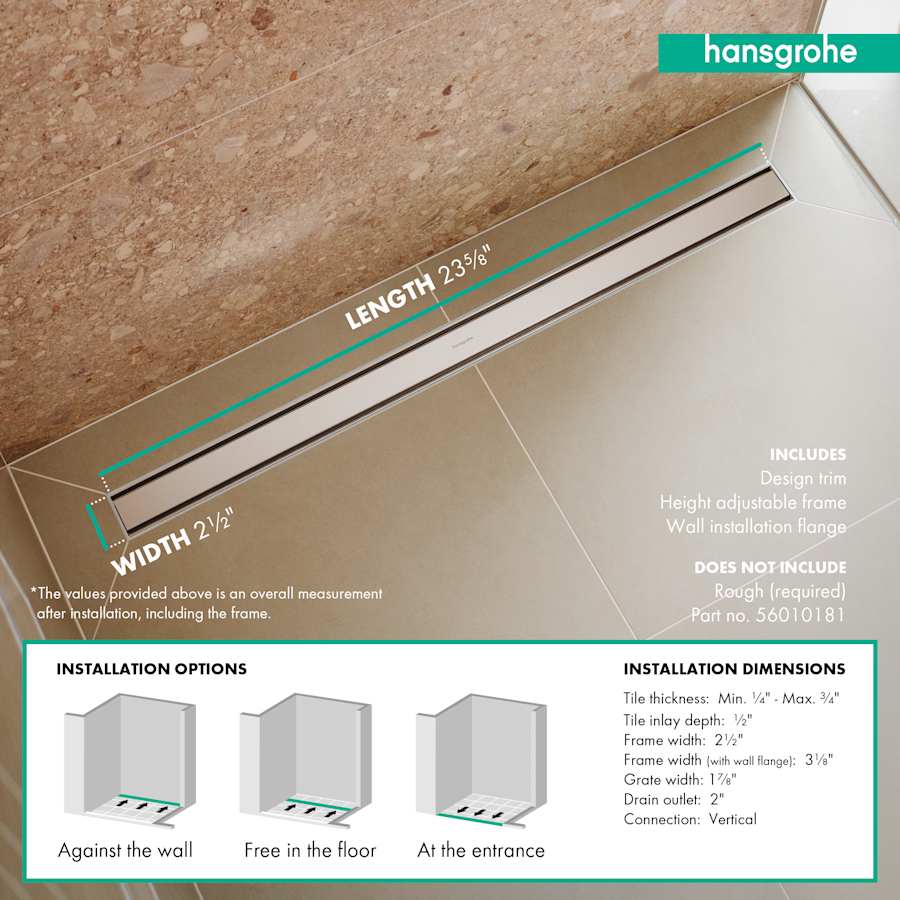

Consists of: design grate, height adjustable frame, wall installation flange, hair catcher
mounting type: wall-mounted, free in the floor
easy to clean surface

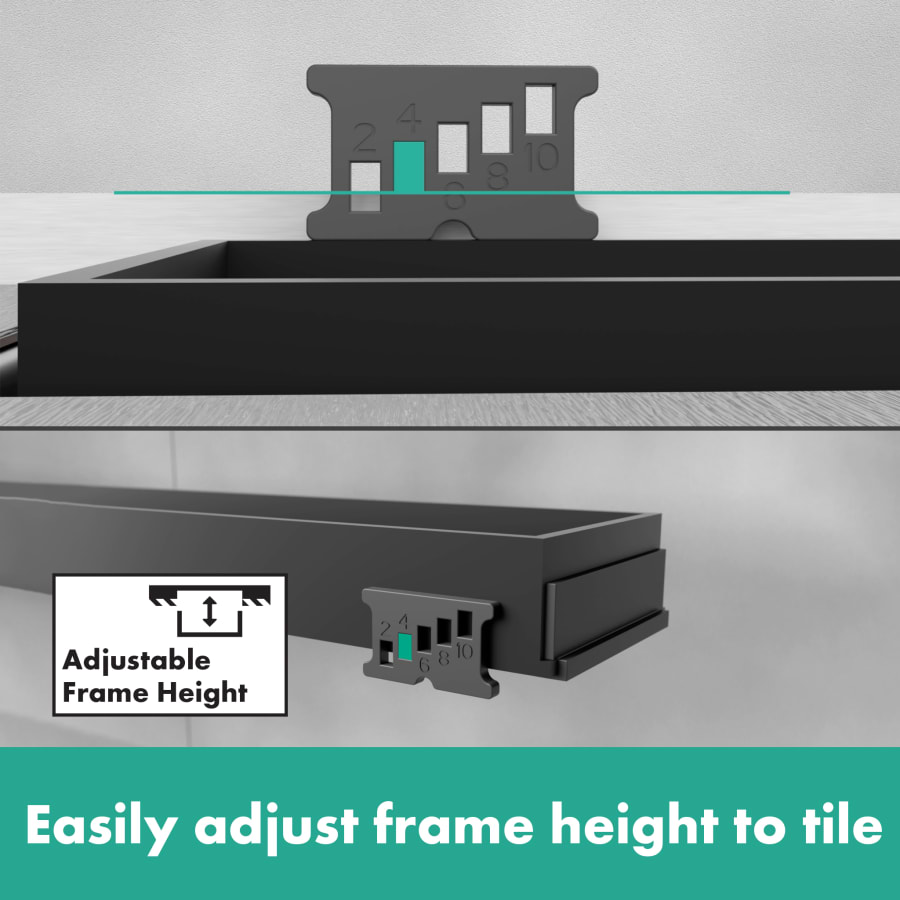

easy adjustment to tile thickness with height adjustable frame 1/4”-3/4”
tile thickness: up to 2 3/8”
suitable for any type of tile

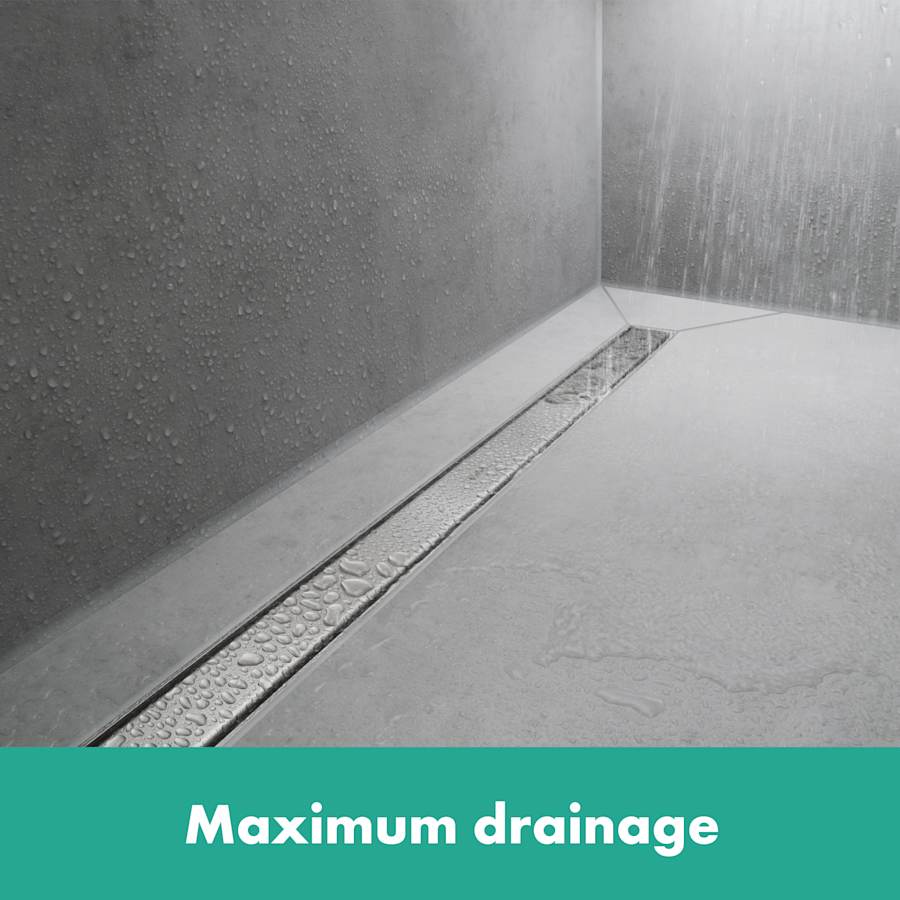

up to 15.85 GPM drainage capacity
field of application: new construction, renovation
grate removal tool allows easy removal of the pre-fab set
tile inlay depth: 1/2”
grate material: Stainless Steel 304 (1.4301)

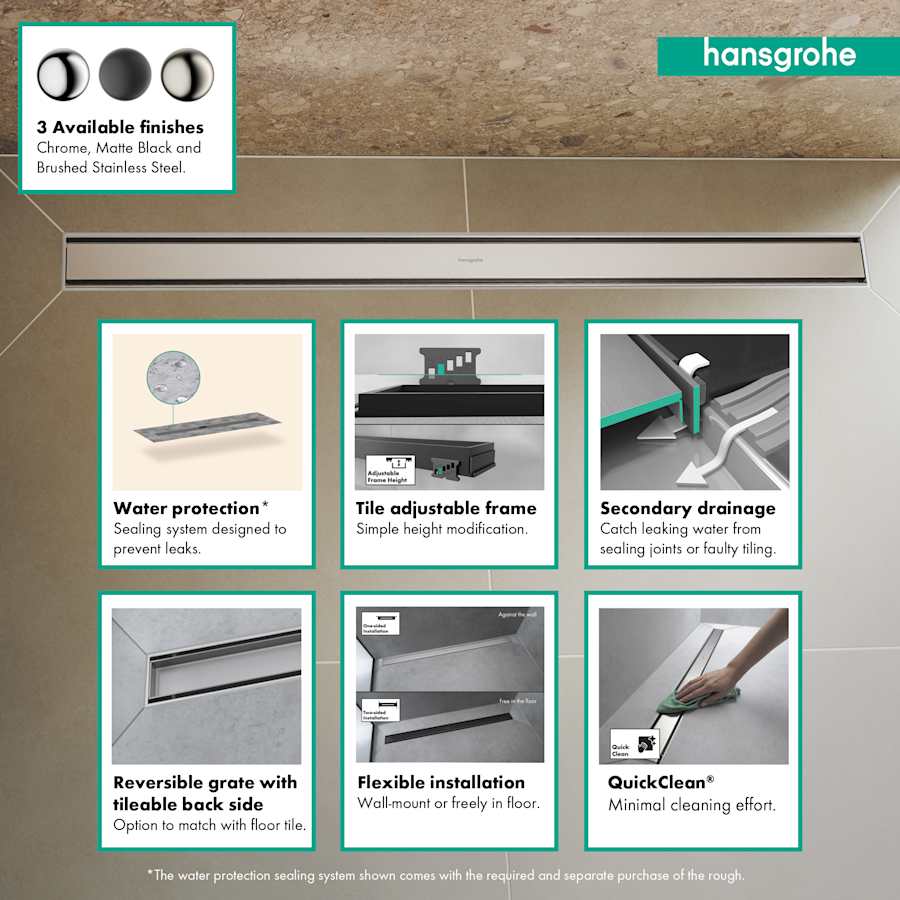

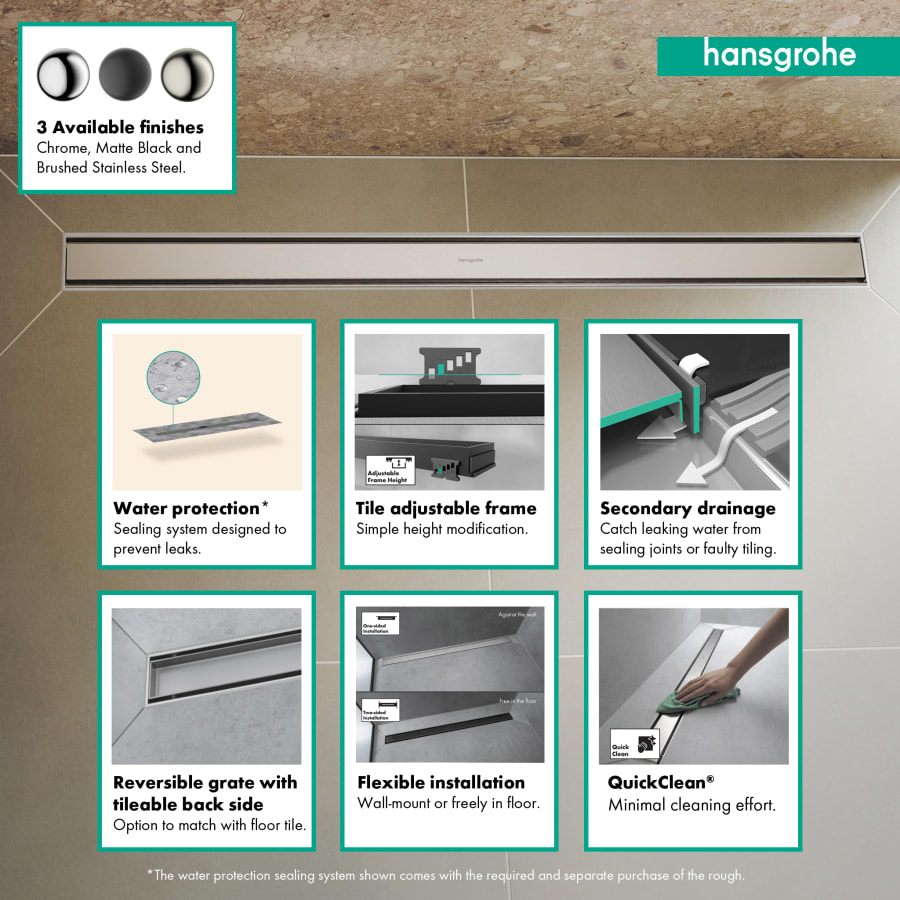

suitable for primary and secondary drainage
frame width: 2 1/2”
