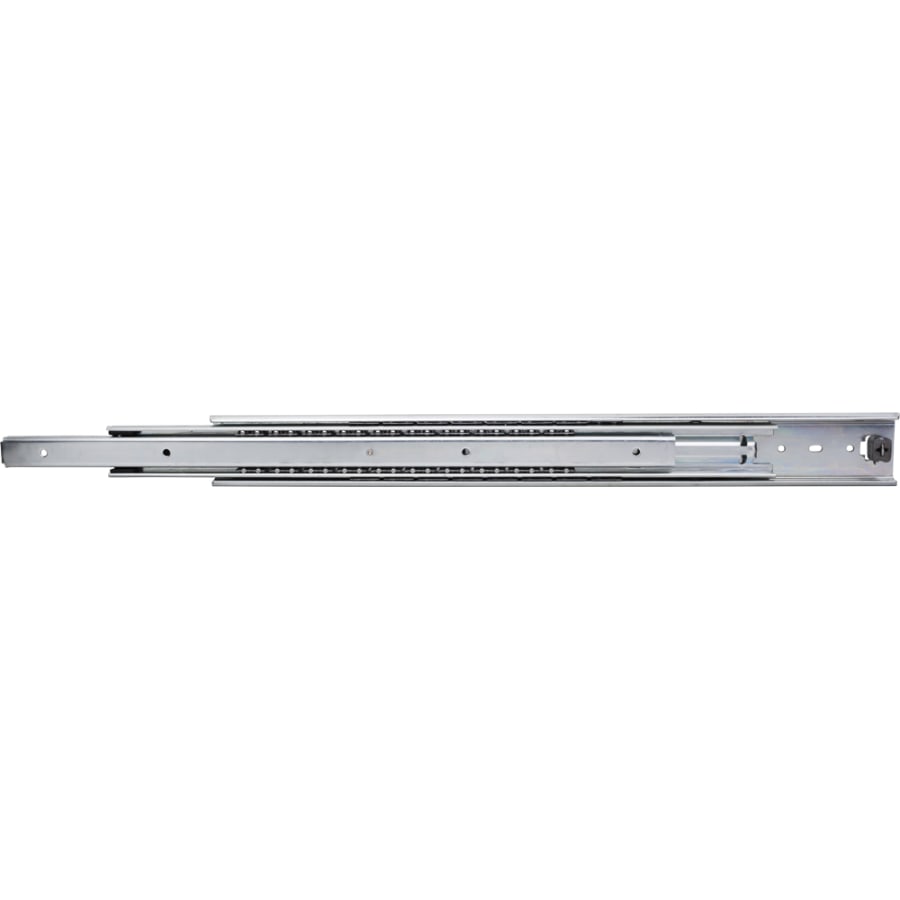

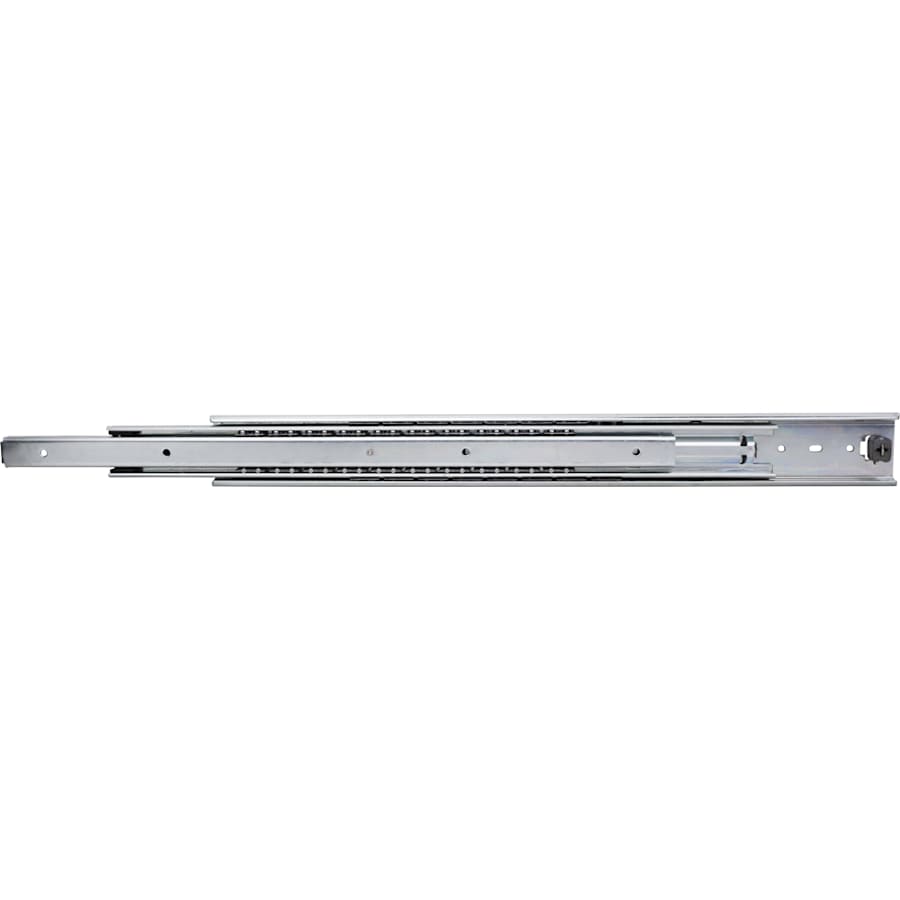

Features:
Drawer slides are rated for 225 pounds at full extension
Mounts to the side of the drawer for stability and strength
Provides easy access to drawer with 1″ over travel slides
Lever disconnect allows easy and quick removal of the drawer from the cabinet members
Designed to be installed on panel frameless cabinets
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
Drawer Length: 18″
Slide Length: 18″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 225 lbs
Minimum Cabinet Depth: 18″
Material: Steel
Quantity: 2
Product Variations:
209FU16: 16 Inch Over travel Drawer Slide
209FU18 (This Model): 18 Inch Over travel Drawer Slide
209FU20: 20 Inch Over travel Drawer Slide
209FU22: 22 Inch Over travel Drawer Slide
209FU24: 24 Inch Over travel Drawer Slide
209FU26: 26 Inch Over travel Drawer Slide
209FU28: 28 Inch Over travel Drawer Slide
209FU30: 30 Inch Over travel Drawer Slide
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 209FU Collection
Specifications
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Series | 209FU |
| BHMA Certification | Grade 1 |
| Length | 18 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 225 lbs. |
| Drainboard Length | 18 in. |
| Minimum Cabinet Depth | 18 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | Yes |
| Extension Type | Full Extension |
| Soft Close | No |
| Mounting Type | Side Mount |
| Cabinet Type | Panel (Frameless) |
| Detent | Yes |
| Disconnect Style | Lever |
| Push to Open | No |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Color | Zinc |
