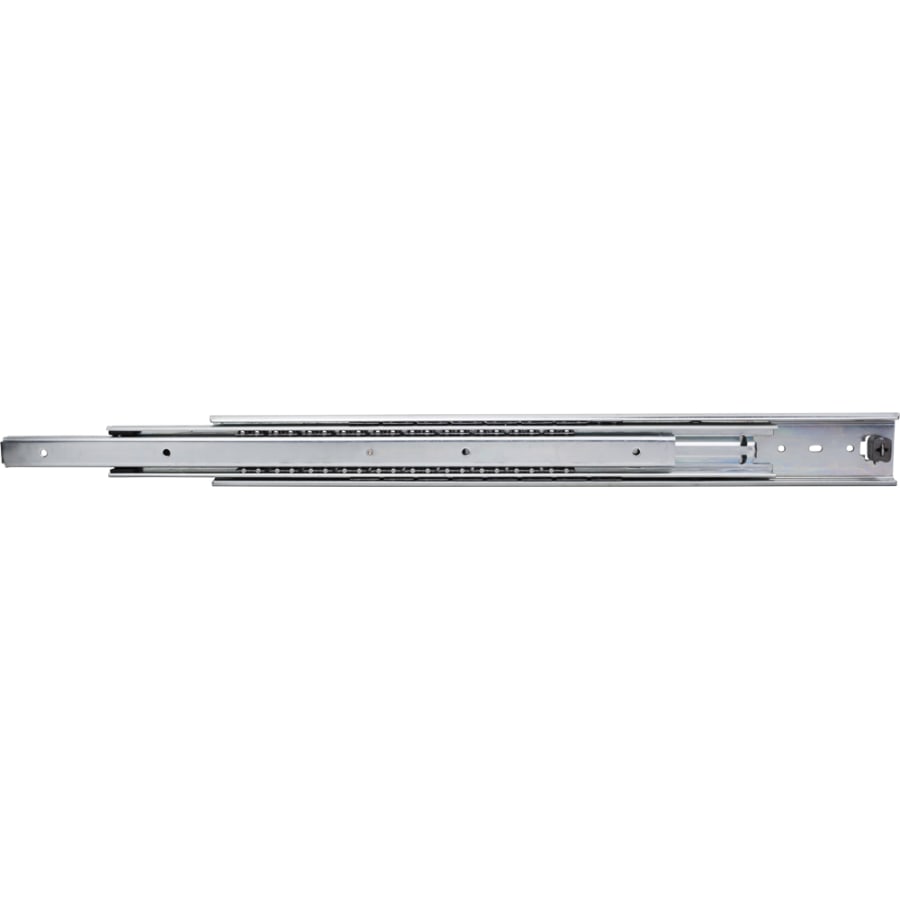

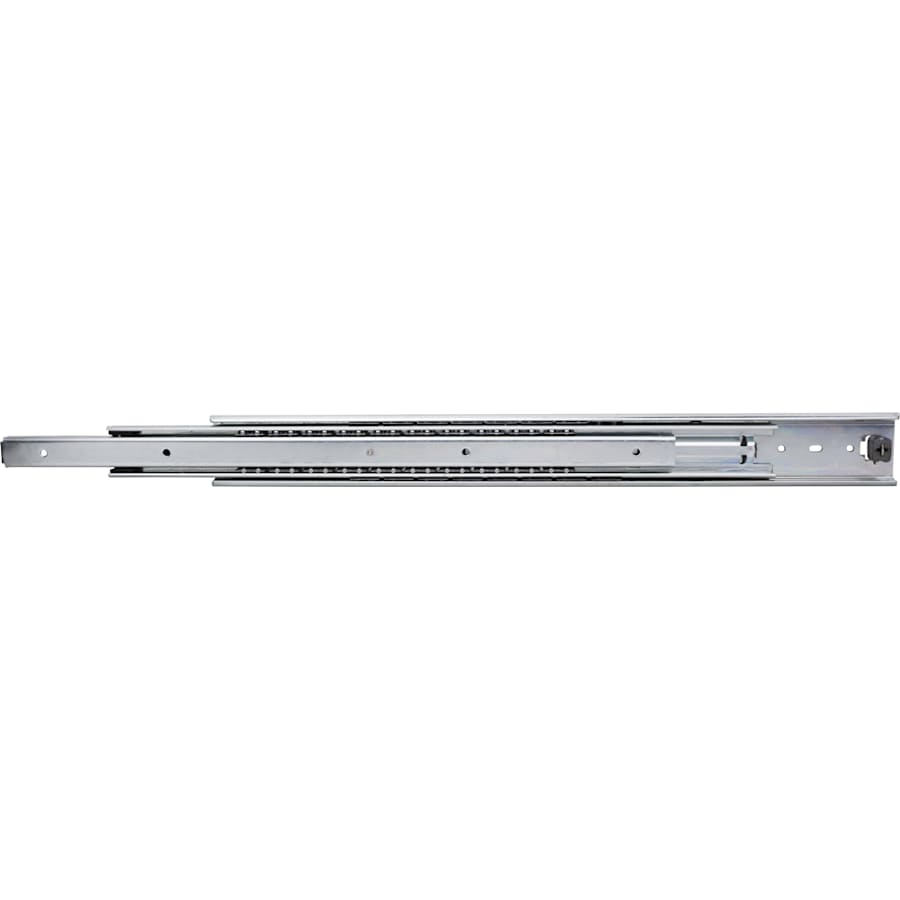

Features:
Drawer slides are grade 1 ANSI/BHMA certified with 225 lb dynamic weight rating
Mounts to the side of the drawer for stability and strength
Provides easy access to drawer with 1″ over travel slides
Non-handed trigger disconnect allows easy and quick removal of the drawer from the cabinet
Synthetic rubber hold-in detent prevents bounce back and roll out
Lubricated steel ball bearings
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Complete pair
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
Drawer Length: 26″
Slide Length: 26″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 225 lbs
Minimum Cabinet Depth: 26″
Material: Steel
Quantity: 2
Product Variations:
209FU16: 16 Inch Over travel Drawer Slides
209FU18: 18 Inch Over travel Drawer Slides
209FU20: 20 Inch Over travel Drawer Slides
209FU22: 22 Inch Over travel Drawer Slides
209FU24: 24 Inch Over travel Drawer Slides
209FU26 (This Model): 26 Inch Over travel Drawer Slides
209FU28: 28 Inch Over travel Drawer Slides
209FU30: 30 Inch Over travel Drawer Slides
Â
Elements: guides, drawer slides, drawer guides, drawer glides, ball bearing slides, commercial drawer slides, commercial drawer guides
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 209FU Collection
Specifications
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | Yes |
| Extension Type | Full Extension |
| Soft Close | No |
| Cabinet Type | Panel (Frameless) |
| Detent | Yes |
| Disconnect Style | Lever |
| Push to Open | No |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Length | 26 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 225 lbs. |
| Drainboard Length | 26 in. |
| Minimum Cabinet Depth | 26 in. |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Series | 209FU |
| BHMA Certification | Grade 1 |
| Color | Zinc |
| Color Tone | Greys |
