Features:

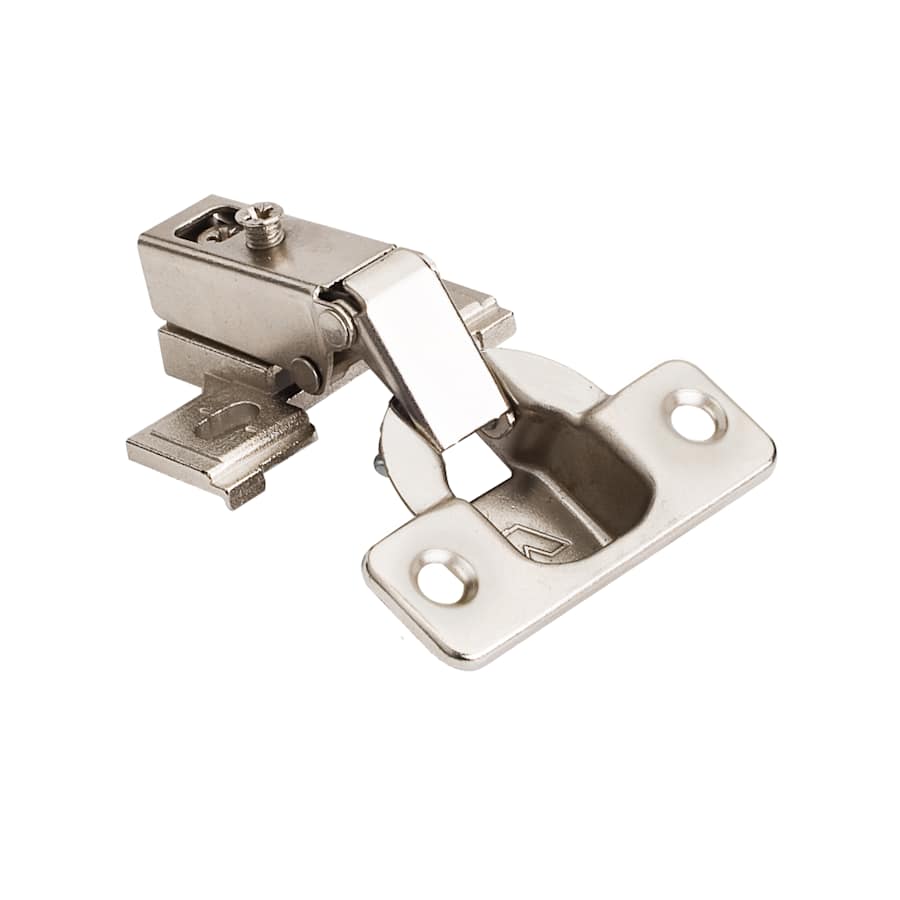

Includes one (1) overlay cabinet hinge
Heavy duty steel construction adds durability and a long lifespan
Die cast face frame plate securely grasps the frame and provides 2 attachment points
6 way adjustable compact assembly
Vertical screw adjustment
Horizontal and depth cam adjustment
Dual pivot point – brings the door closer to the cabinet – reducing door gap
Designed for a 125 degree opening angle
Grade 2 ANSI / BHMA certified to ANSI 50,000 cycles
Mounting hardware is not included with this product – requires #6 x 5/8″ pan washer head screw (6X258017Q)
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
1/2 Inch Overlay: A 1/2″ overlay hinge is needed when the cabinet door you are mounting covers 1/2″ of the cabinet wall. 1/2″ overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.
Specifications:
Bore Distance: 3 mm
Hinge Mount: 1/2 Inch Overlay
Opening Angle: 125°
Material: Steel
Installation Type: Screw
Quantity: 1
Quantity: 1
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 22855 Collection
Specifications
| Material | Steel |
| Insulation Type | Screw |
| Adjustable | Yes |
| Cabinet Type | Face Frame |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Hinge Type | Concealed Euro |
| 3-Way Adjustable | Yes |
| Adjustable Height | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | 22855 |
| BHMA Certification | Grade 1 |
| Quantity | 1 |
| Opening Angle | 125 |
| Overlay | 1/2 Inch |
| Bottom Diameter | 3 mm |
| Color | Chrome |
| Color Tone | Silver Tones |
