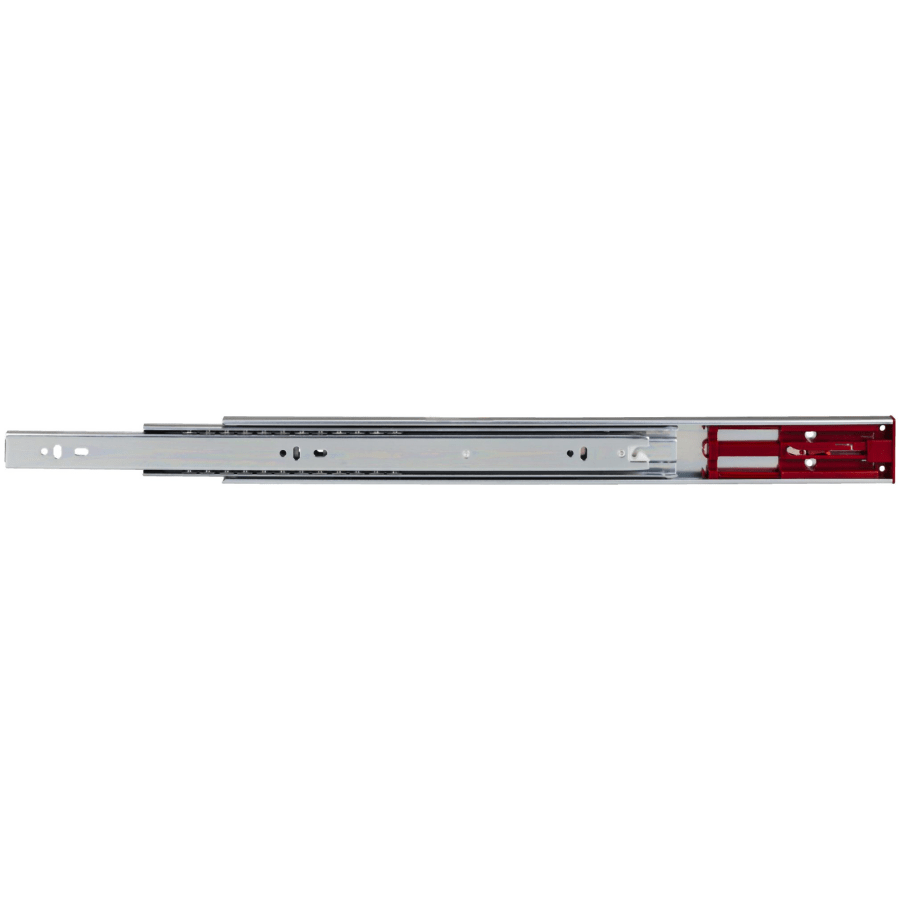

Features:
Designed to support up to 100 pounds of weight
Mounts to the sides of the drawer
Provides easy access to the drawer with full extension slides
Features Push-to-Open designed for a clean modern look or where decorative hardware is not desired
Constructed from cold rolled steel for quality, reliability, durability, and strength
Includes limited lifetime manufacturer warranty
#8 x 7/16″ truss head screw or 6.3 mm Euro screw recommended for installation
Specifications:
Length: 20″
Weight Capacity: 100 lbs.
Quantity: 2
Extension Type: Full Extension
Material: Steel
Slide Type: Ball Bearing
BHMA Certification: Grade 1
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 303-200 Collection
Specifications
| Length | 20 in. |
| Nominal Length | 20 in. |
| Product Weight | 2.75 lbs. |
| Height | 1.772 in. |
| Extension | 20 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 20 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Extension Type | Full Extension |
| Soft Close | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Push to Open | Yes |
| Self Closing | No |
| Detent | Yes |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Approved for Commercial Use | No |
| Collection | 303-200 Series |
| Manufacturer Warranty | Limited Lifetime |
| Series | 303-200 Series |
| BHMA Certification | Grade 1 |
| Color | Zinc |
