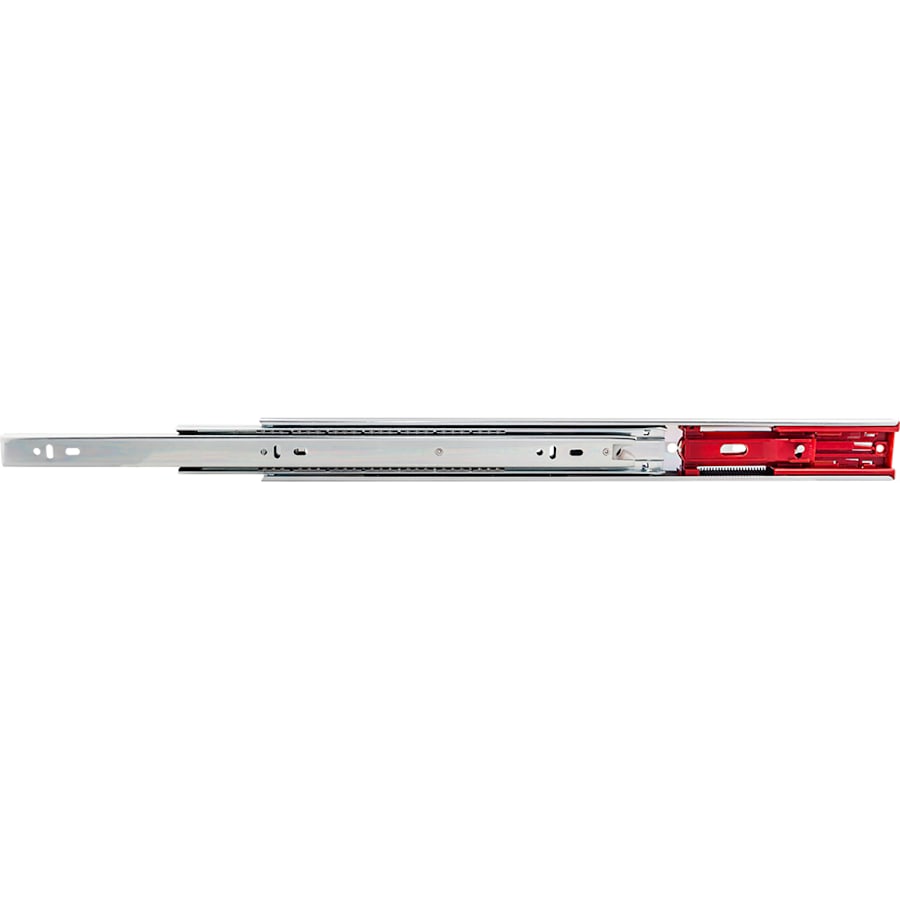

Features:
Drawer slides are rated for 90 pounds at full extension
Mounts to the side of the drawer for stability and strength
Provides easy access to drawer with EZ open full extension slides
Lever disconnect allows easy and quick removal of the drawer from the cabinet members
Designed to be installed in either panel or face frame cabinets
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
Soft Close: Whether large or small, heavy or light, soft closing action keeps drawers from slamming closed. It adapts to various closing speeds and features overload safety to protect the system from damage over time.
Specifications:
Drawer Length: 28″
Slide Length: 28″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 90 lbs
Minimum Cabinet Depth: 28″
Material: Steel
Quantity: Pair
Product Variations:
303-300-10: 10 Inch Drawer Slide
303-300-12: 12 Inch Drawer Slide
303-300-14: 14 Inch Drawer Slide
303-300-16: 16 Inch Drawer Slide
303-300-18: 18 Inch Drawer Slide
303-300-20: 20 Inch Drawer Slide
303-300-22: 22 Inch Drawer Slide
303-300-24: 24 Inch Drawer Slide
303-300-26: 26 Inch Drawer Slide
303-300-28 (This Model): 28 Inch Drawer Slide
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 300 Collection
Specifications
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Push to Open | No |
| Self Closing | No |
| Soft Close | Yes |
| Extension Type | Full Extension |
| Detent | No |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | 300 |
| BHMA Certification | Grade 1 |
| Length | 28 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 90 lbs. |
| Drainboard Length | 28 in. |
| Minimum Cabinet Depth | 28 in. |
| Color | Zinc |
| Color Tone | Greys |
