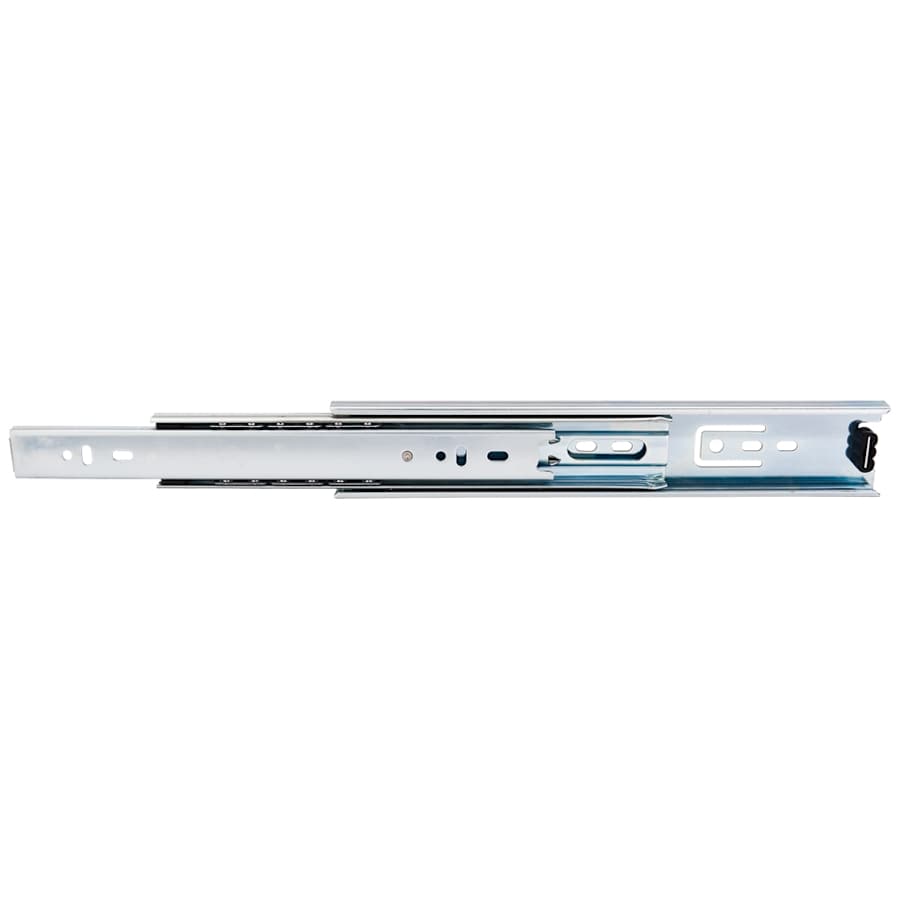

Features:
Grade 1 ANSI/BHMA certified
Designed to support up to 100 pounds of weight
Constructed of cold rolled steel
Mounts to the side of the drawer
Lubricated steel ball bearings with cage hold forward
Synthetic rubber hold-in detent prevents bounce back and roll out
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system – (non handed)
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Screws are not included (Truss head: 7/16″ (8) OR 6.3 mm Euro Screw)
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 22-1/2″
Slide Length: 22″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Product Variations:
303-50-12: 12 Inch Drawer Slide
303-50-14: 14 Inch Drawer Slide
303-50-16: 16 Inch Drawer Slide
303-50-18: 18 Inch Drawer Slide
303-50-20: 20 Inch Drawer Slide
303-50-22 (This Model): 22 Inch Drawer Slide
303-50-24: 24 Inch Drawer Slide
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 303 Collection
Specifications
| Height | 1.772 in. |
| Length | 22 in. |
| Nominal Length | 22 in. |
| Product Weight | 2.919 lbs. |
| Quantity | 2 |
| Extension | 22 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 22.5 in. |
| Minimum Cabinet Depth | 22 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | Yes |
| Extension Type | Full Extension |
| Soft Close | No |
| Cabinet Type | Panel (Frameless), Face Frame |
| Self Closing | No |
| Push to Open | No |
| Detent | Yes |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Collection | 303FU |
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Series | 303 |
| BHMA Certification | Grade 1 |
| Color | Zinc |
| Color Tone | Greys |
