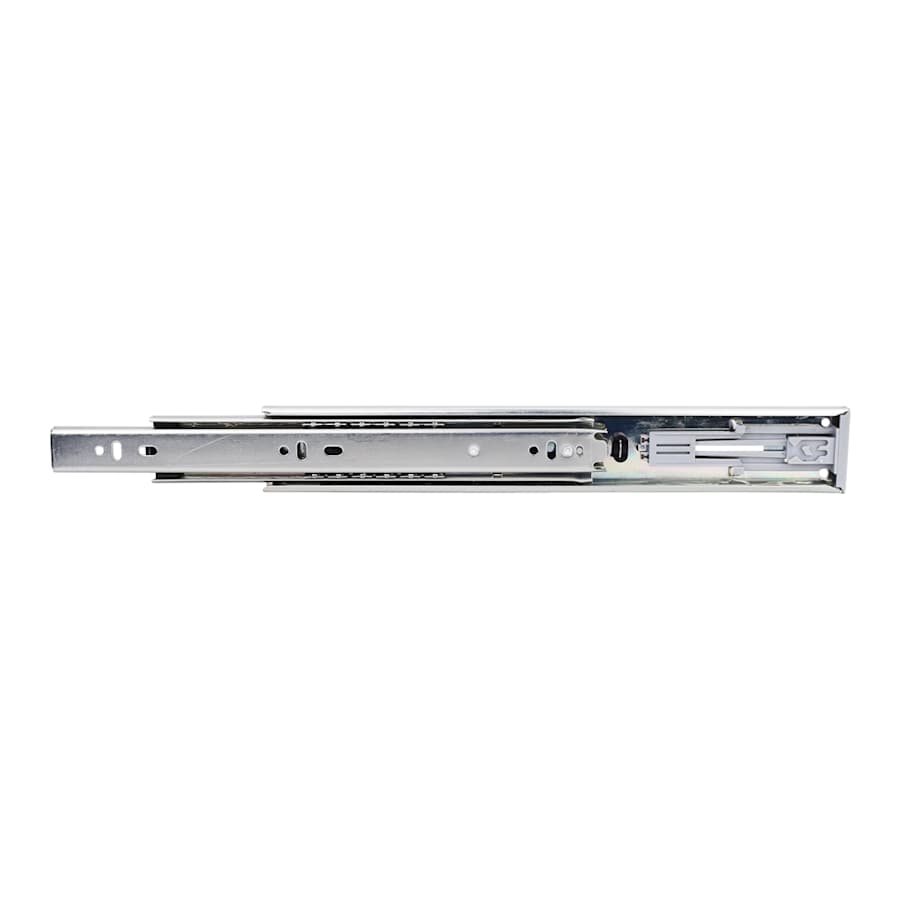

Features:
Drawer slides are rated for 100 pounds at full extension
Mounts to the side of the drawer for stability and strength
Provides easy access to drawer with full extension slides
Lever disconnect allows easy and quick removal of the drawer from the cabinet members
Designed to be installed on panel frameless cabinets
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
Drawer Length: 24″
Slide Length: 24″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Minimum Cabinet Depth: 24″
Material: Steel
Quantity: 2
Product Variations:
303FU10-R: 10 Inch Drawer Slide
303FU12-R: 12 Inch Drawer Slide
303FU14-R: 14 Inch Drawer Slide
303FU16-R: 16 Inch Drawer Slide
303FU18-R: 18 Inch Drawer Slide
303FU20-R: 20 Inch Drawer Slide
303FU22-R: 22 Inch Drawer Slide
303FU24-R (This Model): 24 Inch Drawer Slide
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 303FU Collection
Specifications
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | Yes |
| Cabinet Type | Panel (Frameless) |
| Self Closing | No |
| Soft Close | No |
| Extension Type | Full Extension |
| Detent | Yes |
| Disconnect Style | Lever |
| Push to Open | No |
| Slide Type | Ball Bearing |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | 303FU |
| BHMA Certification | Grade 1 |
| Length | 24 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 24 in. |
| Minimum Cabinet Depth | 24 in. |
| Color | Zinc |
| Color Tone | Greys |
