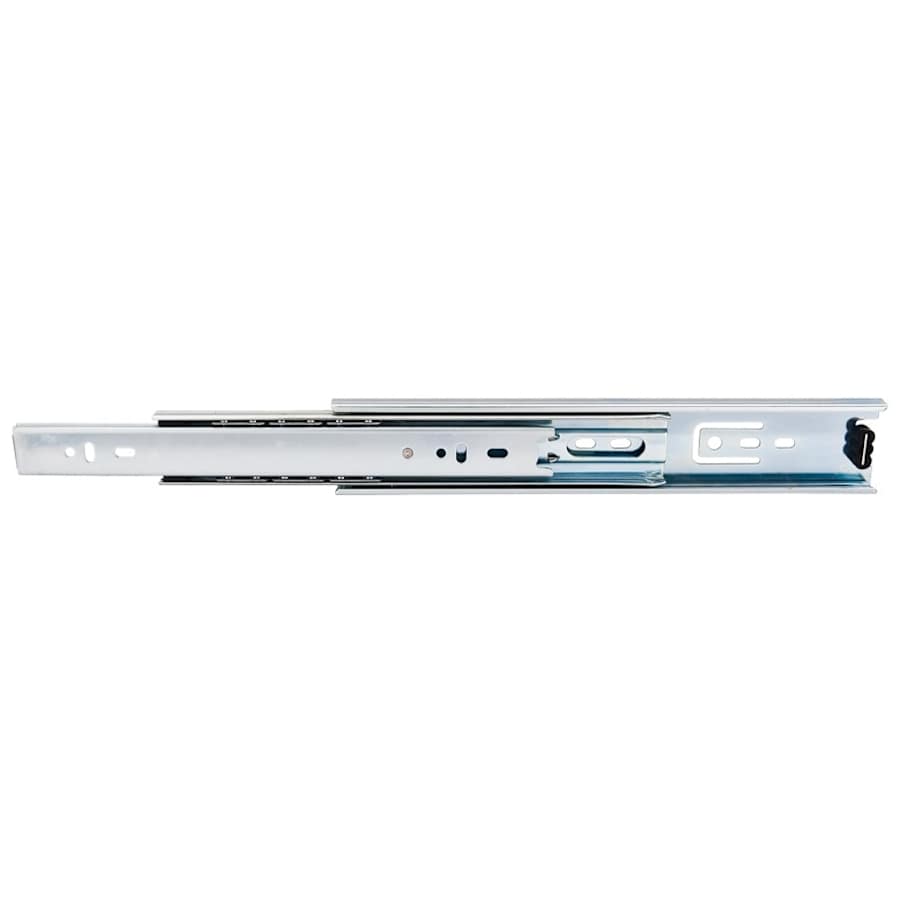

Features:
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 28-1/2″
Slide Length: 28″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Product Variations:
303FU10: 10 Inch Drawer Slide
303FU12: 12 Inch Drawer Slide
303FU14: 14 Inch Drawer Slide
303FU16: 16 Inch Drawer Slide
301FU18: 18 Inch Drawer Slide
303FU20: 20 Inch Drawer Slide
303FU22: 22 Inch Drawer Slide
303FU24: 24 Inch Drawer Slide
303FU26: 26 Inch Drawer Slide
303FU28 (This Model): 28 Inch Drawer Slide
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 303FU Collection
Specifications
| Approved for Commercial Use | No |
| Collection | 303FU |
| Manufacturer Warranty | Limited Lifetime |
| Series | 303FU |
| BHMA Certification | Grade 1 |
| Height | 1.772 in. |
| Length | 28 in. |
| Nominal Length | 28 in. |
| Product Weight | 4.1067 lbs. |
| Quantity | 2 |
| Extension | 28 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 28.5 in. |
| Minimum Cabinet Depth | 28 in. |
| Insulation Type | Side Mount |
| Material | Steel |
| Mounting Type | Side Mount |
| Adjustable | Yes |
| Cabinet Type | Panel (Frameless), Face Frame |
| Extension Type | Full Extension |
| Soft Close | No |
| Push to Open | No |
| Self Closing | No |
| Detent | Yes |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Color | Zinc |
| Color Tone | Greys |
