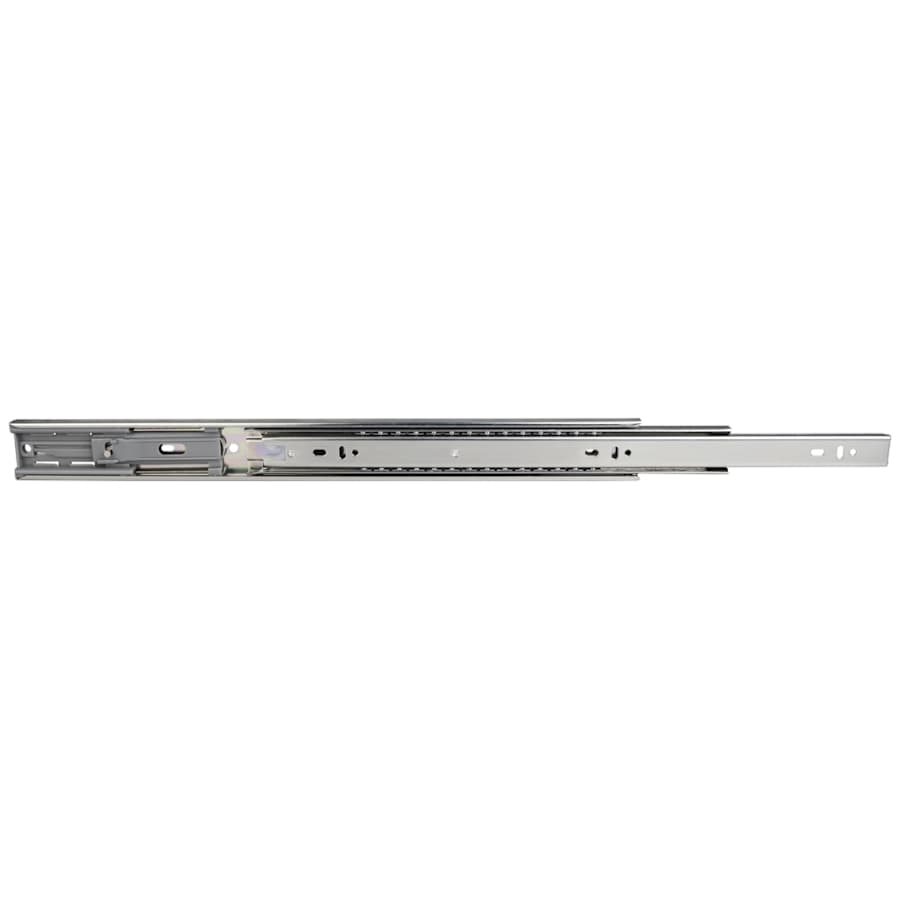

Features:
Provides easy access to the all the contents of your with full extension drawer slides
Mounts to the side of the drawer for the ultimate stability and strength while pulling the drawer out
Outstanding weight capacity that is rated at 100 pounds
Use the non-handed triggers to easily and quickly remove the drawer from the cabinet members
Designed for installing in either panel (frameless) or face frame cabinets
Includes a full pair of drawer slides for installation right out of the box
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Recommended hardware (not included) – 6.3mm Euro screw / or #8 x 7/16″ truss head screw
Specifications:
Length: 18″
Drawer Length: 18″
Side spacing: 1/2″
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Minimum Cabinet Depth: 18
BHMA Certification: Grade 1
Extension Type: Full Extension
Mounting Type: Side Mount
Cabinet Type: Face Frame or Panel
Installation Type: Screw
Adjustable: Yes
Material: Steel
Quantity: 2
Product Variations:
303FUSFT12: 12″ Drawer Slides
303FUSFT14: 14″ Drawer Slides
303FUSFT16: 16″ Drawer Slides
303FUSFT18 (This Model): 18″ Drawer Slides
303FUSFT20: 20″ Drawer Slides
303FUSFT22: 22″ Drawer Slides
303FUSFT24: 24″ Drawer Slides
303FUSFT26: 26″ Drawer Slides
303FUSFT28: 28″ Drawer Slides
Â
Â
Elements: drawer guides, drawer slides, drawer runners
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 303FUSFT Collection
Specifications
| Height | 1.772 in. |
| Length | 18 in. |
| Nominal Length | 18 in. |
| Product Weight | 2.5916 lbs. |
| Extension | 18 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 18 in. |
| Minimum Cabinet Depth | 18 in. |
| Collection | 303FUSFT |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| BHMA Certification | Grade 1 |
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | Yes |
| Extension Type | Full Extension |
| Soft Close | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Detent | No |
| Disconnect Style | Lever |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Color | Zinc |
| Color Tone | Greys |
