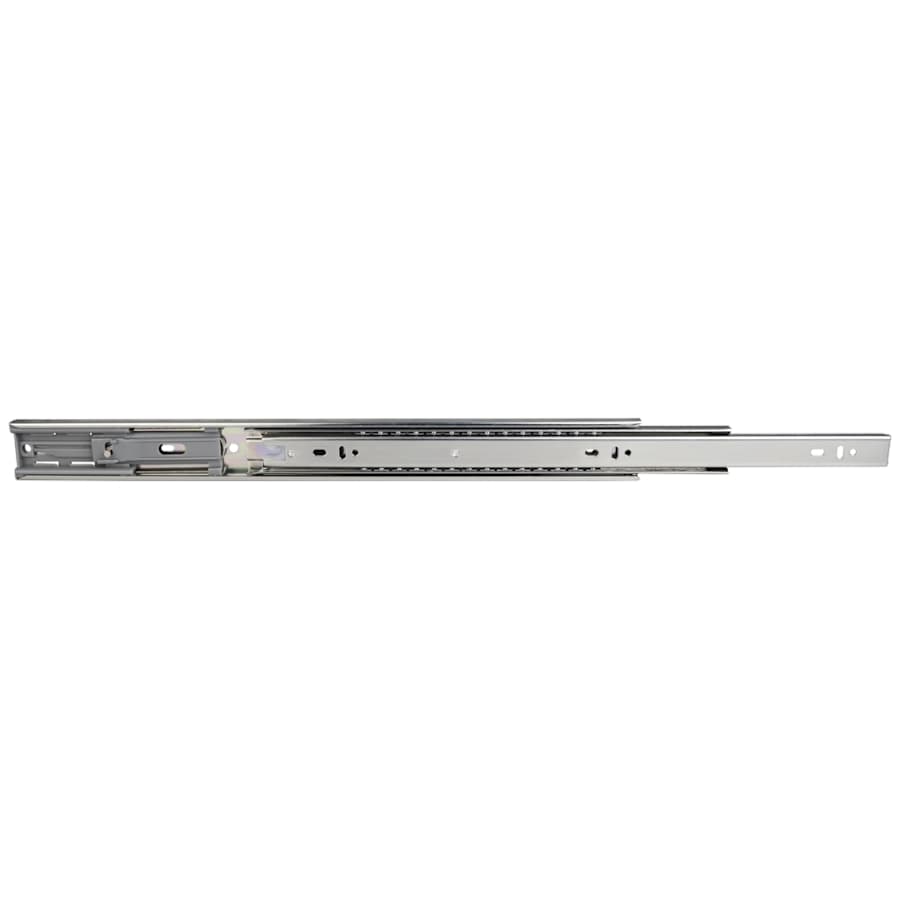

Features:
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:
Soft Close: Whether large or small, heavy or light, soft closing action keeps drawers from slamming closed. It adapts to various closing speeds and features overload safety to protect the system from damage over time.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 20-1/2″
Slide Length: 20″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Product Variations:
303FUSFT12: 12 Inch Drawer Slide
303FUSFT14: 14 Inch Drawer Slide
303FUSFT16: 16 Inch Drawer Slide
303FUSFT20 (This Model): 20 Inch Drawer Slide
303FUSFT22: 22 Inch Drawer Slide
303FUSFT26: 26 Inch Drawer Slide
303FUSFT28: 28 Inch Drawer Slide
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 303FUSFT Collection
Specifications
| Height | 1.772 in. |
| Length | 20 in. |
| Nominal Length | 20 in. |
| Product Weight | 2.8688 lbs. |
| Extension | 20 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 100 lbs. |
| Minimum Cabinet Depth | 20 in. |
| Drainboard Length | 20.5 in. |
| Collection | 303FUSFT |
| Approved for Commercial Use | No |
| Series | 303FUSFT |
| Manufacturer Warranty | Limited Lifetime |
| BHMA Certification | Grade 1 |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | Yes |
| Cabinet Type | Panel (Frameless), Face Frame |
| Push to Open | No |
| Self Closing | No |
| Soft Close | Yes |
| Extension Type | Full Extension |
| Detent | No |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Color | Zinc |
| Color Tone | Greys |
