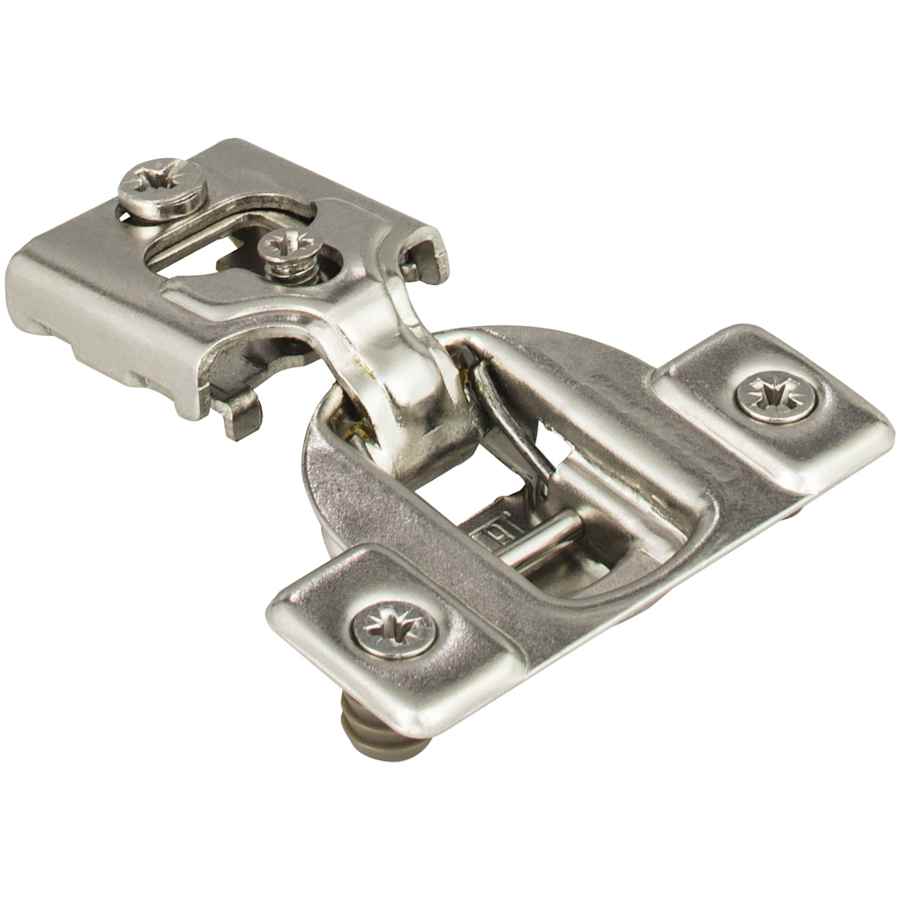

Features:
Includes single hinge in each order
Constructed from cold rolled steel for quality, reliability, durability, and strength
Can be opened to a maximum angle of 105 degrees and comes with a 1/2 inch overlay
Prevents slamming and preserves the life of the cabinet and its finish via the Self-Close feature
#7 x 5/8″ pan washer head screw (7X0580WCQ) recommended
Specifications:
Cup Depth: 1/2″
Cup Diameter: 1-3/8″
Mount Centers: 1-3/4″
Opening Angle: 105 Degrees
Hinge Mount: Overlay
Adjustable Depth: Yes
Adjustable Height: Yes
Adjustable Side to Side: Yes
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 3390 Collection
Specifications
Warranty and Product Information
| Approved for Commercial Use | No |
| Collection | 3390 Series |
| Manufacturer Warranty | Limited Lifetime |
| Series | 3390 Series |
Included Components
| Installation Hardware Included | No |
Characteristics and Features
| Insulation Type | Screw |
| Material | Steel |
| Self Closing | Yes |
| Hinge Type | Concealed Euro |
| Bulk Pack | No |
| Soft Close | No |
| Cabinet Type | Face Frame |
| Adjustable Height | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
Dimensions and Measurements
| Product Weight | 0.25 lbs. |
| Quantity | 1 |
| Opening Angle | 105 |
| Cup Depth | 0.492 in. |
| Cup Depth mm | 12.5 mm |
| Cup Diameter | 1.378 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.772 in. |
| Mount Centers mm | 45 mm |
| Overlay | 1/2 Inch |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
