Features:

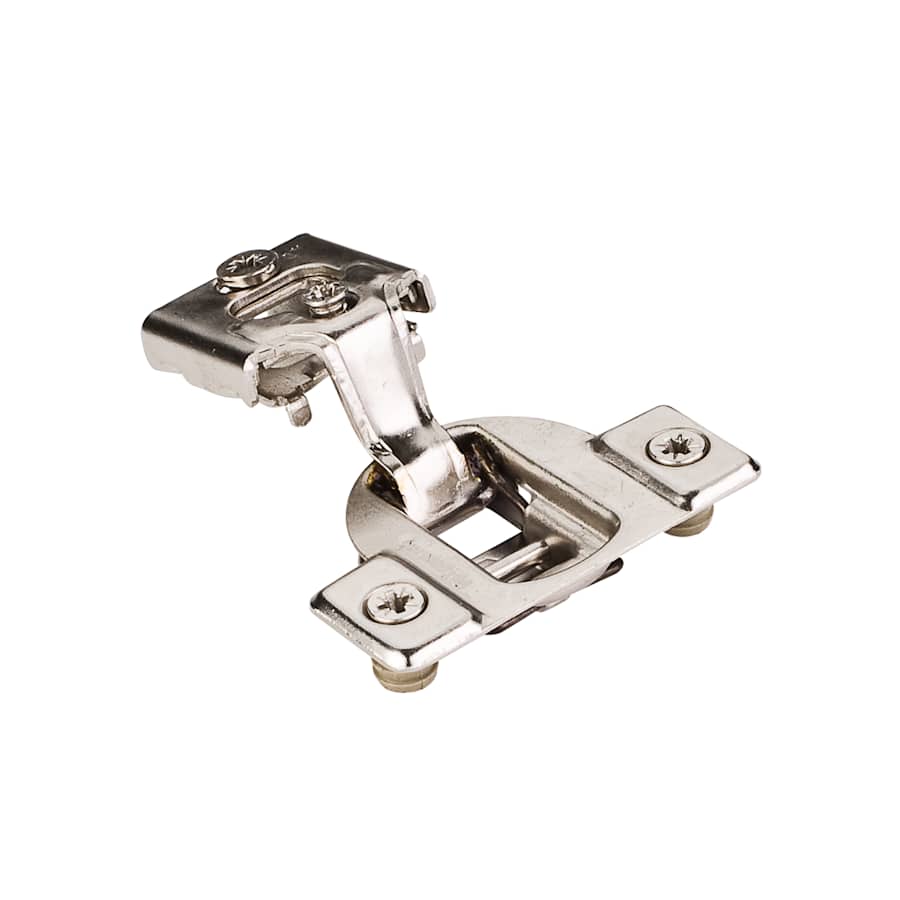

Includes one (1) overlay cabinet hinge
Heavy duty steel construction adds durability and a long lifespan
Designed for a 105 degree opening angle
Mounting hardware is not included with this product
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
1 Inch Overlay: A 1″ overlay hinge is needed when the cabinet door you are mounting covers 1″ of the cabinet wall. Typically this will leave the cabinet door hanging significantly over the outside edge of the cabinet frame. 1″ overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed
Specifications:
Bore Distance: 3 mm
Hinge Mount: 1 Inch Overlay
Opening Angle: 105°
Material: Steel
Installation Type: Screw
Quantity: 1
Quantity: 1
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 3390 Collection
Specifications
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| BHMA Certification | Grade 1 |
| Series | 3390 |
| Insulation Type | Screw Expanding Dowel |
| Material | Steel |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Face Frame |
| Hinge Type | Concealed Euro |
| Self Closing | Yes |
| Adjustable | Yes |
| Quantity | 1 |
| Bottom Diameter | 3 mm |
| Opening Angle | 105 |
| Overlay | 1 Inch |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
