Features:

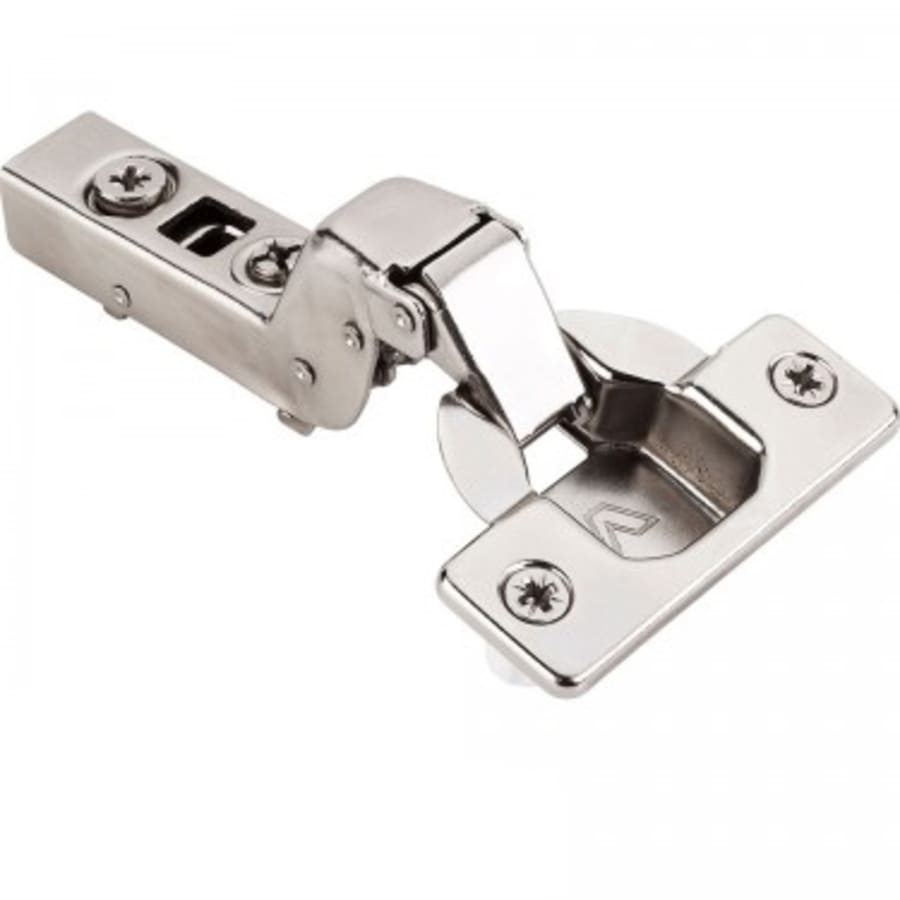

Includes one (1) inset cabinet hinge
Heavy duty steel construction adds durability and a long lifespan
Built in soft close technology to prevent cabinet from slamming
Designed for a 110 degree opening angle
Mounting hardware is not included with this product
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
Inset: An inset hinge is needed when the cabinet door sits inside the cabinet frame. Used with eight face-frame or panel cabinets where having a door flush with the frame is ideal.
Specifications:
Bore Distance: 5.5 mm
Hinge Mount: Full Inset
Opening Angle: 110°
Material: Steel
Installation Type: Screw
Soft Close: Yes
Quantity: 1
Quantity: 1
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 700 Collection
Specifications
| Material | Steel |
| Insulation Type | Clip On |
| 3-Way Adjustable | Yes |
| Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Arm Type | Full Cranked |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Hinge Type | Concealed Euro |
| Soft Close | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | 700 |
| BHMA Certification | Grade 2 |
| Quantity | 1 |
| Bottom Diameter | 5.5 mm |
| Opening Angle | 110 |
| Inset | Full |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
