Features:

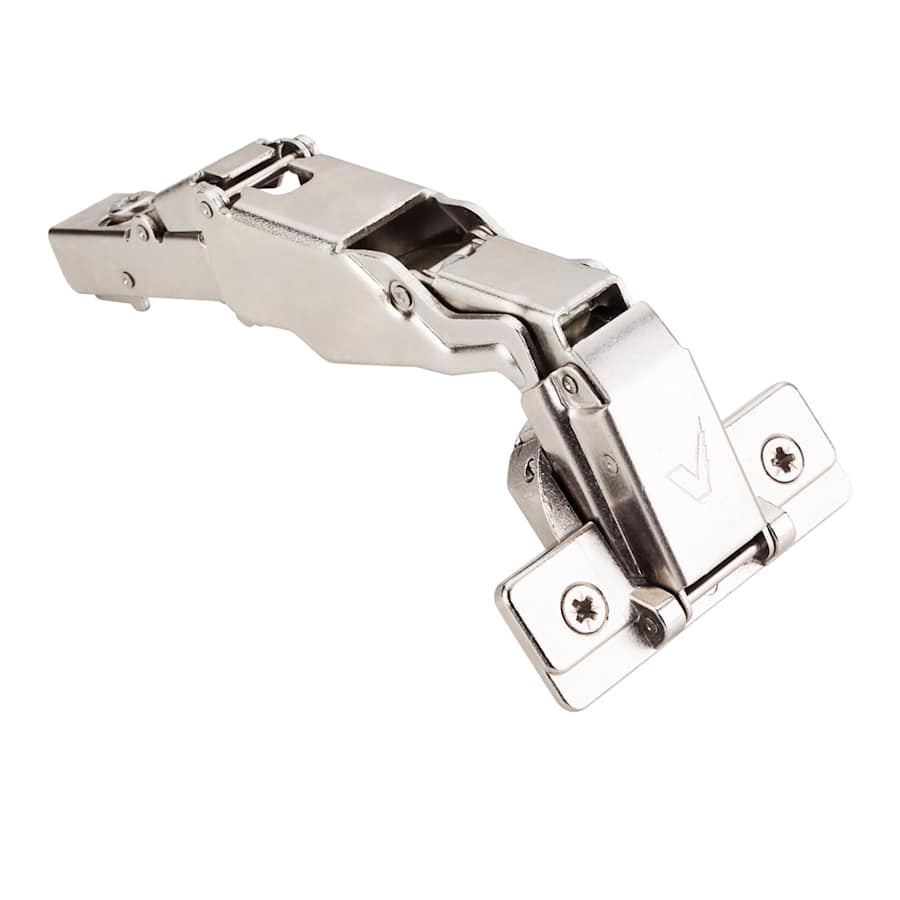

Includes one (1) overlay cabinet hinge
Heavy duty steel construction adds durability and a long lifespan
Designed for a 165 degree opening angle
Mounting hardware is not included with this product
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
Overlay: An overlay hinge is needed when the cabinet door you are mounting overlays the cabinet frame itself. Overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.
Specifications:
Bore Distance: 14 mm
Hinge Mount: Full Overlay
Opening Angle: 165°
Material: Steel
Installation Type: Screw
Soft Close: Yes
Quantity: 1
Quantity: 1
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources 725 Collection
Specifications
| Approved for Commercial Use | No |
| Series | 725 |
| BHMA Certification | Grade 2 |
| Manufacturer Warranty | Limited Lifetime |
| Material | Steel |
| Insulation Type | Clip On |
| Hinge Type | Concealed Euro |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | Yes |
| Soft Close | Yes |
| Adjustable | Yes |
| Quantity | 1 |
| Bottom Diameter | 14 mm |
| Opening Angle | 165 |
| Overlay | Full |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
Reviews
There are no reviews yet.
