Features:

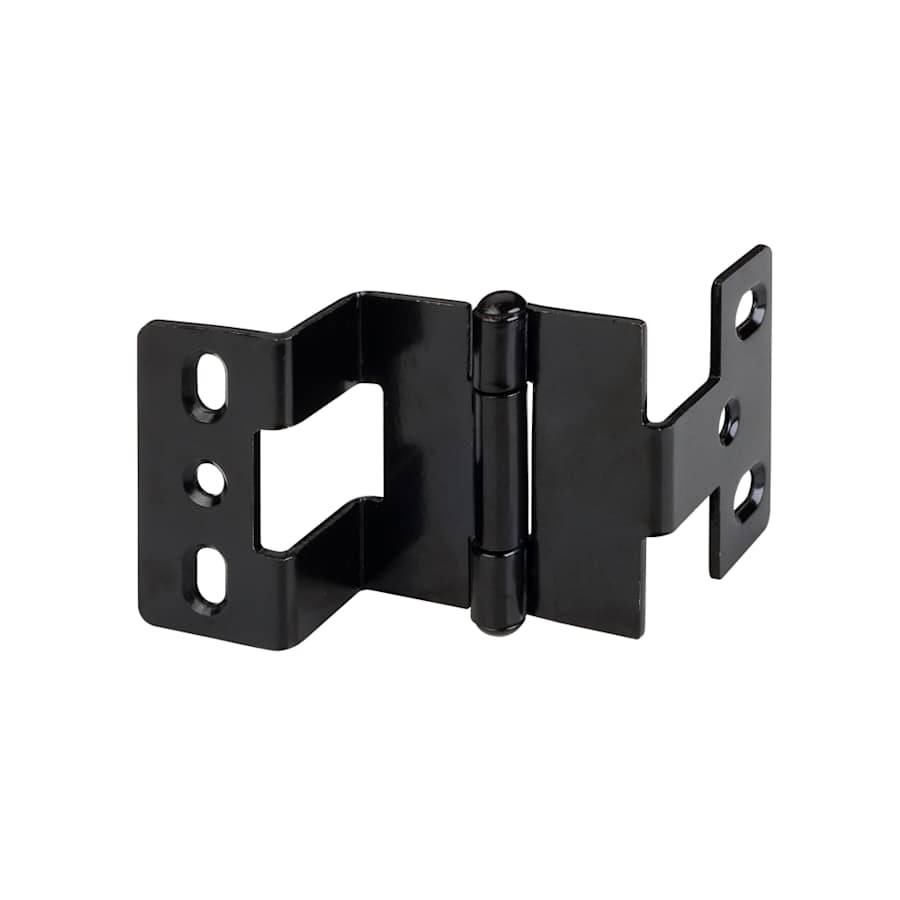

Includes one (1) 3 knuckle 3/4″ overlay hinge
Heavy duty steel construction adds durability and a long lifespan
Designed for a 270 degree opening angle
32mm system hole pattern
2-5/16″ overall height
Mounting hardware is not included with this product
All Hardware Resources cabinet hardware comes with a limited lifetime warranty
Product Technologies:
3/4 Inch Overlay: A 3/4″ overlay hinge is needed when the cabinet door you are mounting leaves 3/4″ of the cabinet wall exposed. 3/4″ overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.
Specifications:
Hinge Height: 2-5/16″
Hinge Mount: 3/4 Inch Overlay
Opening Angle: 270°
Material: Steel
Mount Type: Screw-In
Quantity: 1
Quantity: 1
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Specifications
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Insulation Type | Screw |
| Material | Steel |
| 3-Way Adjustable | No |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Hinge Type | Wrap |
| Number Of Hooks | 6 |
| Number of Knuckles | 3 |
| Adjustable | Yes |
| Quantity | 1 |
| Door Thickness | 3/4" |
| Opening Angle | 270 |
| Overlay | 3/4 Inch |
| Hinge Height | 2.3125 in. |
| Color | Black, Bright Nickel |
| Color Tone | Blacks, Nickel Tones |
