Features:
Designed to support up to 100 pounds of weight
Provides easy access to the drawer with full extension slides
Lever allows for quick and easy removal of the drawer from the cabinet members
Intended for use in face frame and panel (frameless) cabinets
Covered by Hardware Resources’ limited lifetime manufacturer warranty
Product Technologies:
Full Extension Slides: Full extension slides allow for the drawer or pull-out system to be pulled open to the full length of the slide. Full extension slides provide greater access to the contents of the drawer or pull-out system.
Soft Close: Whether large or small, heavy or light, soft-closing action keeps drawers from slamming closed. It adapts to various closing speeds and features overload safety to protect the system from damage over time.

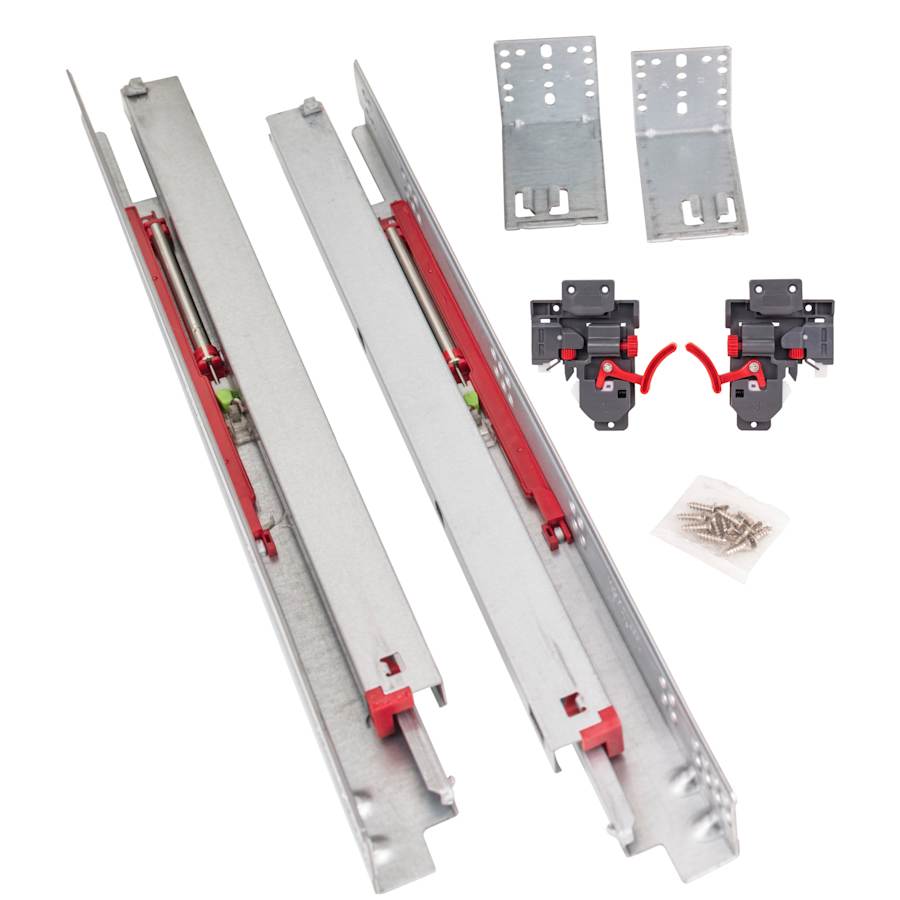

Includes:
Two (2) drawer slides
Two (2) clips
Two (2) rear clips
Installation screws
Specifications:
Drawer Length: 13-1/2″
Slide Length: 12-1/2″
Extension Type: Full Extension
Slide Type: Concealed
Weight Capacity: 100 lbs.
Material: Steel
ANSI/BHMA Certification: Grade 1
Quantity: 2
Additional Hardware Resources Links
View the Manufacturer Warranty
Browse all Hardware Resources Products
Hardware Resources UMS – USE58 Series Collection
Specifications
| Width | 1.88 in. |
| Height | 1.78 in. |
| Length | 12.5 in. |
| Nominal Length | 13 in. |
| Quantity | 2 |
| Extension | 12.5 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 13.5 in. |
| Material | Steel |
| Insulation Type | Undermount |
| Adjustable | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Soft Close | Yes |
| Extension Type | Full Extension |
| Disconnect Style | Lever |
| Slide Type | Concealed |
| Collection | UMS - USE58 |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI |
| ANSI Certification | A156.9 |
| Series | UMS - USE58 Series |
| BHMA Certification | Grade 1 |
| Color | Zinc |
