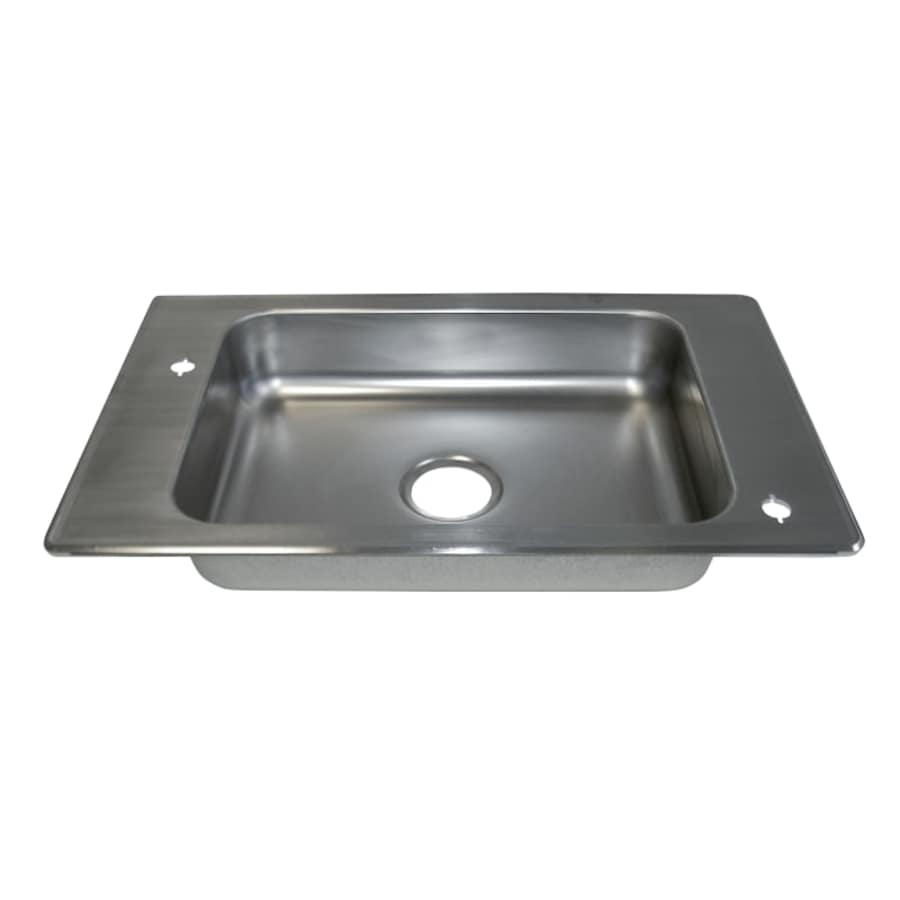

Haws 4230 Features:
Covered under Haws’s 1 year limited warranty
Stainless steel construction for solid reliability
Drop in sink design with mounting rim
Center drain location provides optimal drainage capability
Installation hardware included
Qualifies for the Buy American Act
Haws 4230 Specifications:
Height: 7″ (measured from the bottom of sink to the top of the rim)
Width: 31″ (measured from the back outer rim to the front outer rim)
Length: 20″ (measured from the left outer rim to the right outer rim)
Basin Depth (from deepest part of basin to top of rim): 5″
Drain Connection Size: 1-1/2″
Additional Haws Links
Browse all Haws Products
Specifications
Characteristics and Features
| Material | Stainless Steel |
| Thermostat | Traditional |
| Drain Placement | Center |
| Faucet Holes | 2 |
| Insulation Type | Drop In |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| Sink Shape | Rectangular |
| Sound Dampening | No |
Warranty and Product Information
| Commercial Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Certifications | ANSI |
| Outdoor Approved | No |
| Lead Leaching Certified NSF/ANSI 61 | Yes |
| Made in America | Yes |
Dimensions and Measurements
| Height | 5 in. |
| Width | 19.5 in. |
| Length | 31 in. |
| Backplate Depth | 5 in. |
| Bar Length | 22 in. |
| Base Width | 16 in. |
| Faucet Centers | 0 in. |
| Nominal Length | 31 in. |
| Drain Connection | 1.5 in. |
| Nominal Width | 20 in. |
| Faucet Hole Size | 1.125 in. |
| Outside Diameter | 1.5 in. |
| Gauge | 18 |
| Minimum Cabinet Size | 30.625 in. |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
