Haws Eye Wash Emergency Mixing Valve

Eye Wash Emergency Mixing Valve

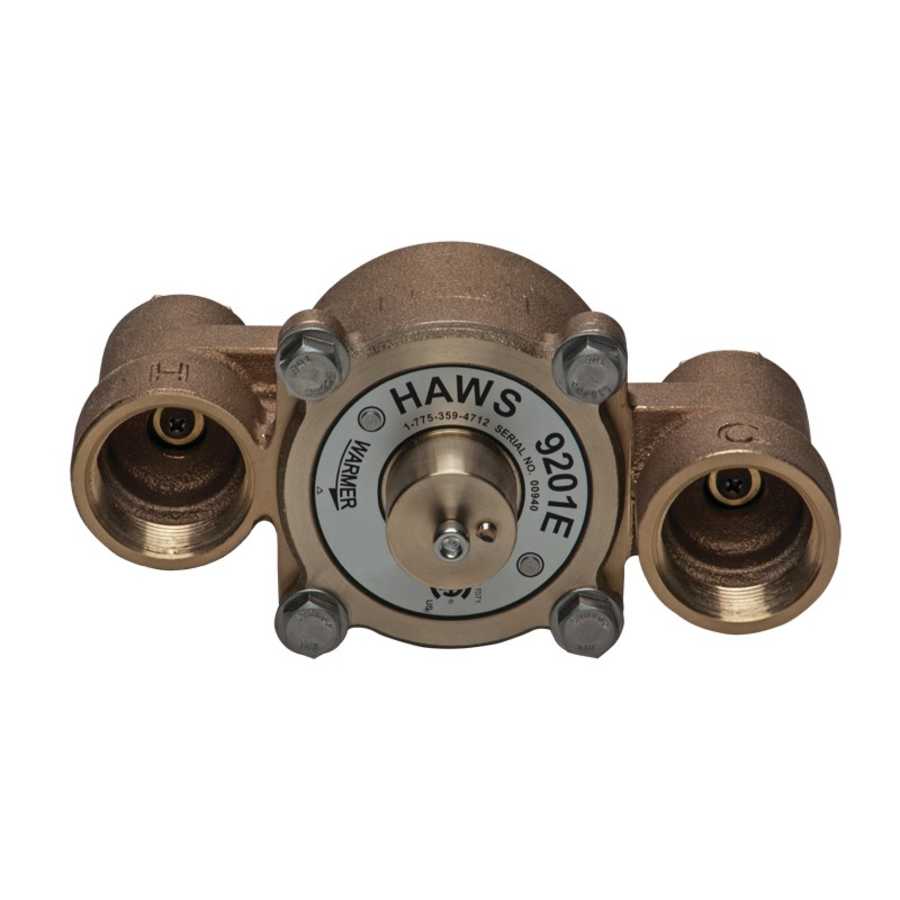

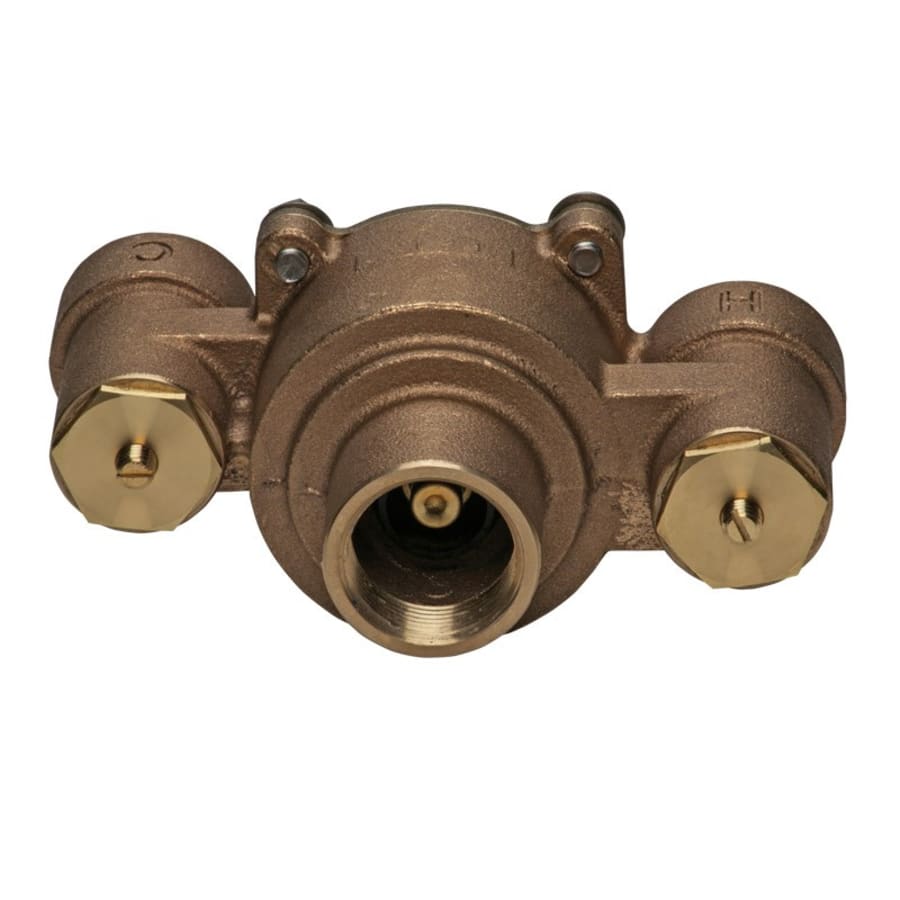

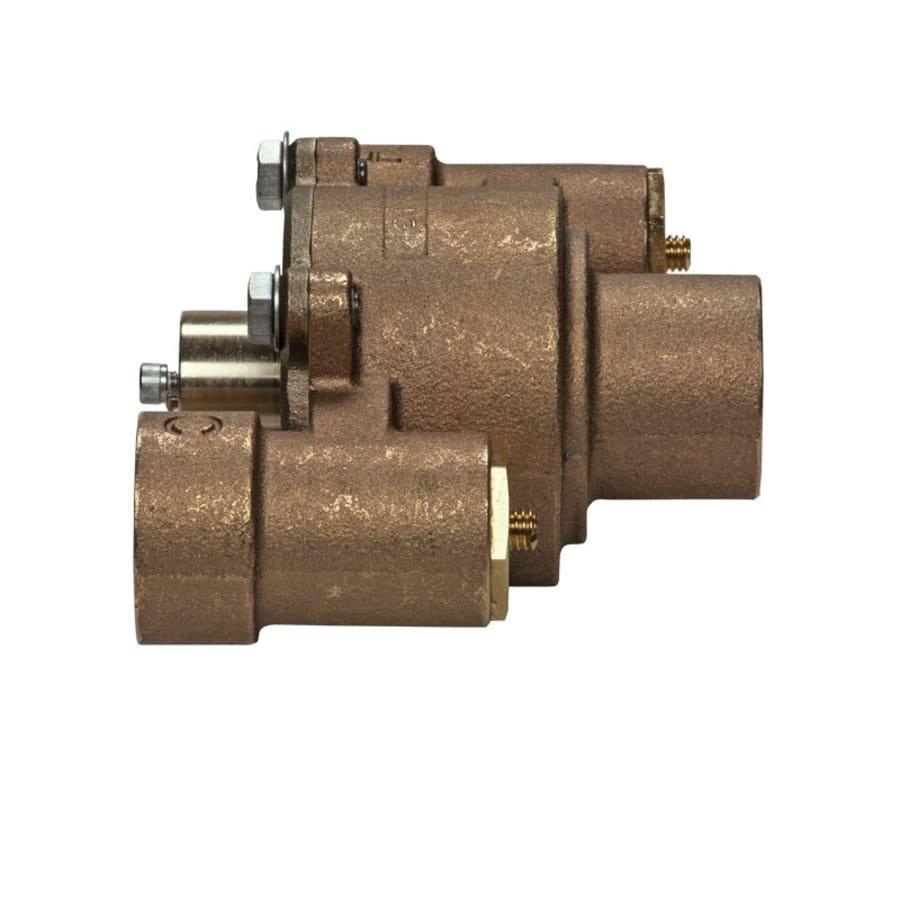

Model 9201E emergency mixing valve (patent pending) thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment. Additionally, to ensure a fail-safe water supply for emergency shower and eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied – ASSE 1071 standard recommends gauges be placed 5 to 8 feet downstream for the most accurate temperature measurement.)

Specifications

Inlet: 1.25 In
Outlet: 1.25 In
Height: 3.5 In
Width: 7.625 In
Maximum Operating Pressure: 125 PSI

Features

Highest Cold Water Bypass flow rate by class in the industry (65% of the rated tempered water flow rate).
Lowest internal pressure drop for this class of valve translates into a significant advantage in installations where the supply pressure is low.
Minimal outlet temperature variation is achieved by having the best minimum flow rate in the industry.
Valve binding, which is common in the industry, is virtually eliminated by material selection and advanced shuttle design.
Efficient funnel design with turbulent hot water passages to improve mixing at low flow rates and to enhance temperature control.
Lime and Calcuim resistant components are used throughout the construction.
With a flow range of 1 to 31 GPM, this valve can be used for multiple eyewashes or for an emergency shower.
Superior engineering incorporated into this product carries an extended 3-year warranty.
