Features:
Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Screw-on installation securely fastens hinges to material
Soft close function ensures your cabinet door will close quietly
3-way adjustable hinge for easy and customizable installation
Designed for a 110 degree opening angle
Specifications:
Hinge Mount: Full Overlay
Opening Angle: 110
Material: Steel, Zinc
Installation Type: Screws

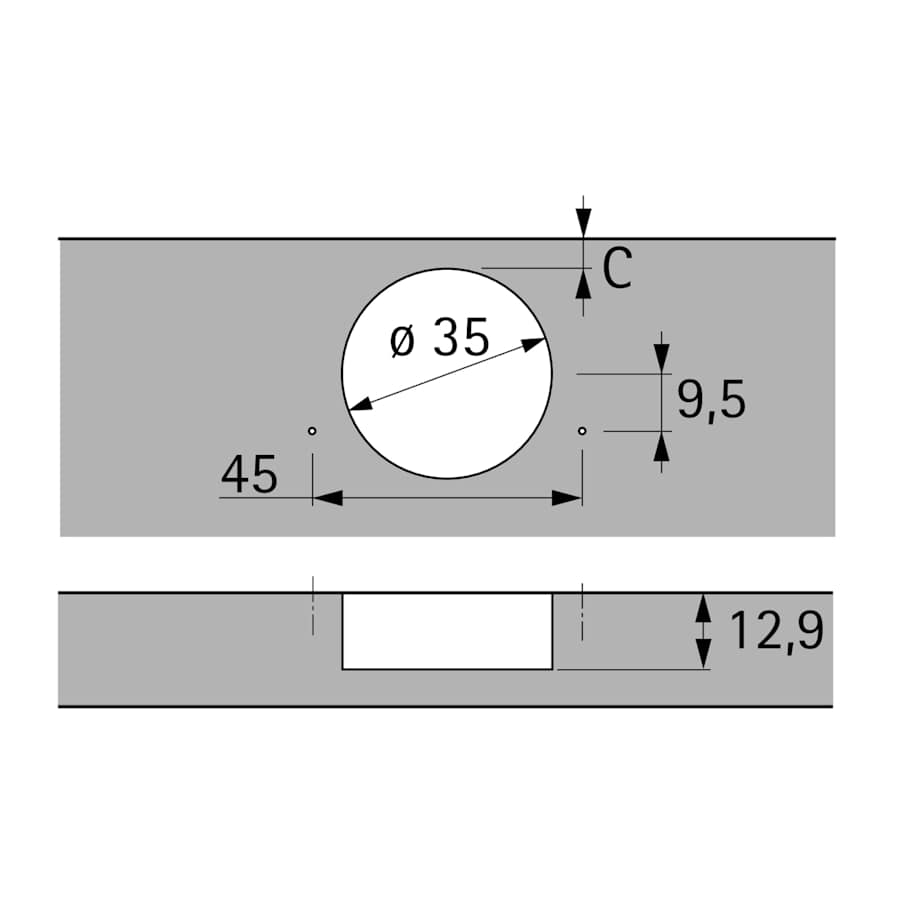

Cup Diameter: 1-3/8″
Bore Distance: 3/16″
Cup Depth: 1/2″
Mount Centers: 1-11/16″
Additional Hettich Links
Browse all Hettich Products
Hettich Sensys Collection
Specifications
Warranty and Product Information
| Collection | Sensys |
Characteristics and Features
| Insulation Type | Screw |
| Material | Steel, Zinc |
| Self Closing | No |
| Hinge Type | Concealed Euro |
| Bulk Pack | No |
| Soft Close | Yes |
| Arm Type | Straight Arm |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Adjustable Height | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
Dimensions and Measurements
| Quantity | 1 |
| Opening Angle | 110 |
| Cup Depth | 0.5 in. |
| Cup Depth mm | 12.8 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.69 in. |
| Mount Centers mm | 43 mm |
| Overlay | 5/8 Inch |
| Bottom Diameter | 0.2 mm |
| Max Cabinet Door Thickness | 0.94 in. |
| Color | Zinc |
| Color Tone | Greys |
