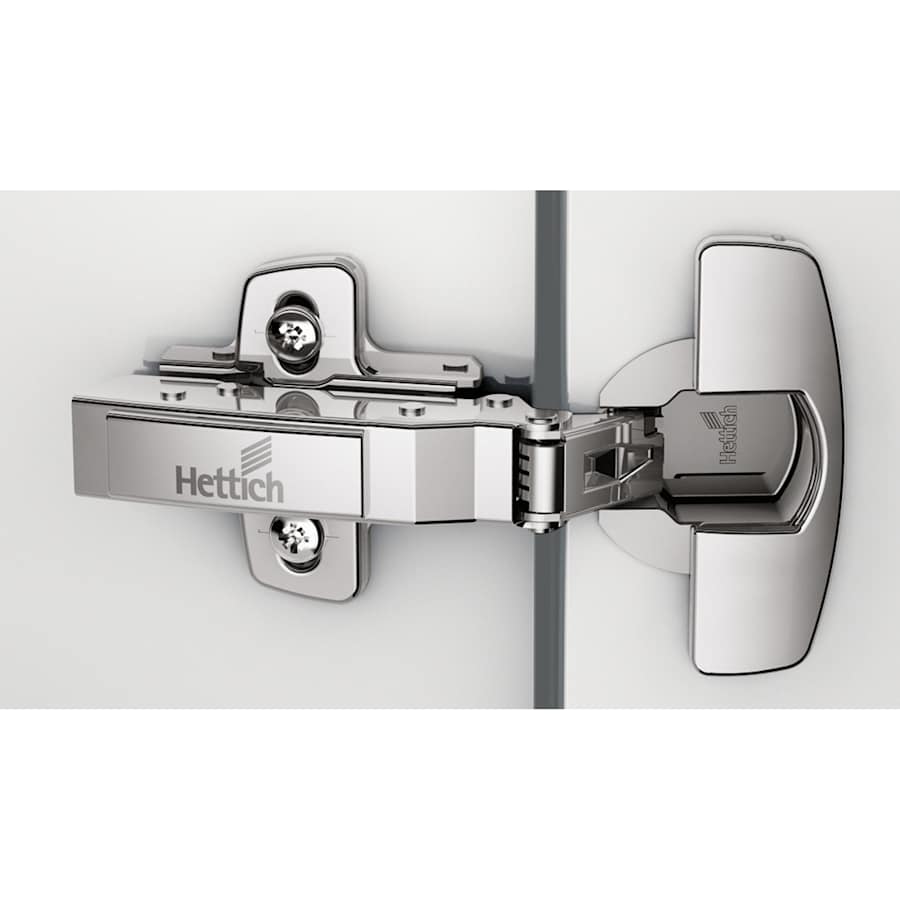

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Fix Fast installation securely fastens hinges to material
Soft close function ensures your cabinet door will close quietly
3-way adjustable hinge for easy and customizable installation
Designed for a 110 degree opening angle
Specifications:
Hinge Mount: Full Overlay
Opening Angle: 110
Material: Steel, Zinc
Installation Type: Clip On, Screw

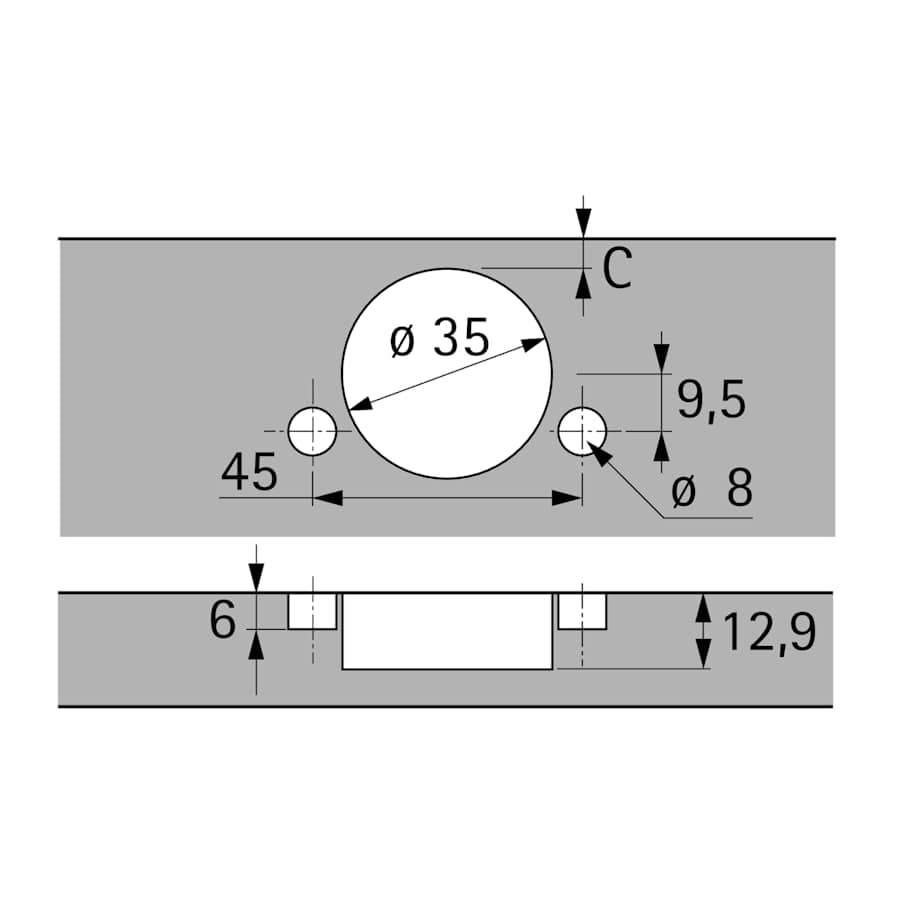

Cup Diameter: 1-3/8″
Bore Distance: 3/16″
Cup Depth: 1/2″
Mount Centers: 1-11/16″
Additional Hettich Links
Browse all Hettich Products
Hettich Sensys Collection
Specifications
Warranty and Product Information
| Collection | Sensys |
Characteristics and Features
| Insulation Type | Clip On, Screw |
| Material | Steel, Zinc |
| Bulk Pack | No |
| Hinge Type | Concealed Euro |
| Soft Close | Yes |
| Arm Type | Straight Arm |
| Cabinet Type | Face Frame, Panel (Frameless) |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |

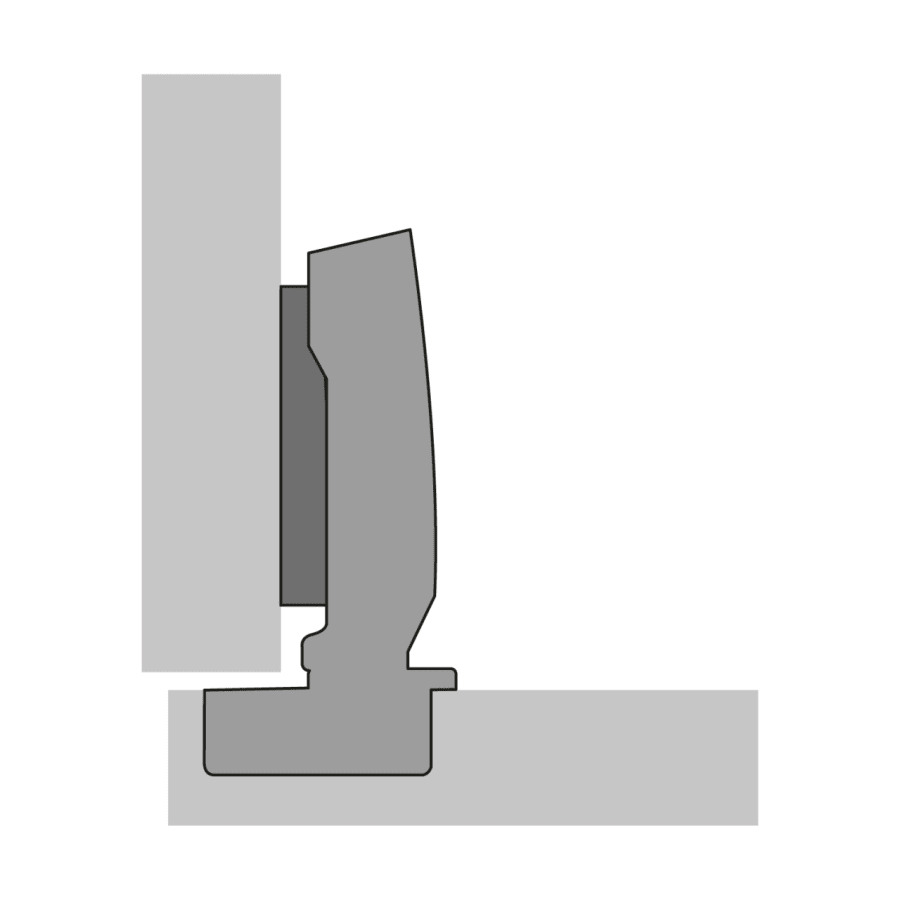

| Hinge Mount | Full Overlay |
| Self Closing | No |
Dimensions and Measurements
| Quantity | 1 |
| Max Cabinet Door Thickness | 0.94 in. |
| Opening Angle | 110 |
| Cup Depth | 0.5 in. |
| Cup Depth mm | 12.8 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.69 in. |
| Mount Centers mm | 43 mm |
| Bottom Diameter | 0.2 mm |
| Overlay | 5/8 Inch |
| Color | Zinc |
