Features:
Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Doweled installation securely fastens hinges to material
Soft close function ensures your cabinet door will close quietly
3-way adjustable hinge for easy and customizable installation
Designed for a 50 or 65 degree opening angle
Specifications:
Hinge Mount: Full Overlay
Opening Angle: 50, 65
Material: Steel, Zinc
Installation Type: Screw Expanding Dowel

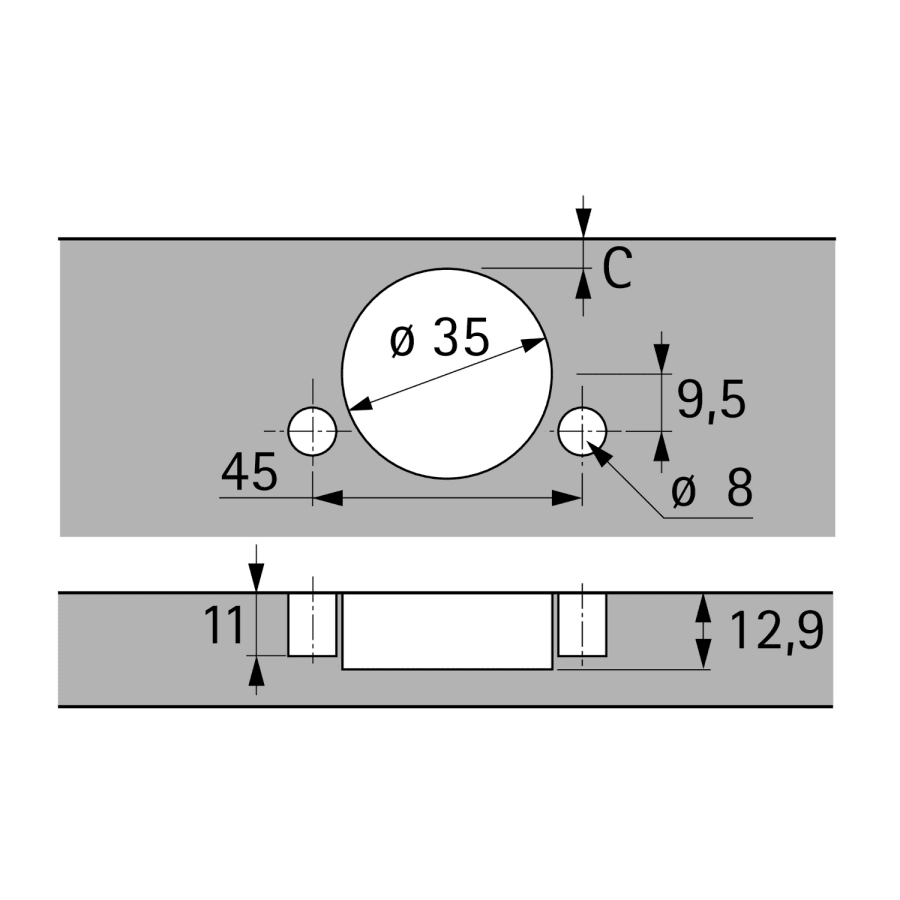

Cup Diameter: 1-3/8″
Bore Distance: 3/16″
Cup Depth: 1/2″
Mount Centers: 1-3/4″
Additional Hettich Links
Browse all Hettich Products
Hettich Sensys Collection
Specifications
Characteristics and Features
| Material | Steel, Zinc |
| Insulation Type | Screw Expanding Dowel |
| Bulk Pack | No |
| Hinge Type | Concealed Euro |
| Soft Close | Yes |
| Arm Type | Straight Arm |
| Adjustable Height | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Demountable | No |
| Hinge Mount | Full Overlay |
| Self Closing | No |
Warranty and Product Information
| Collection | Sensys |
Dimensions and Measurements
| Quantity | 1 |
| Bottom Diameter | 0.2 mm |
| Cup Depth | 0.5 in. |
| Cup Depth mm | 12.8 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.83 in. |
| Mount Centers | 1.75 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 50, 65 |
| Overlay | 5/8 Inch |
| Color | Zinc |
| Color Tone | Greys |
