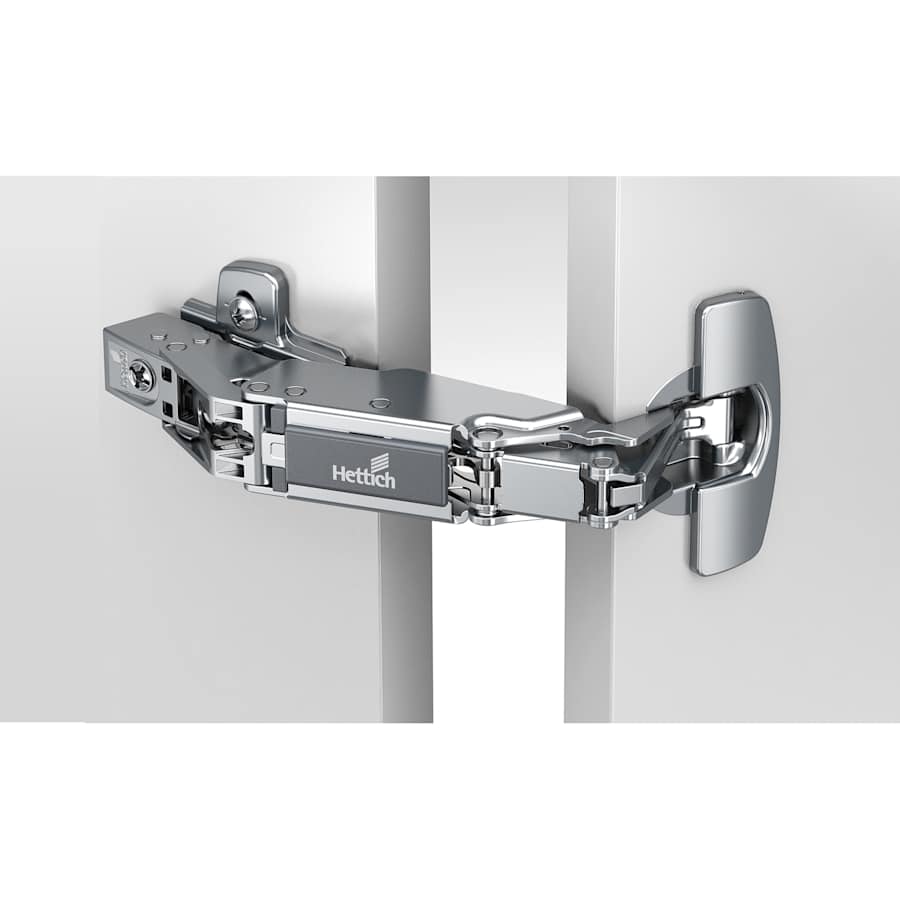

Features:
Includes a single (1) hinge in each order
Constructed of high quality steel and zinc for durability and dependability
Doweled installation securely fastens hinges to material
Self closing function will allow your cabinet door to close firmly and securely
3-way adjustable hinge for easy and customizable installation
Designed for a 165 degree opening angle
Specifications:

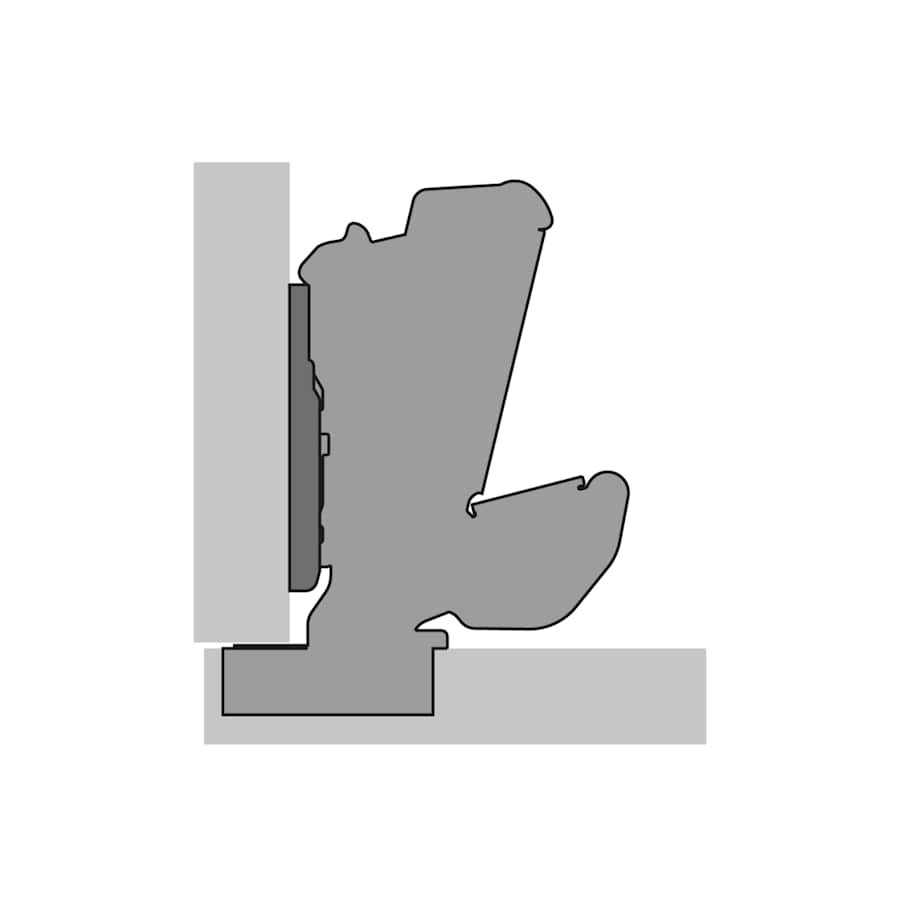

Hinge Mount: Full Overlay
Opening Angle: 165
Material: Steel, Zinc

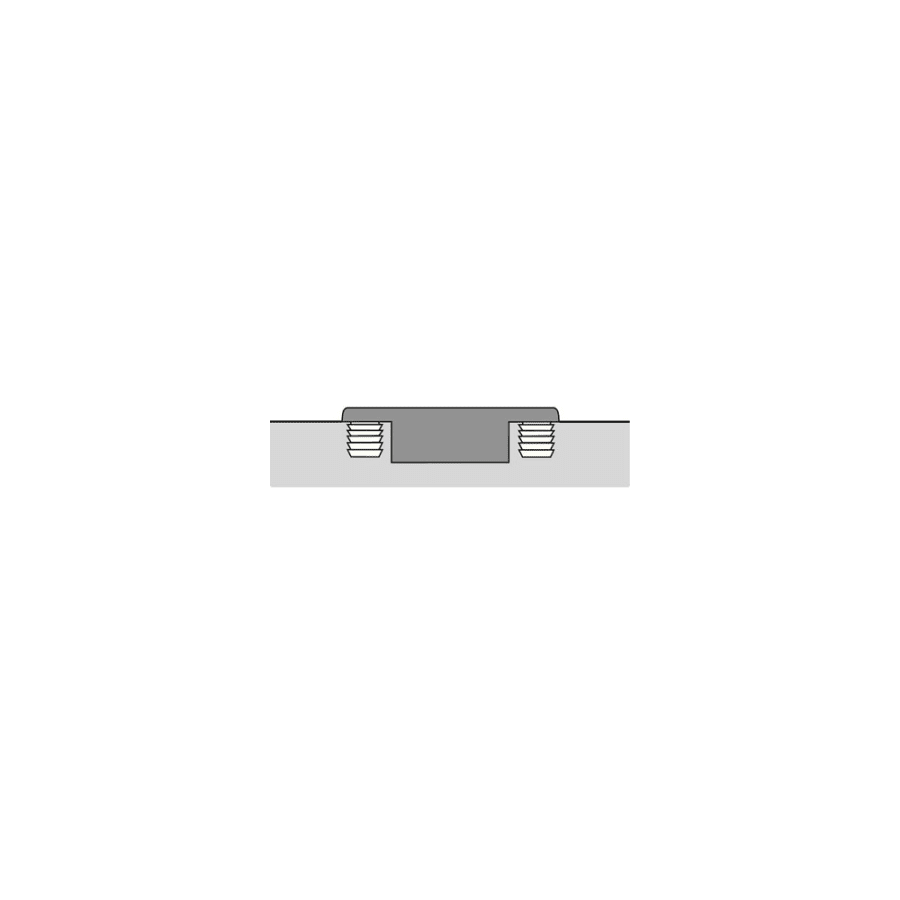

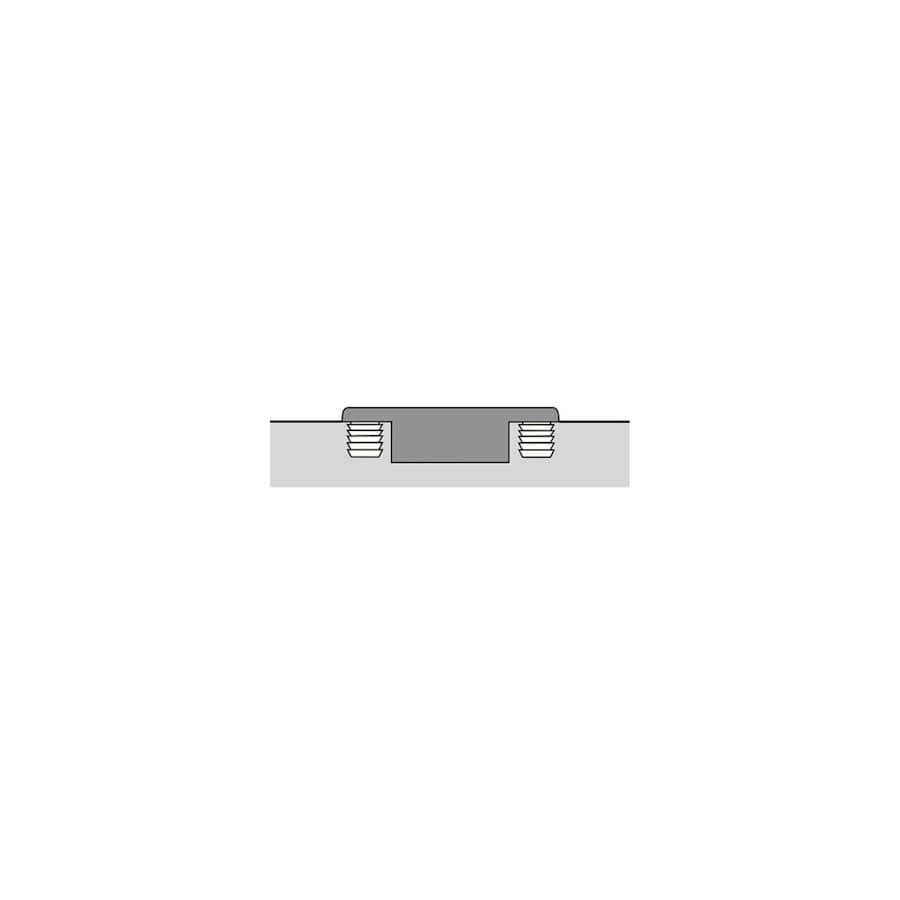

Installation Type: Screw Expanding Dowel

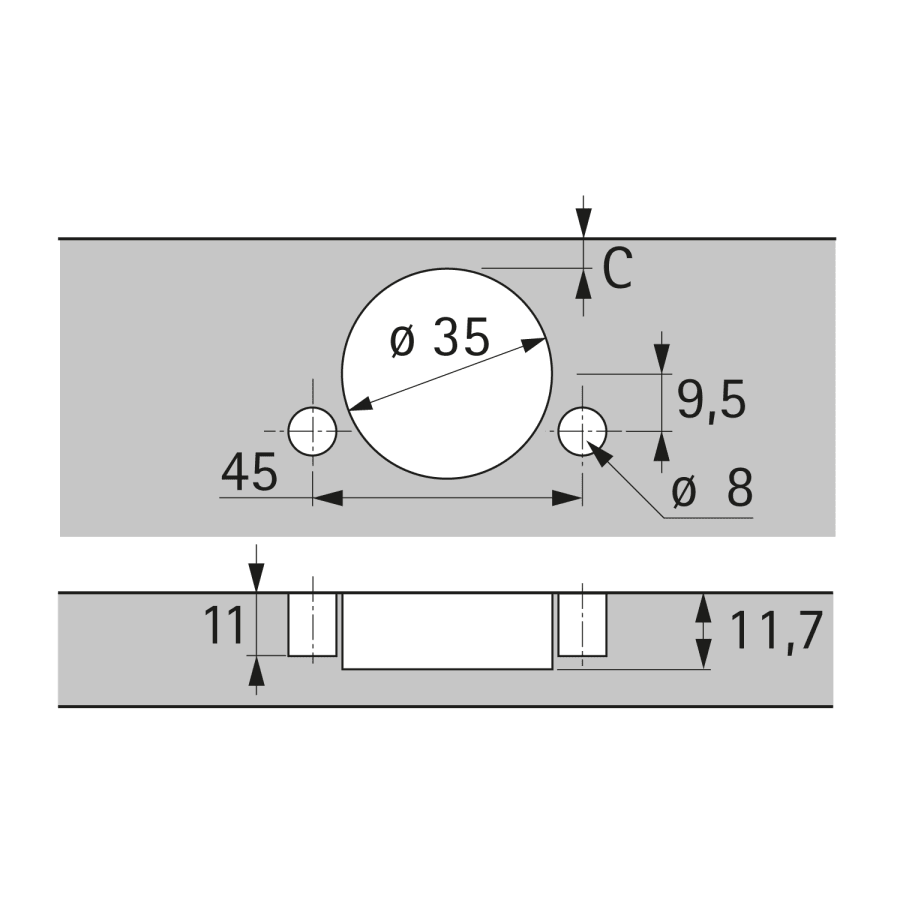

Cup Diameter: 1-3/8″
Bore Distance: 3/16″
Cup Depth: 7/16″
Mount Centers: 1-3/4″
Additional Hettich Links
Browse all Hettich Products
Hettich Sensys Collection
Specifications
Warranty and Product Information
| Collection | Sensys |
Characteristics and Features
| Insulation Type | Screw Expanding Dowel |
| Material | Steel, Zinc |
| Bulk Pack | No |
| Adjustable Height | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Soft Close | No |
| Hinge Type | Concealed Euro |
| Self Closing | Yes |
| Arm Type | Straight Arm |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
Dimensions and Measurements
| Quantity | 1 |
| Cup Depth | 0.46 in. |
| Cup Depth mm | 11.6 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.75 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 165 |
| Bottom Diameter | 0.2 mm |
| Max Cabinet Door Thickness | 1.26 in. |
| Overlay | 5/8 Inch |
| Color | Zinc |
| Color Tone | Greys |
