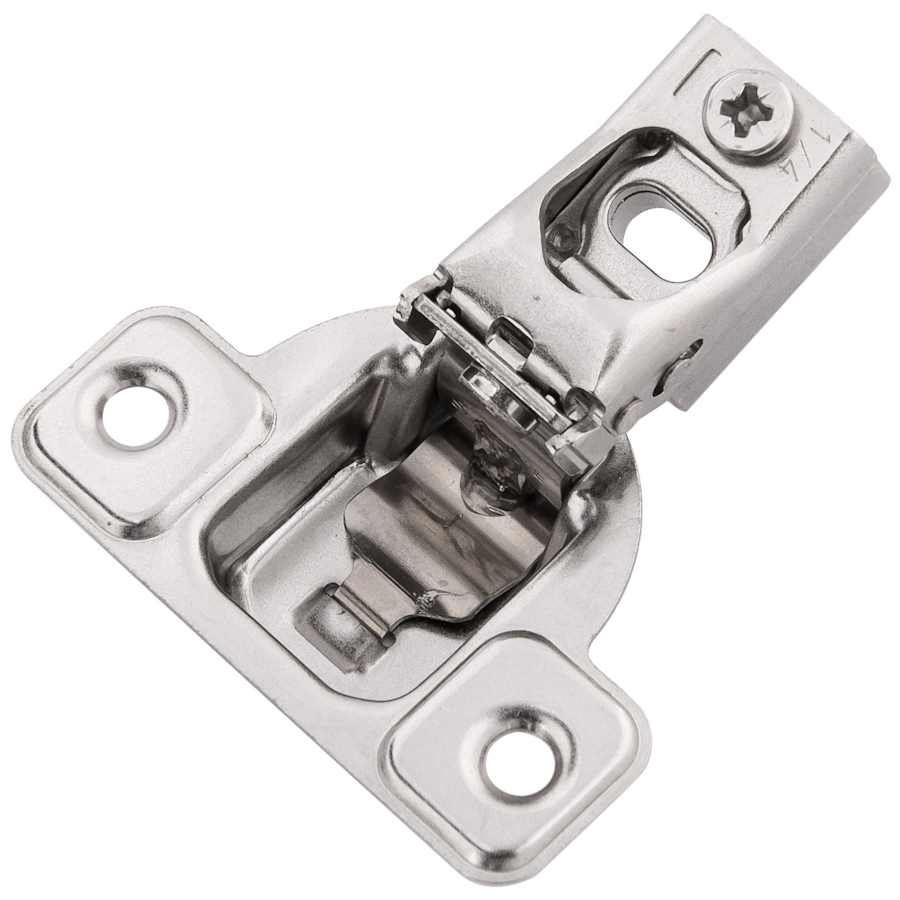

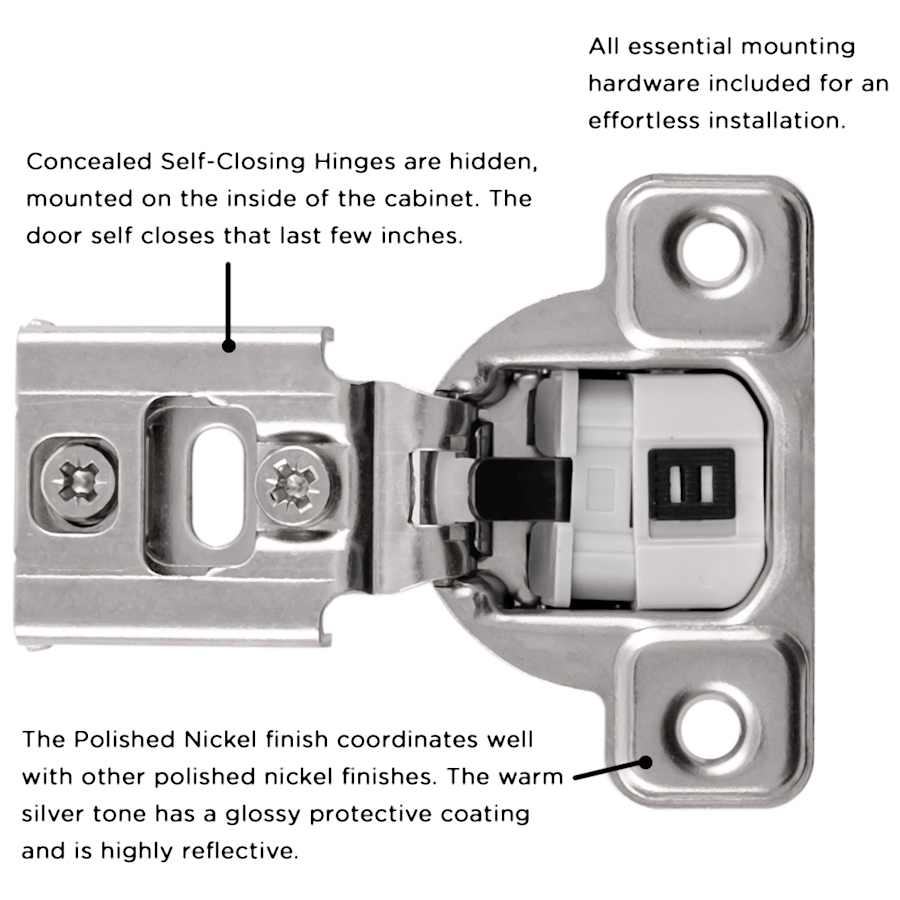

This European style concealed hinge is for face frame cabinets – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. Features adjustment cams that automatically position the hinge as desired without the hassle of loosening screws and manual positioning. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation.
Features:
1/4 inch overlay for face frame cabinets
2 cams for depth and vertical adjustment
106 degree opening angle
Package of two (2)

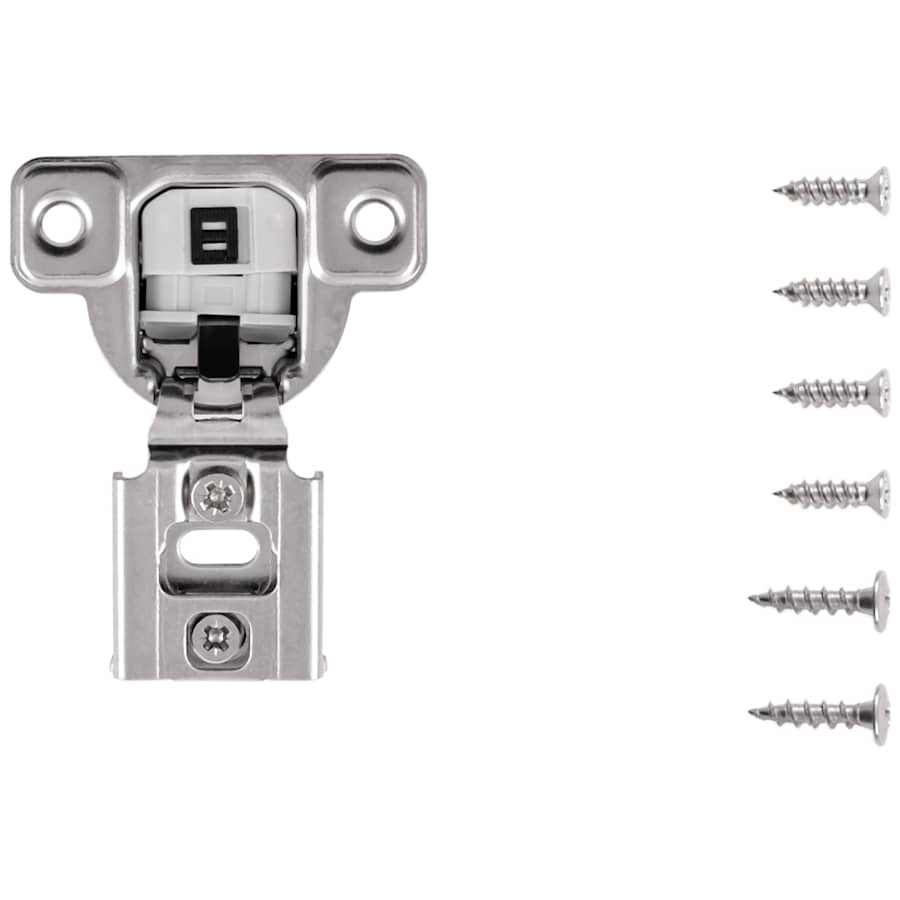

All essential mounting hardware included for an effortless installation
Specifications:
Width: 2-3/8″
Length: 2-3/4″
Hinge Mount: Partial Overlay
Opening Angle: 106
Material: Steel
Installation Type: Screws
Cup Depth: 7/16″
Cup Diameter: 1-3/8″
Boring Distance: 1/4″
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Material | Steel |
| Insulation Type | Screw |
| Hinge Type | Concealed Euro |
| Bulk Pack | Yes |
| Cabinet Type | Face Frame |
| Adjustable Height | Yes |
| Arm Type | Half Cranked |
| Soft Close | No |
| Self Closing | Yes |
| 3-Way Adjustable | No |
| Adjustable Depth | Yes |
| Adjustable Side to Side | No |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | Italy |
| Product Weight | 0.24 lbs. |
| Quantity | 2 |
| Cup Depth | 0.43 in. |
| Cup Depth mm | 11 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 106 |
| Bottom Diameter | 0.25 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Overlay | 1/4 Inch |
| Installation Hardware Included | Yes |
| Color | Polished Nickel |
