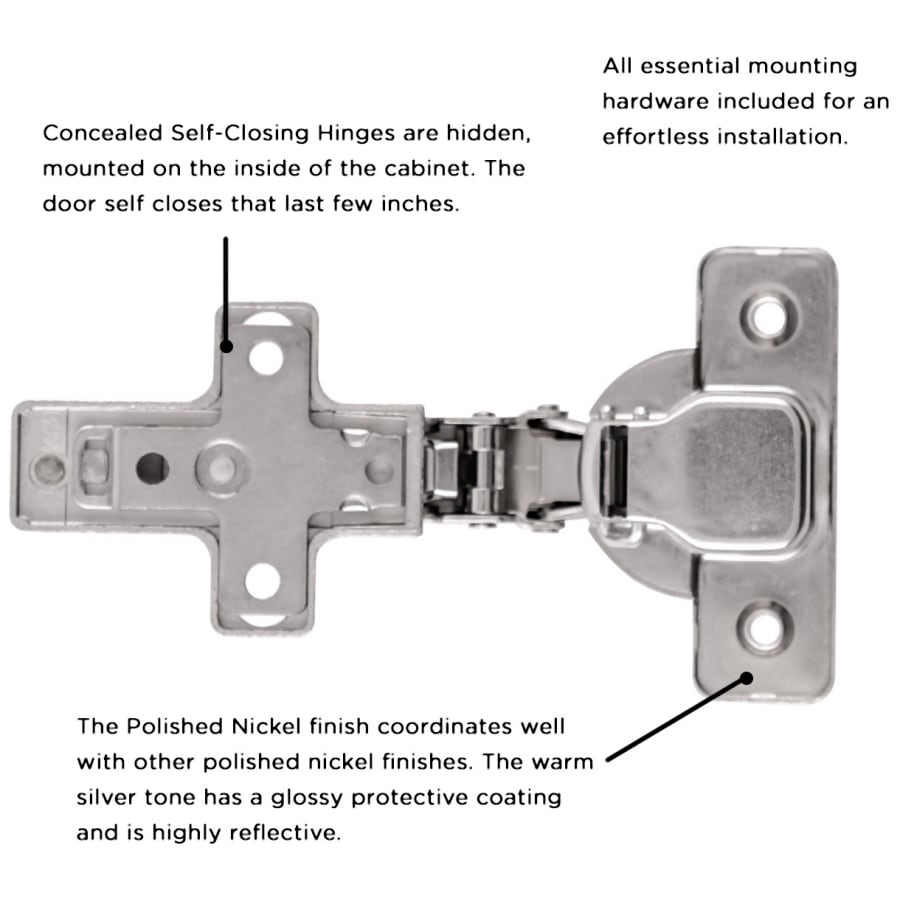

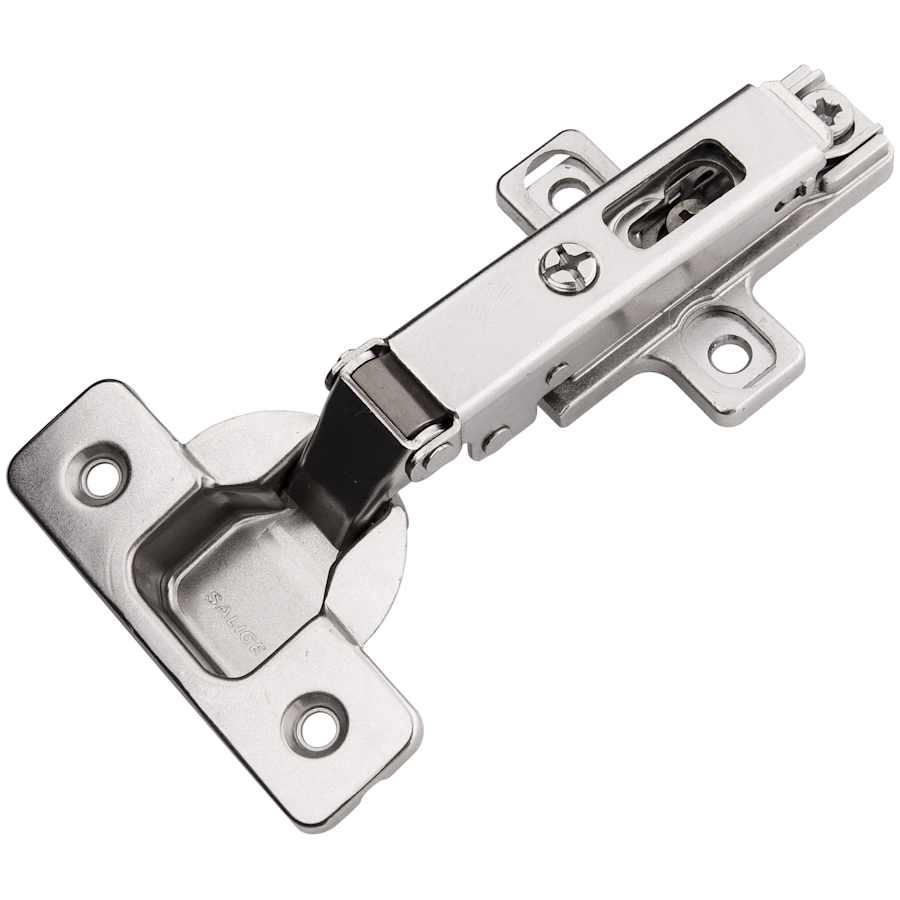

This European style concealed hinge is for frameless cabinets – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. This full overlay model is for minimal cabinet reveal and cleanest overall presentation. These types of hinges are typically used at the end of cabinet runs. Features include clip on baseplate with release lever for easy door removal and installation, with adjustment cams that automatically position the hinge as desired without the hassle of loosening screws and manual positioning. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation. Soft close version also available (model # HH74720-14) that quiets the door closing.
Features:
Full overlay for frameless cabinets
Cam for vertical adjustment
110 degree opening angle
Package of twenty (20)

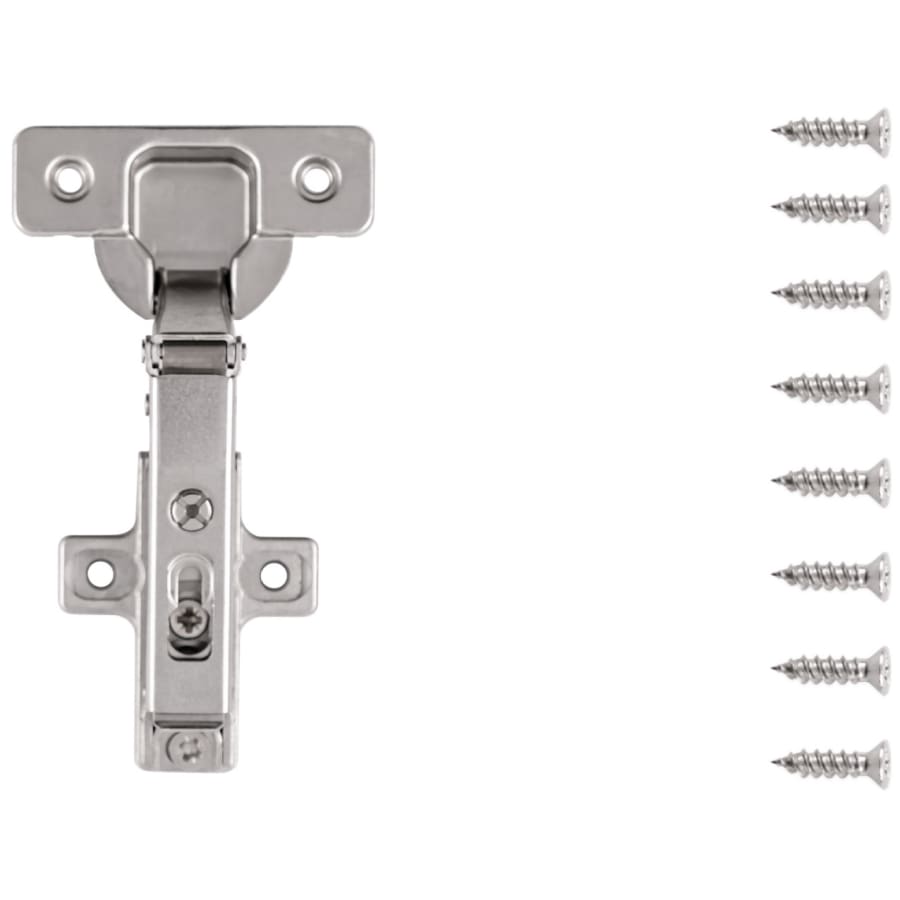

All essential mounting hardware included for an effortless installation
Specifications:
Width: 2-9/16″
Length: 4-3/4″
Hinge Mount: Full Overlay
Opening Angle: 110
Material: Steel
Installation Type: Screws
Cup Depth: 7/16″
Cup Diameter: 1-3/8″
Boring Distance: 1/4″
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Insulation Type | Screw |
| Material | Steel |
| Bulk Pack | Yes |
| Hinge Type | Concealed Euro |
| Soft Close | No |
| Arm Type | Full Cranked |
| Cabinet Type | Panel (Frameless) |
| Adjustable Height | Yes |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | No |
| Demountable | Yes |
| Hinge Mount | Full Overlay |
| Self Closing | Yes |
| Country Of Origin | Italy |
| Manufacturer Warranty | Limited Lifetime |
| Quantity | 20 |
| Product Weight | 4.9 lbs. |
| Bottom Diameter | 0.25 mm |
| Cup Depth | 0.43 in. |
| Cup Depth mm | 11 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 110 |
| Overlay | Full |
| Installation Hardware Included | Yes |
| Color | Polished Nickel |
