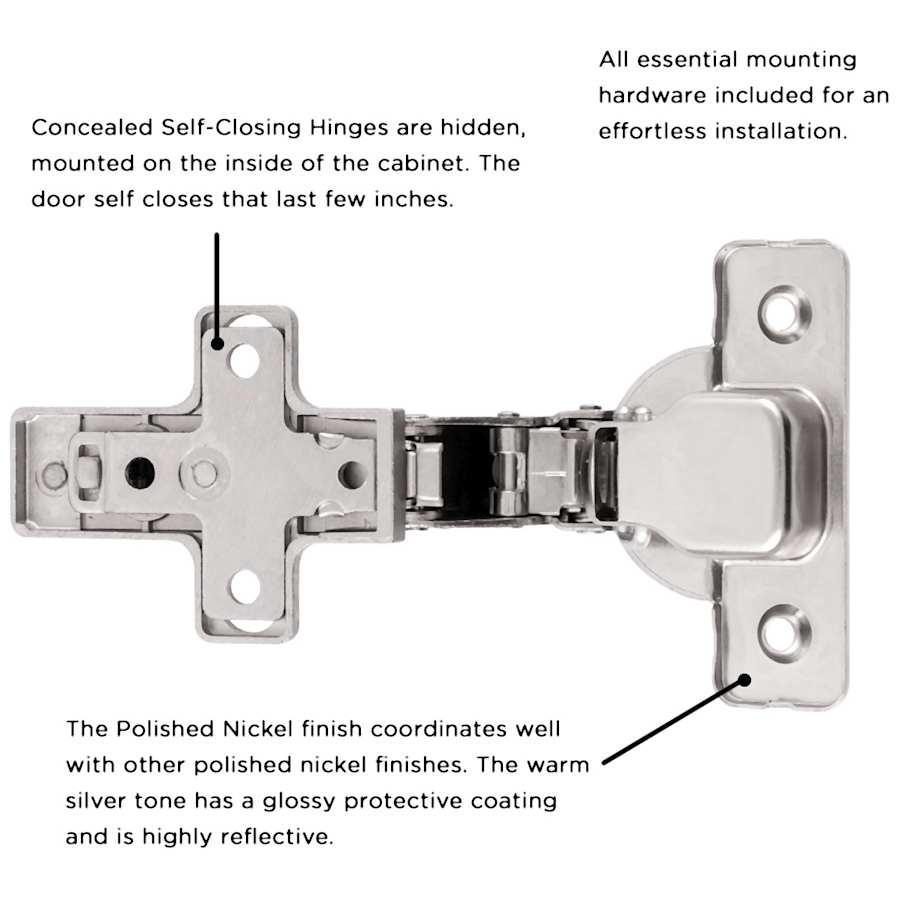

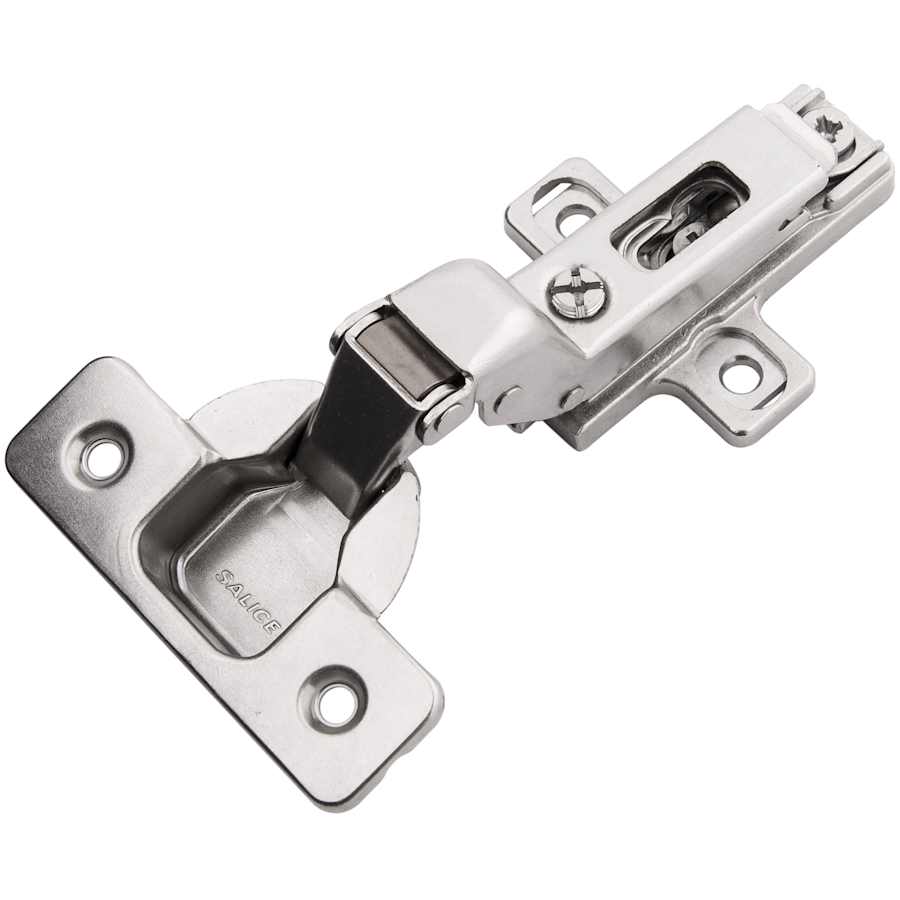

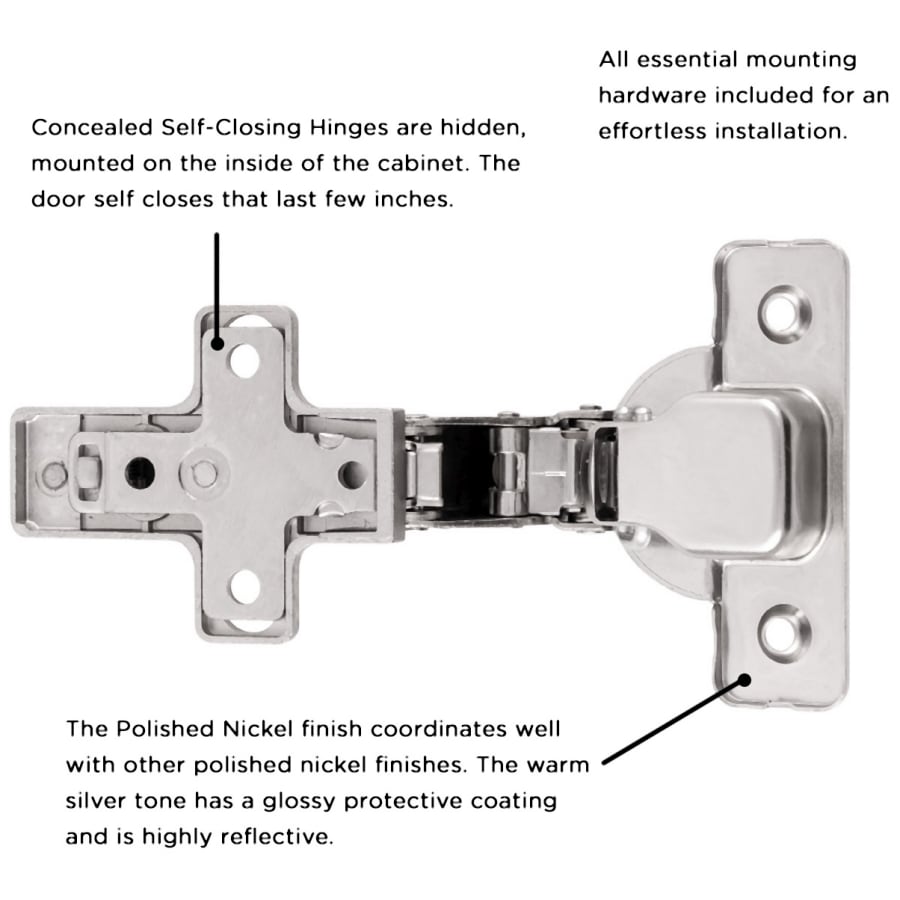

This European style concealed hinge is for frameless cabinets – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. This inset model is for doors set completely flush within cabinet frame, offering a clean presentation across the entire facing. Features include clip on baseplate with release lever for easy door removal and installation, with adjustment cams that automatically position the hinge as desired without the hassle of loosening screws and manual positioning. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation. Soft close version also available (model # HH74722-14) that quiets the door closing.
Features:
Inset for frameless cabinets
Cam for vertical adjustment
110 degree opening angle
Package of two (2)

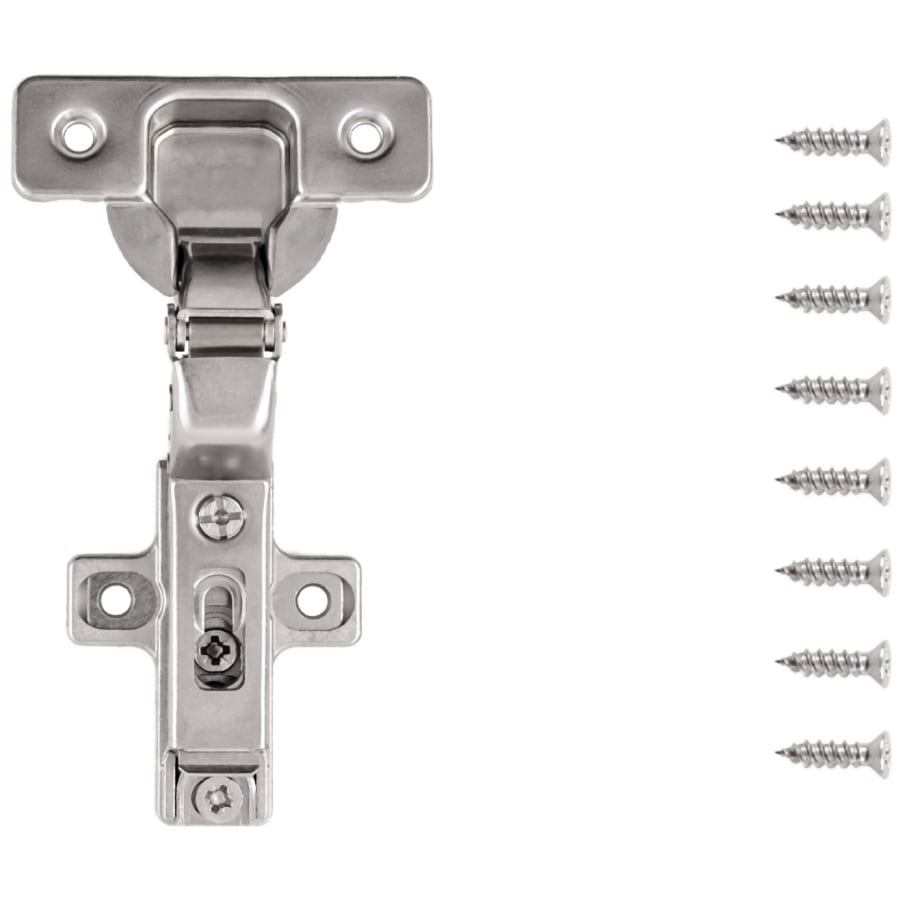

All essential mounting hardware included for an effortless installation
Specifications:
Width: 2-5/8″
Length: 4-3/4″
Hinge Mount: Full Inset
Opening Angle: 110
Material: Steel
Installation Type: Screws
Cup Depth: 7/16″
Cup Diameter: 1-3/8″
Boring Distance: 1/4″
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Installation Hardware Included | Yes |
| Insulation Type | Screw |
| Material | Steel |
| Self Closing | Yes |
| Hinge Type | Concealed Euro |
| Bulk Pack | Yes |
| Soft Close | No |
| Arm Type | Full Cranked |
| Cabinet Type | Panel (Frameless) |
| Adjustable Height | Yes |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | No |
| Demountable | Yes |
| Hinge Mount | Full Inset |
| Country Of Origin | Italy |
| Manufacturer Warranty | Limited Lifetime |
| Product Weight | 0.51 lbs. |
| Quantity | 2 |
| Opening Angle | 110 |
| Cup Depth | 0.43 in. |
| Cup Depth mm | 11 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Bottom Diameter | 0.25 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
