Features:
Includes two hinges in each order (Not sold individually)
Steel construction adds durability for a long lifespan
6-Way adjustability makes installation a breeze
All mounting hardware included
Product Technologies:

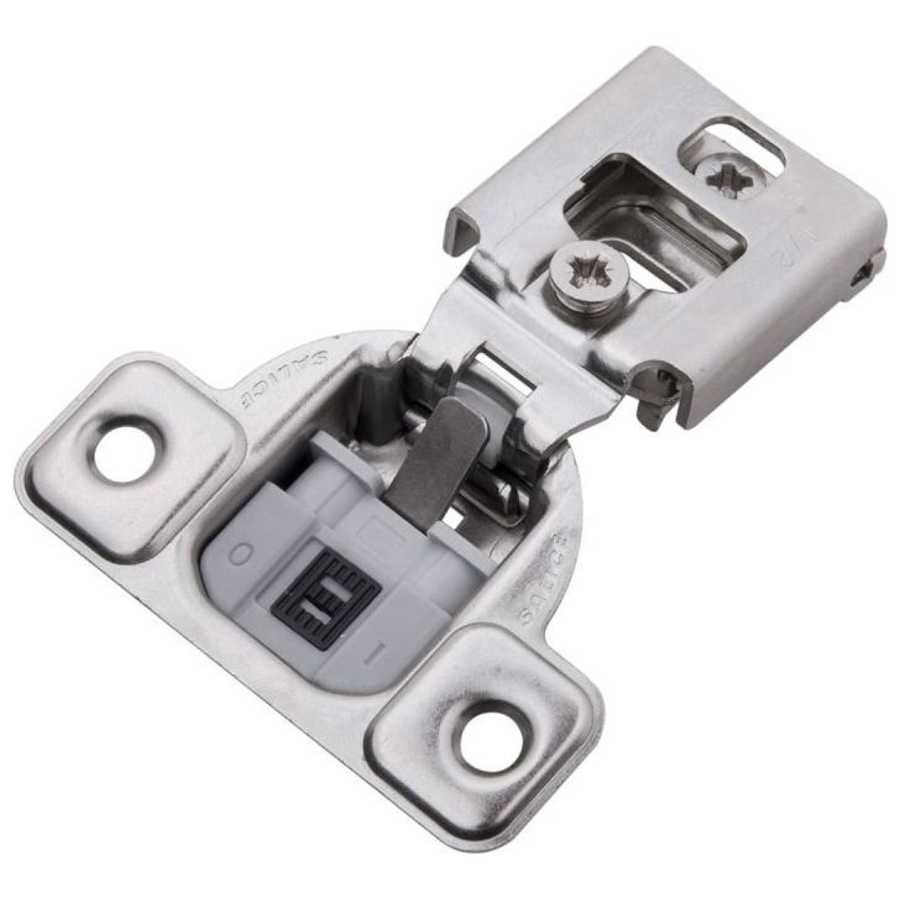

Partial Overlay: A partial overlay hinge is needed when the cabinet door you are mounting overlays the cabinet frame itself. Overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with partial concealment of the hardware itself when the cabinet door is closed.
Soft Close: Whether large or small, heavy or light, soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use
Specifications:
Cup Diameter: 35 mm
Bore Distance: 2.5 mm
Hinge Mount: Partial Overlay
Mount Centers: 45 mm
Opening Angle: 95°
Depth Adjustment: Yes
Vertical Adjustment: Yes
Side to Side Adjustment: Yes
Material: Steel
Quantity: 2
Cup Depth: 12 mm
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Insulation Type | Screw |
| Material | Steel |
| Hinge Type | Concealed Euro |
| Cabinet Type | Face Frame |
| Soft Close | Yes |
| Adjustable Height | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Self Closing | No |
| Soft Close Deactivation | Yes |
| Installation Hardware Included | Yes |
| Approved for Commercial Use | No |
| Quantity | 2 |
| Bottom Diameter | 2.5 mm |
| Cup Depth | 12 in. |
| Cup Diameter | 35 in. |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers | 45 in. |
| Opening Angle | 95 |
| Overlay | 1/2 Inch |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
