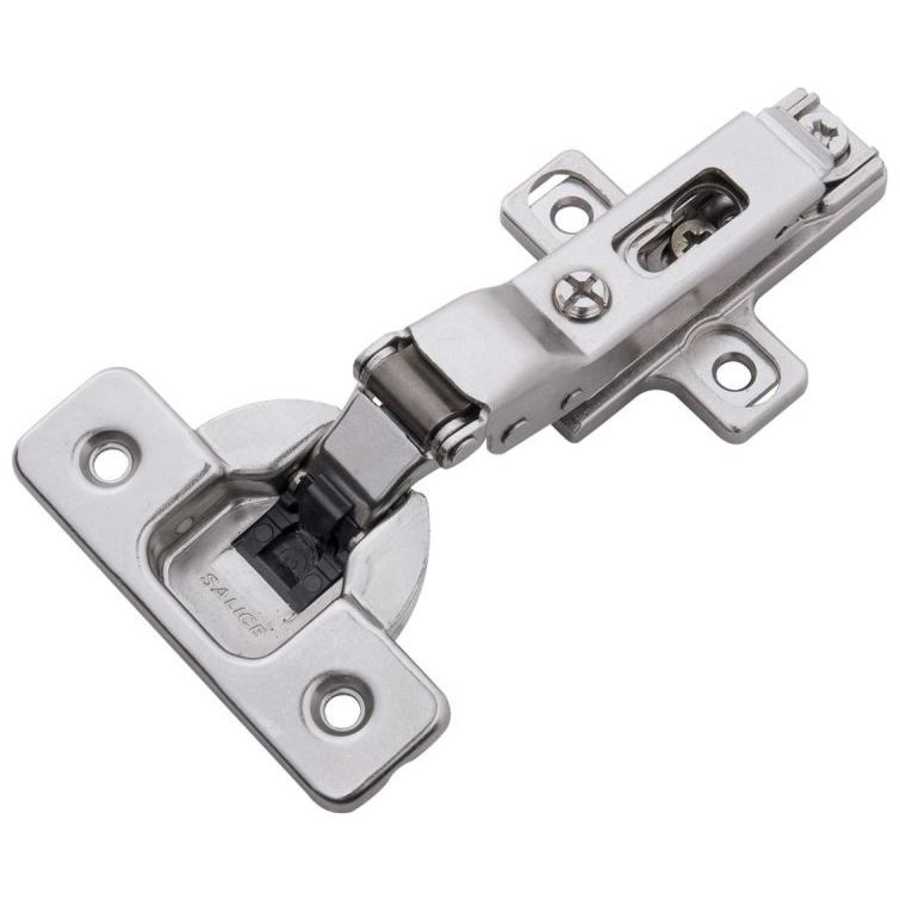

Features:
Includes two hinges in each order (Not sold individually)
Steel construction adds durability for a long lifespan
6-Way adjustability makes installation a breeze
All mounting hardware included
Product Technologies:
Partial Overlay: A partial overlay hinge is needed when the cabinet door you are mounting overlays the cabinet frame itself. Overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with partial concealment of the hardware itself when the cabinet door is closed.
Soft Close: Whether large or small, heavy or light, soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use
Specifications:
Cup Diameter: 35 mm
Bore Distance: 4 mm
Hinge Mount: Partial Overlay
Mount Centers: 45 mm
Opening Angle: 105°
Depth Adjustment: Yes
Vertical Adjustment: Yes
Side to Side Adjustment: Yes
Material: Steel
Quantity: 2
Cup Depth: 12 mm
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Approved for Commercial Use | No |
| Installation Hardware Included | Yes |
| Material | Steel |
| Insulation Type | Screw |
| Arm Type | Half Cranked |
| Hinge Type | Concealed Euro |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Panel (Frameless) |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Self Closing | No |
| Soft Close | Yes |
| Soft Close Deactivation | No |
| Quantity | 2 |
| Max Cabinet Door Thickness | 0.75 in. |
| Opening Angle | 105 |
| Max Cabinet Door Thickness mm | 19 mm |
| Bottom Diameter | 4 mm |
| Cup Depth | 12 in. |
| Cup Diameter | 35 in. |
| Mount Centers | 45 in. |
| Overlay | 1/2 Inch |
| Overlay mm | 9.5 mm |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
