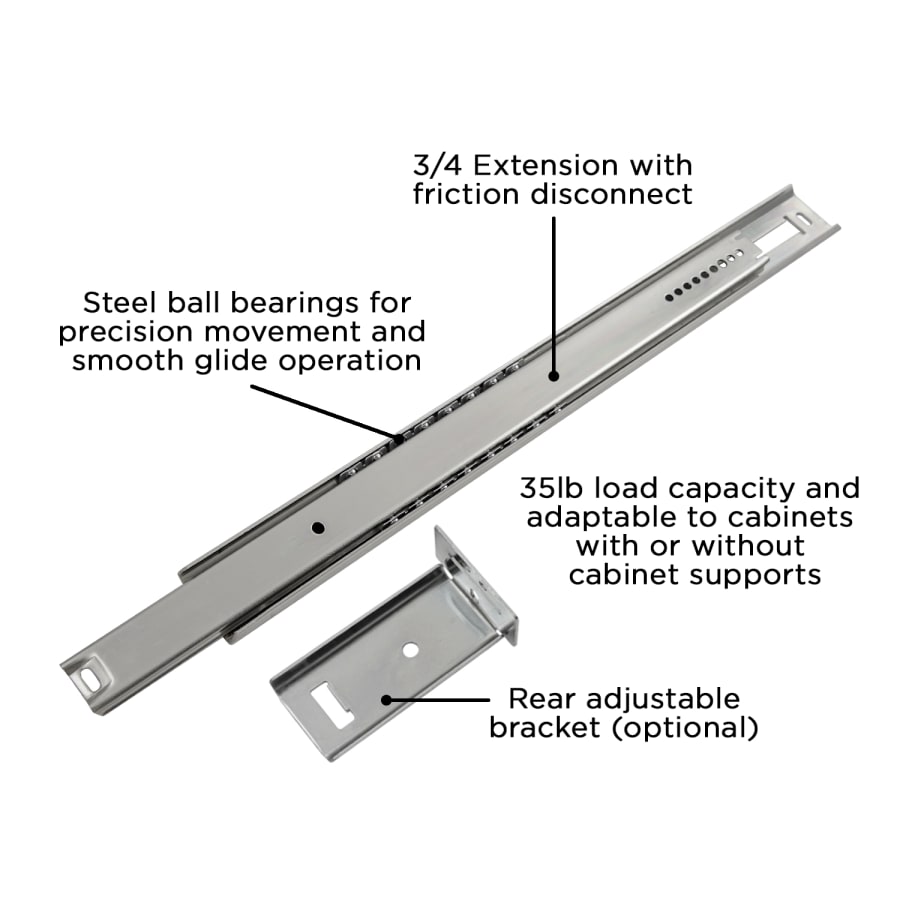

Features:
Designed to support up to 35 pounds of weight
Mounts to the bottom center of the drawer. Only one slide needed per drawer
Provides easy access to the drawer with 3/4 extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets

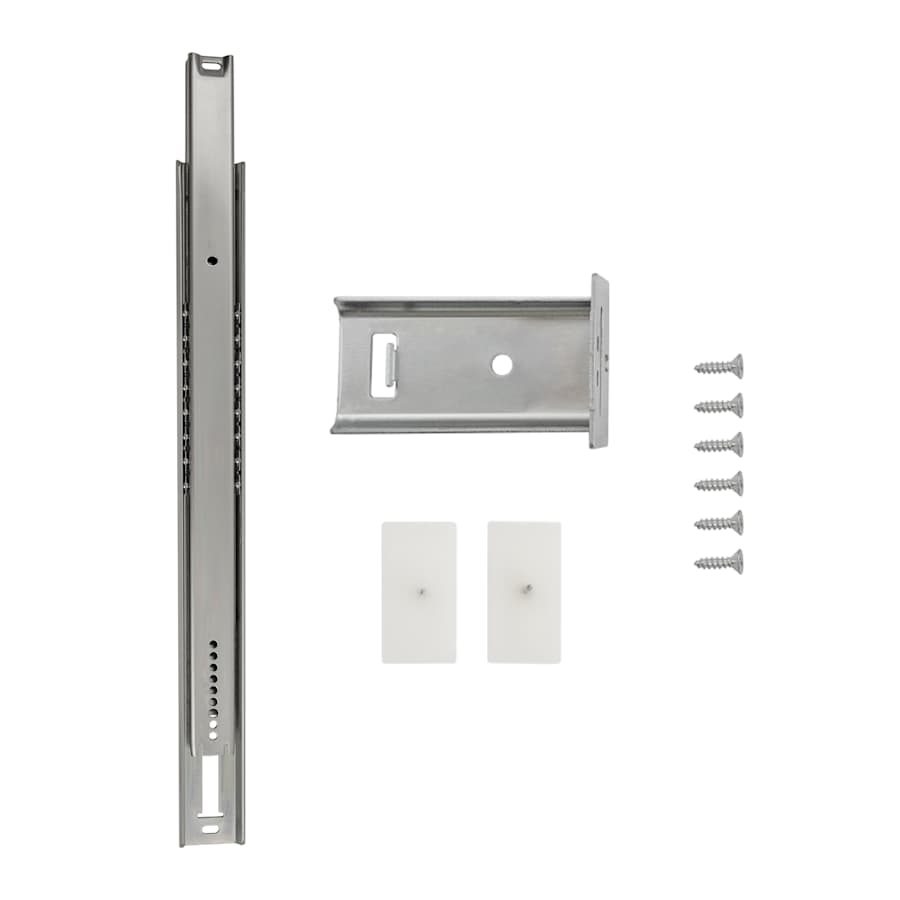

Includes a limited 90 day manufacturer warrantyInstallation hardware included
Specifications:
Recommended Drawer Length: 12-1/2″
Slide Length: 12″
Extension Type: 3/4 Extension
Slide Type: Ball Bearing
Weight Capacity: 35 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 1
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware 1029 Collection
Specifications
Characteristics and Features
| Material | Steel |
| Insulation Type | Center Mount |
| Mounting Type | Center Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | No |
| Soft Close | No |
| Adjustable | No |
| Extension Type | 3/4 Extension |
| Push to Open | No |
| Detent | No |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
Warranty and Product Information
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | 1029 |

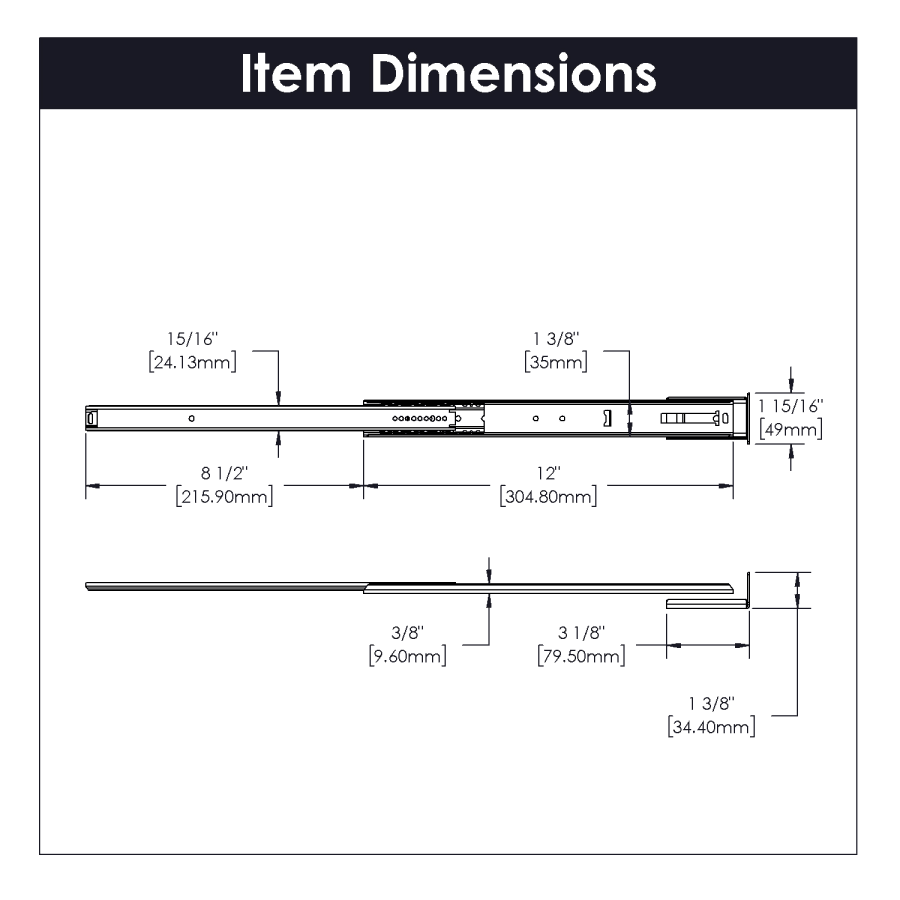

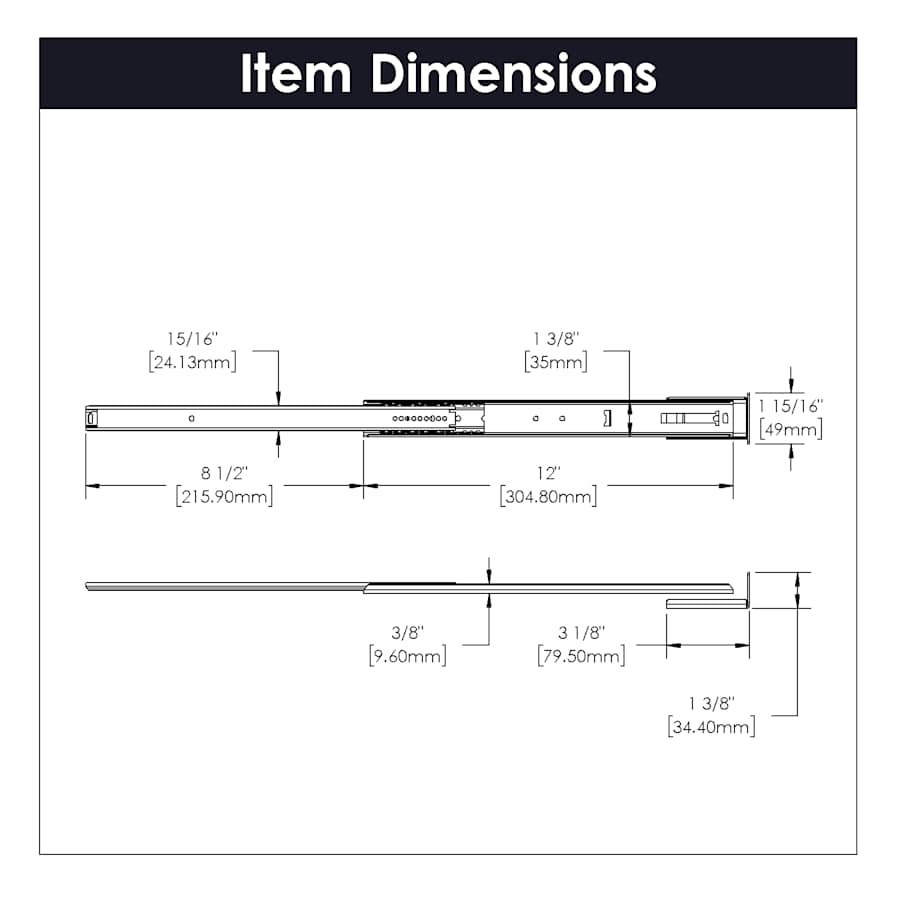

Dimensions and Measurements
| Length | 12 in. |
| Quantity | 1 |
| Nominal Length | 12 in. |
| Extension | 12 in. |
| Max Capacity (Pounds) | 35 lbs. |
| Drainboard Length | 12.5 in. |
Included Components
| Installation Hardware Included | Yes |
| Color | Cadmium |
| Color Tone | Neutrals |
