These full extension ball bearing side mount drawer slides feature a soft close mechanism. Gone are the days of loud slammed drawers and rattling contents in the kitchen or bathroom when using our 1055 series drawer slide – this soft close model pulls the door closed for the last few inches of travel and keeps it shut, and also dampens the closing for super smooth and quiet operation. As a side mount type with gliding ball bearings and hold capacity of 100 lb., this slide is highly preferred for its rugged durability, full extension for great drawer access, and smooth ride. These slides are non handed and feature a lever release. Mounting hardware and instructions included for DIY friendly installation. See our rear adjustable mounting bracket (model # P1056/BKT-2C) for face frame mount application, available separately.

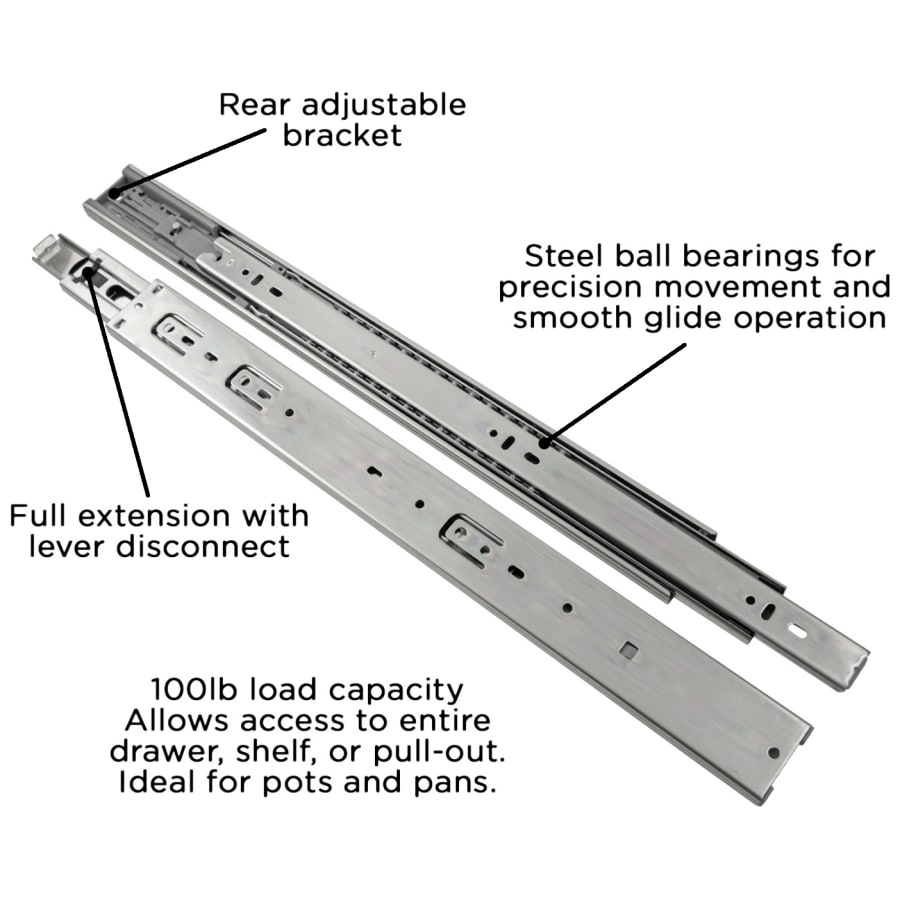

Features:
Smooth glide operation with soft close
Steel ball bearings for smooth glide operation
Spring mechanism soft close function
100 lb. load capacity
Non-handed slides install on either side
Package of five (5) pairs

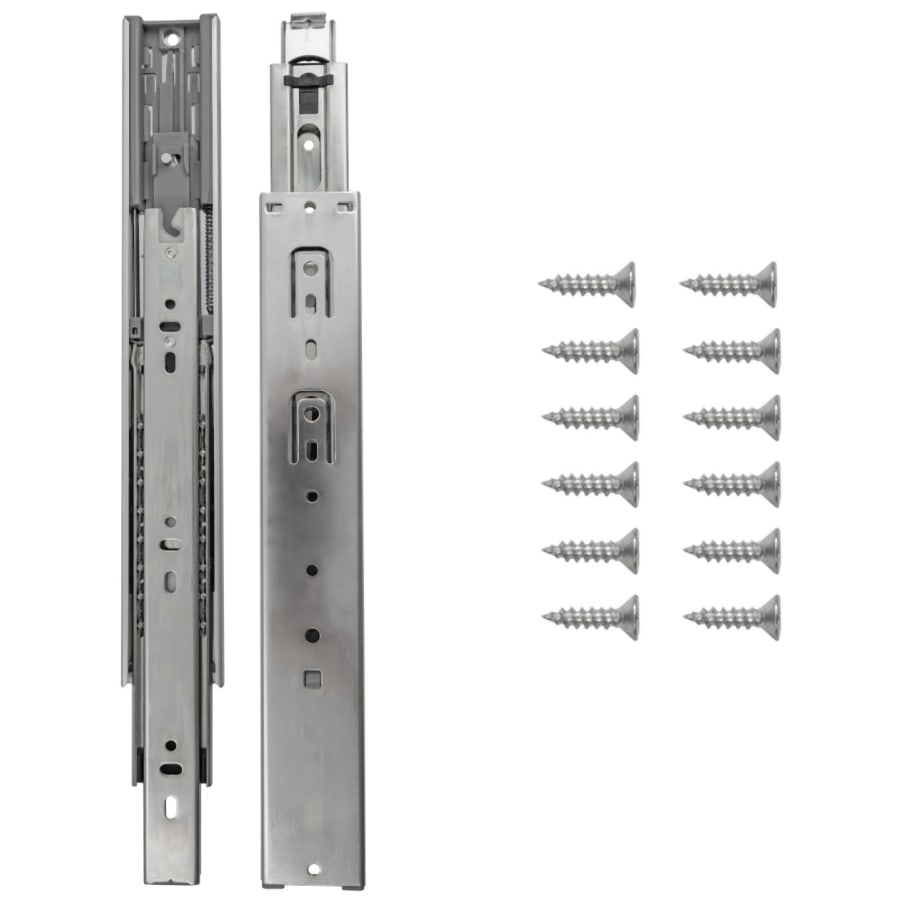

All essential mounting hardware included for an effortless installation
Specifications:
Drawer Length: 23″
Slide Length: 22″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs.
Material: Steel
Quantity: 10
Country of Origin: China
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware 1055 Collection

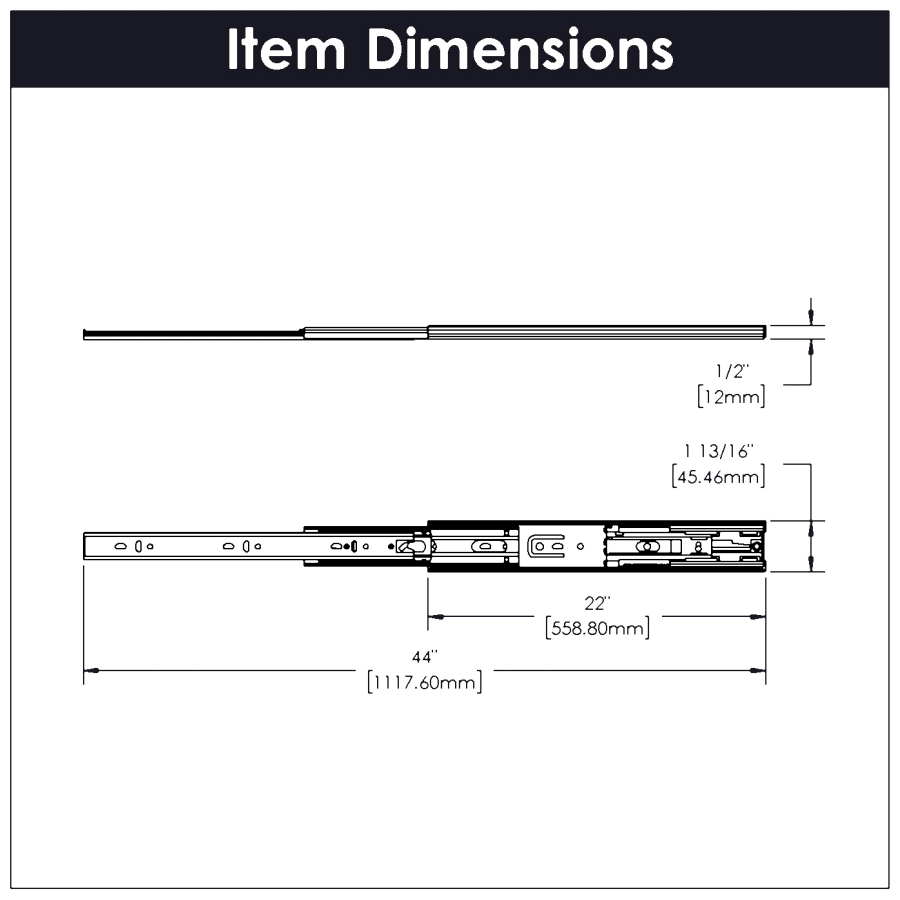

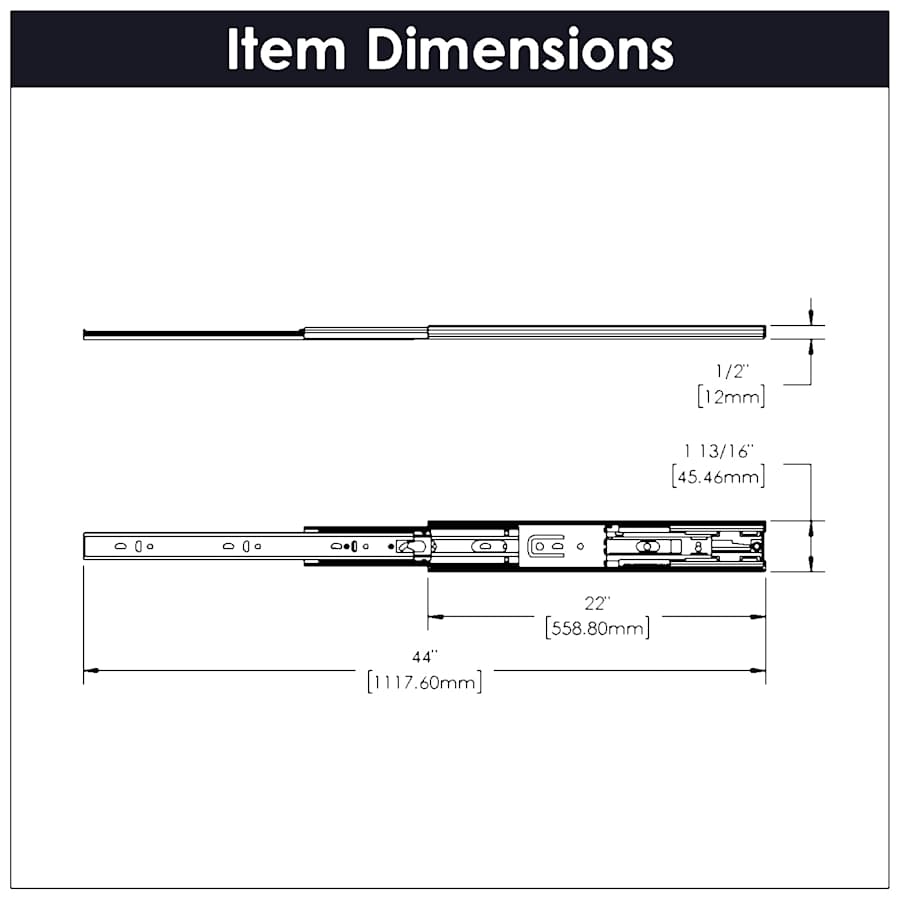

Specifications
| Length | 22 in. |
| Nominal Length | 22 in. |
| Width | 1.88 in. |
| Product Weight | 18.2 lbs. |
| Height | 0.5 in. |
| Extension | 22 in. |
| Quantity | 10 |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 23 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | Yes |
| Extension Type | Full Extension |
| Soft Close | Yes |
| Cabinet Type | Panel (Frameless) |
| Self Closing | Yes |
| Detent | Yes |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Approved for Commercial Use | No |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Installation Hardware Included | Yes |
| Color | Cadmium |
