European style roller and polyslide 3/4 extension bottom mount drawer slide, to store all the items you need up to 75lb. This type of slide is a popular solution because it has a great balance of simple, smooth function and weight capacity. This model wraps underneath the bottom edge on each side of a drawer and can be screwed in place either through the bottom or side; the edge wrapping provides more stability than the other common euro side mount drawer slide. This slide is self closing (it will shut itself during last few inches of travel) with built in stop – simply lift drawer up and over stop to remove from cabinet. Can be adapted to a face frame cabinet application using included rear brackets – see our model P1700/BKT-W bracket also available separately for replacement. Mounting hardware and instructions included for DIY friendly installation.
Features:
Roller operation with lift-out disconnect
Self-closing slides pull the drawer shut in the last few inches
75 lb. load capacity
Durable epoxy finish
Package of five (5)

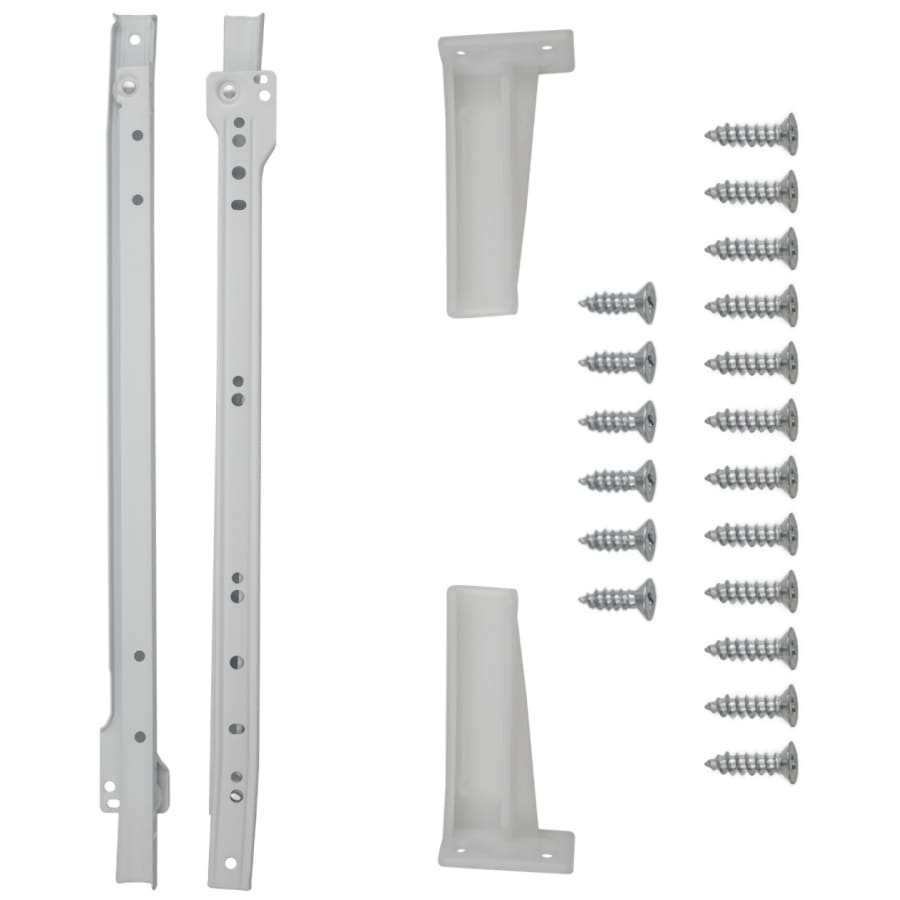

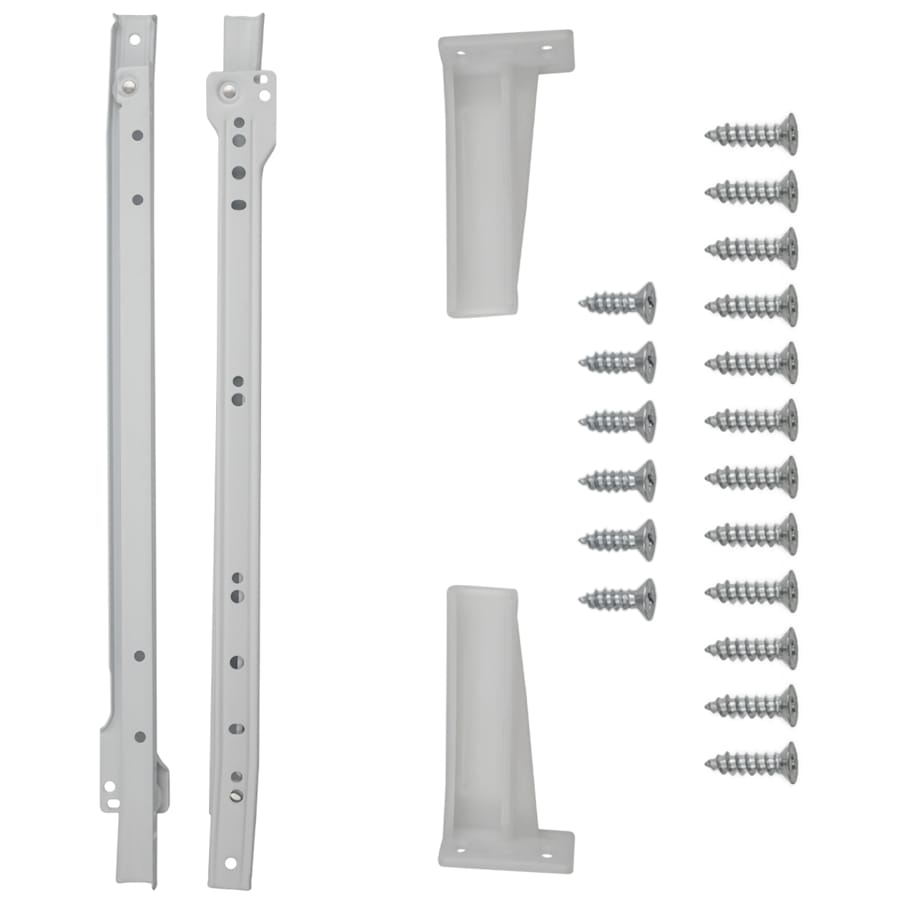

All essential mounting hardware included for an effortless installation
Specifications:
Drawer Length: 19″
Slide Length: 18″
Extension Type: 3/4 Extension
Slide Type: Euro Slide
Weight Capacity: 75 lbs.
Material: Steel
Quantity: 10
Country of Origin: China
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware 1700 Collection
Specifications
| Height | 0.38 in. |
| Width | 2.19 in. |
| Product Weight | 5.9 lbs. |
| Length | 18 in. |
| Nominal Length | 18 in. |
| Extension | 13.5 in. |
| Quantity | 10 |
| Max Capacity (Pounds) | 75 lbs. |
| Drainboard Length | 19 in. |
| Approved for Commercial Use | No |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Installation Hardware Included | Yes |
| Insulation Type | Bottom Mount |
| Material | Steel |
| Self Closing | Yes |
| Soft Close | No |
| Swivel | No |
| Cabinet Type | Panel (Frameless) |
| Extension Type | 3/4 Extension |
| Detent | Yes |
| Disconnect Style | Lift-Out |
| Slide Type | Euro Slide |
| Color | White |
| Color Tone | Whites |
