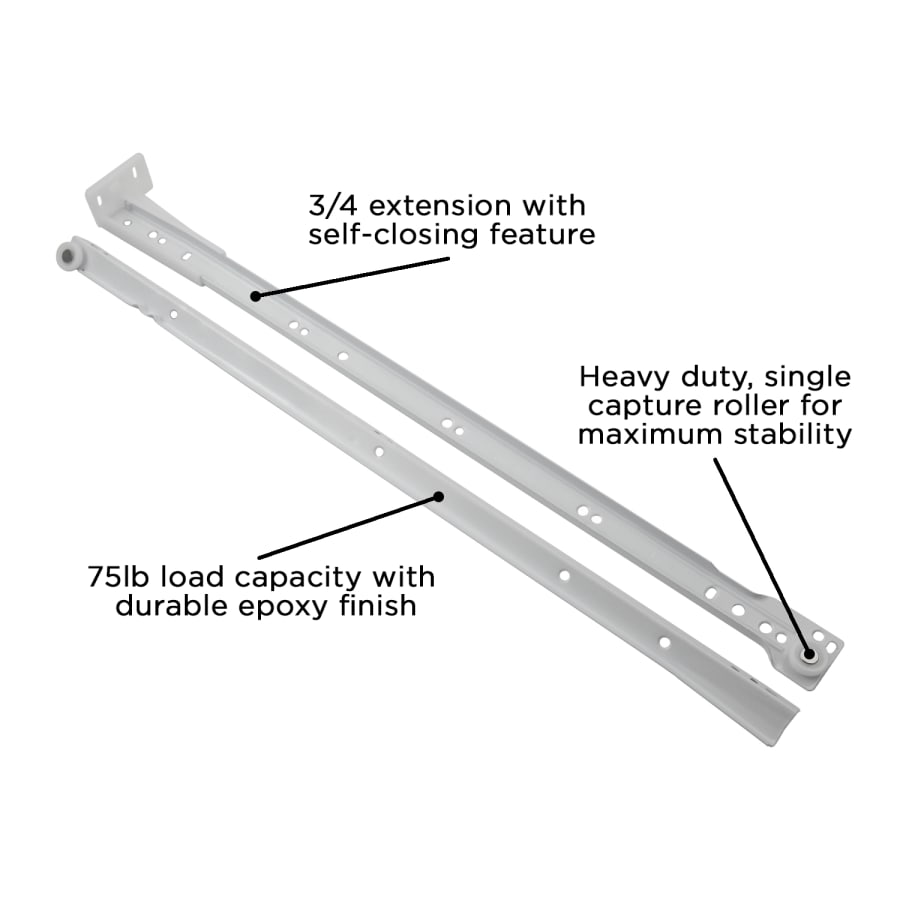

Features:
Designed to support up to 75 pounds of weight
Mounts to the bottom of the drawer
Provides easy access to the drawer with 3/4 extension slides
Rail disconnect allows easy removal of drawer
Slides can be installed in panel (frameless) cabinets
Includes a limited 90 day manufacturer warranty

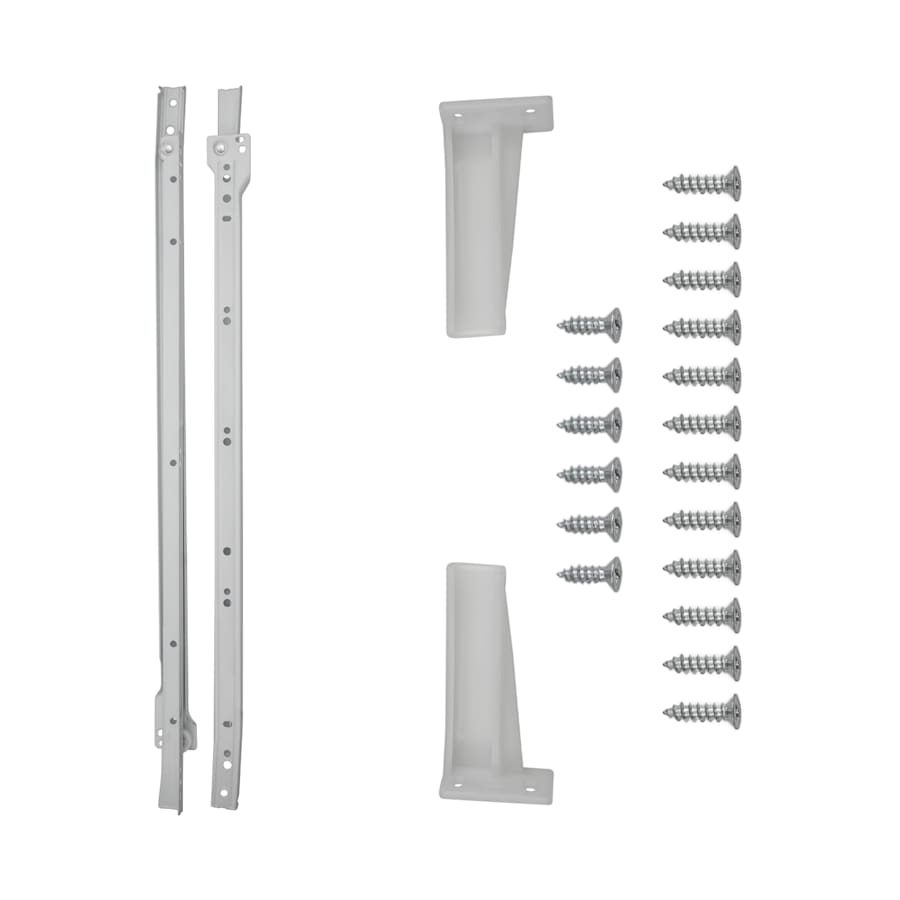

Left/right pair including screws
Product Technologies:
Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.

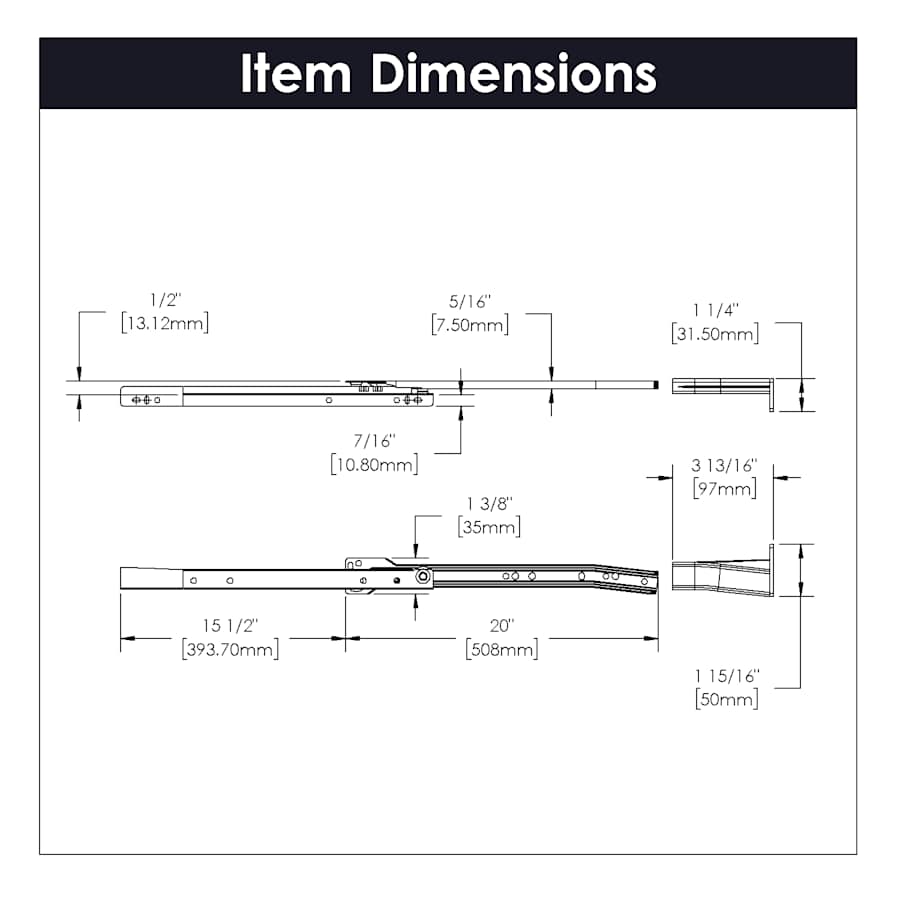

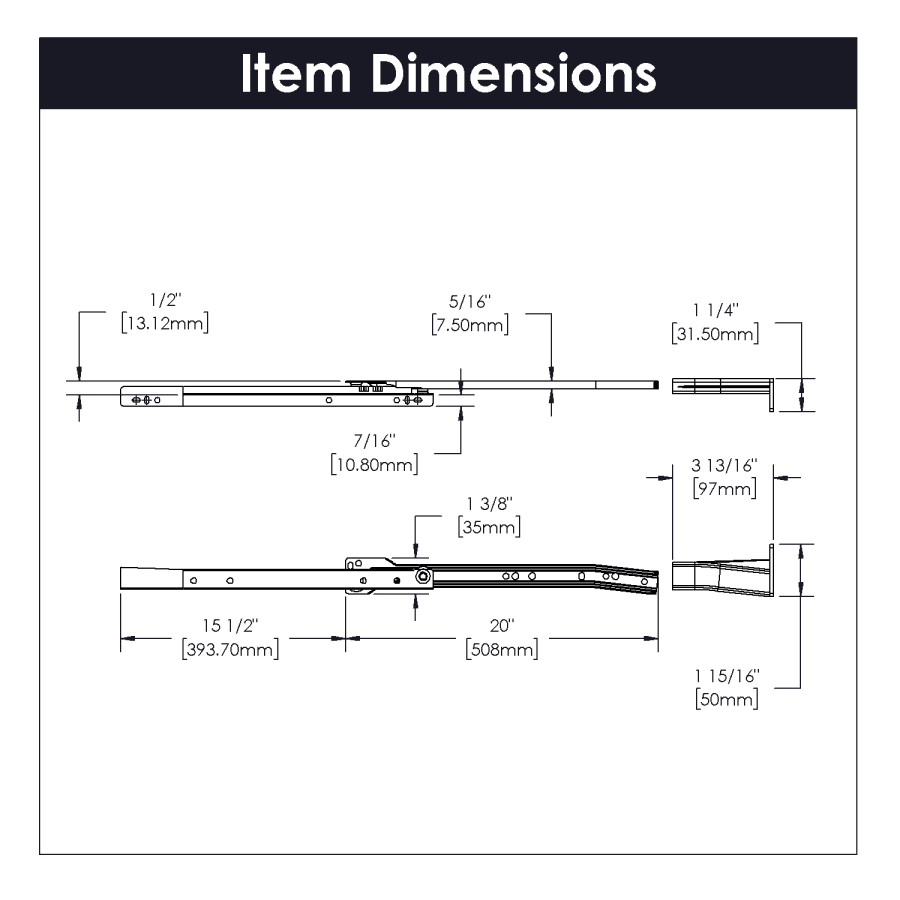

Specifications:
Recommended Drawer Length: 20-1/2″
Slide Length: 20″
Extension Type: 3/4 Extension
Slide Type: Euro Slide
Weight Capacity: 75 lbs
Material: Steel
Cabinet Type: Panel
Quantity: 2
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware 1700 Collection
Specifications
| Insulation Type | Bottom Mount |
| Material | Steel |
| Thermostat | Contemporary |
| Mounting Type | Bottom Mount, Side Mount |
| Adjustable | No |
| Cabinet Type | Panel (Frameless) |
| Extension Type | 3/4 Extension |
| Soft Close | No |
| Push to Open | No |
| Self Closing | Yes |
| Detent | No |
| Disconnect Style | Rail |
| Slide Type | Euro Slide |
| Length | 20 in. |
| Product Weight | 1.3 lbs. |
| Nominal Length | 20 in. |
| Quantity | 2 |
| Extension | 20 in. |
| Max Capacity (Pounds) | 75 lbs. |
| Drainboard Length | 20.5 in. |
| Installation Hardware Included | Yes |
| Approved for Commercial Use | No |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Series | 1700 |
| Color | White |
| Color Tone | Whites |
