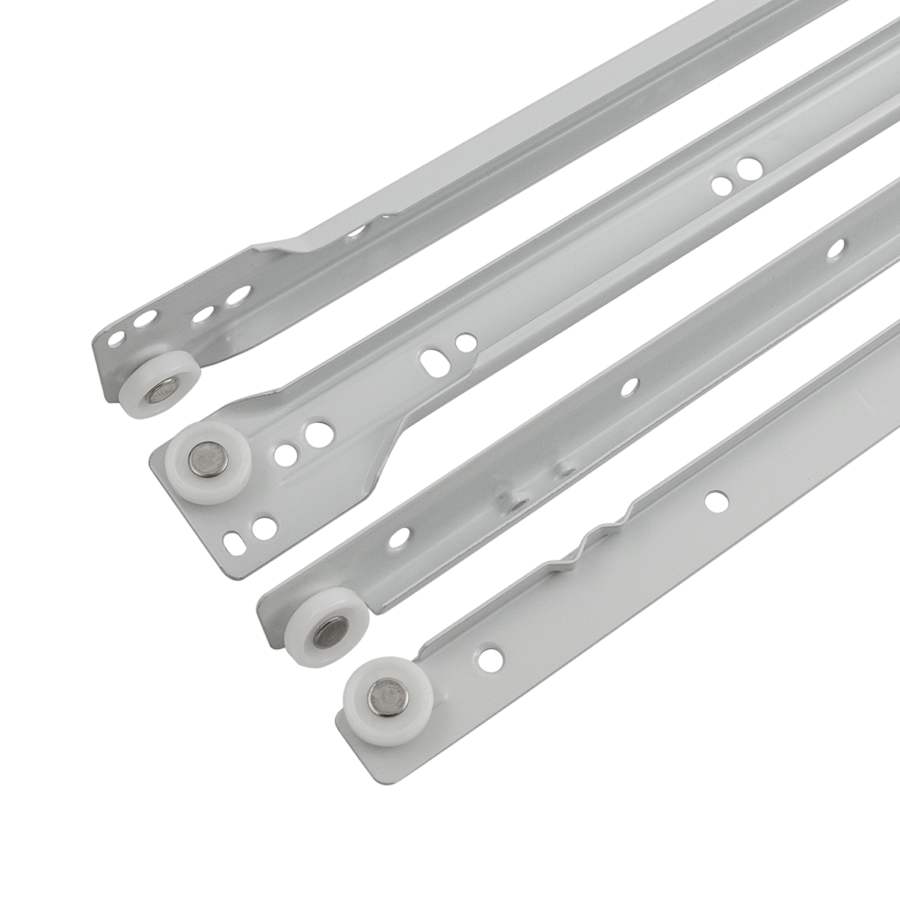

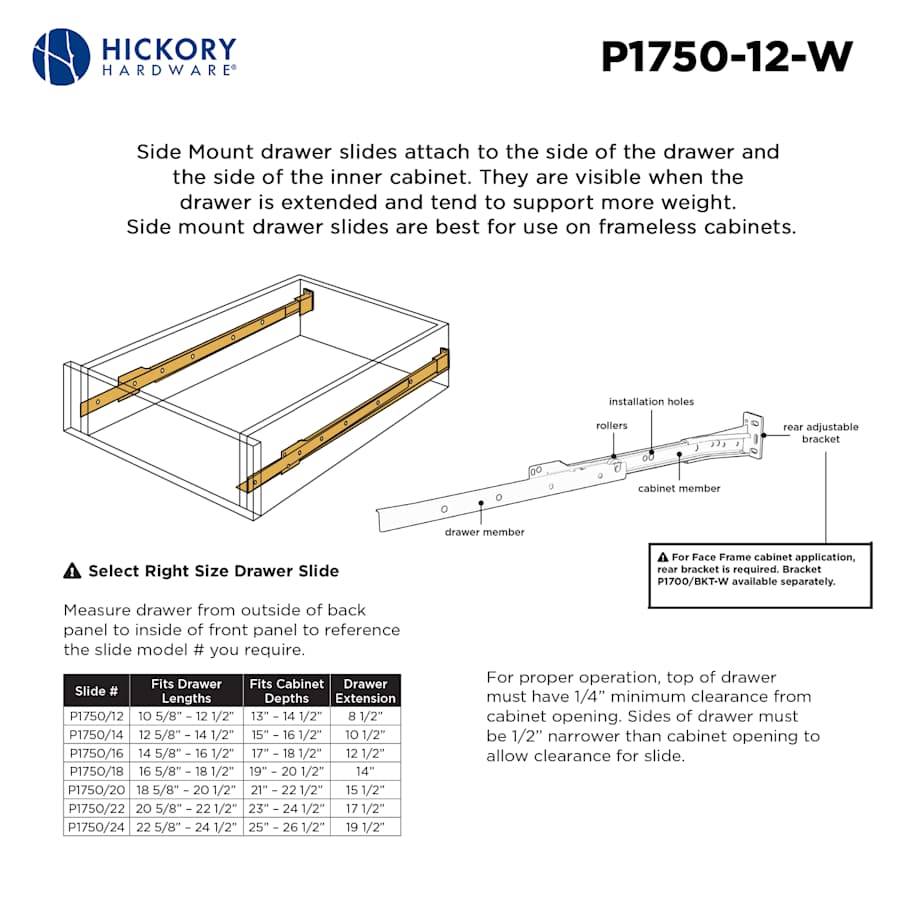

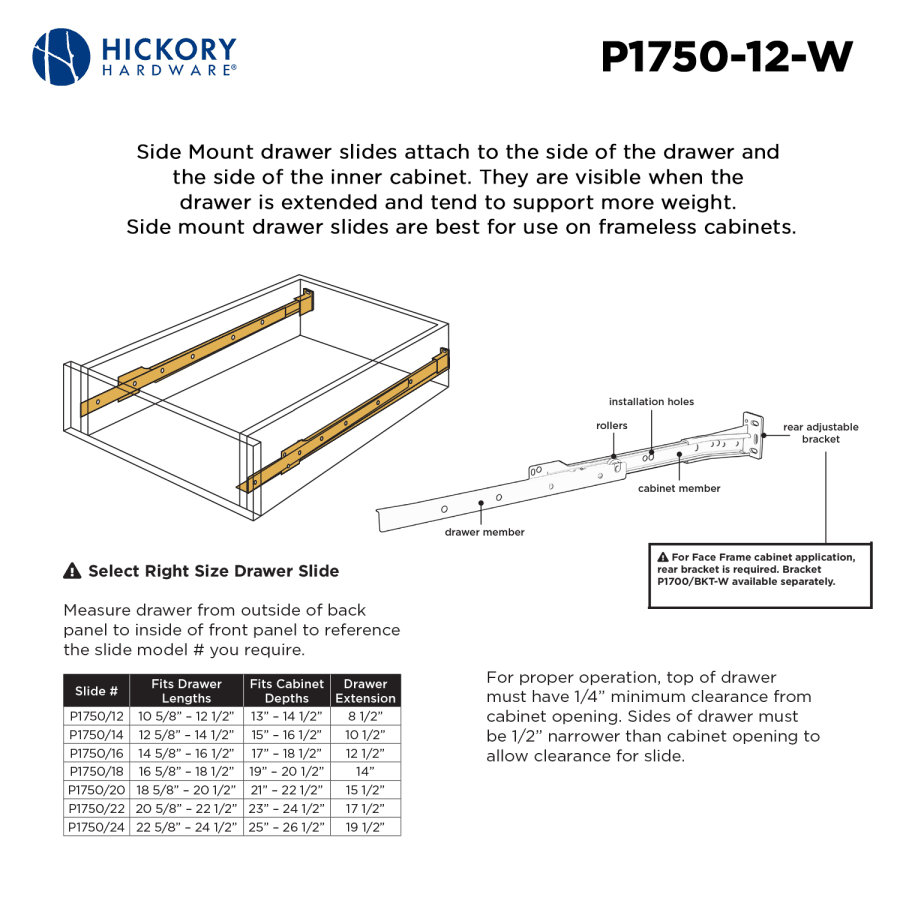

European style roller and polyslide 3/4 extension side mount drawer slide, to store all the items you need up to 75lb. This type of slide is a popular solution because it has a great balance of simple, smooth function and weight capacity. This slide is self closing (it will shut itself during last few inches of travel) with built in stop – simply lift drawer up and over stop to remove from cabinet. Designed for frameless cabinet but can be adapted to a face frame cabinet application using our model P1700/BKT-W bracket (available separately). Mounting hardware and instructions included for DIY friendly installation.
Features:

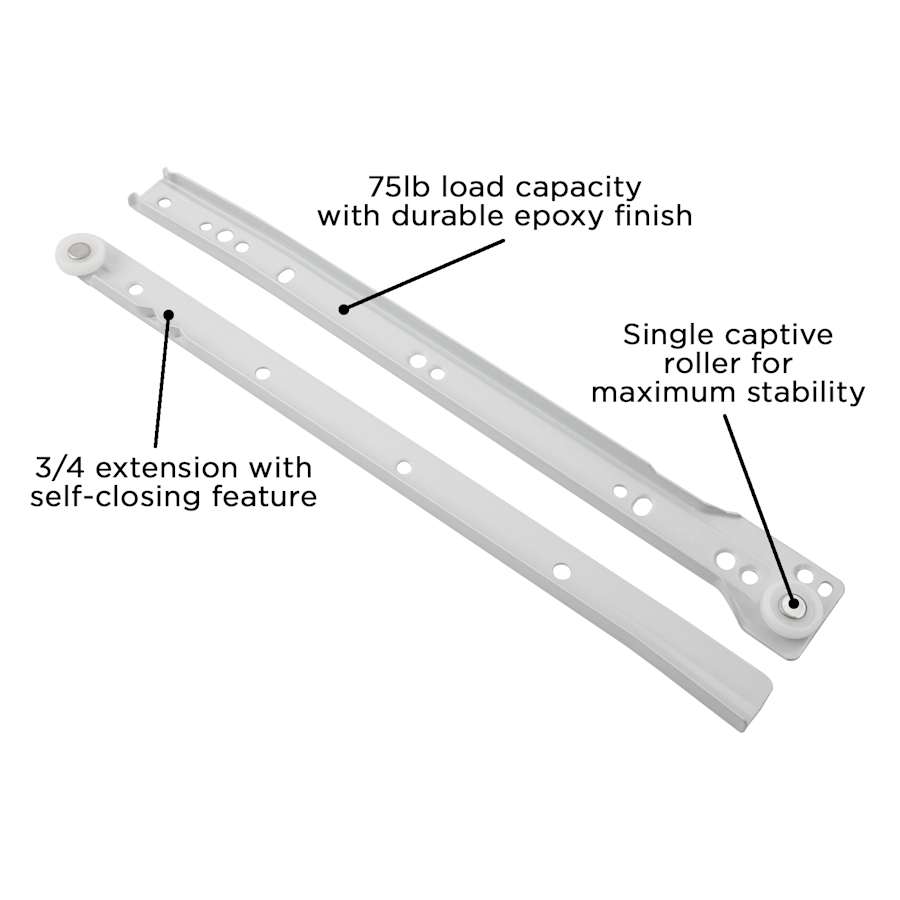

Roller operation with lift-out disconnect
Self-closing slides pull the drawer shut in the last few inches
75 lb. load capacity
Durable epoxy finish
Package of five (5)

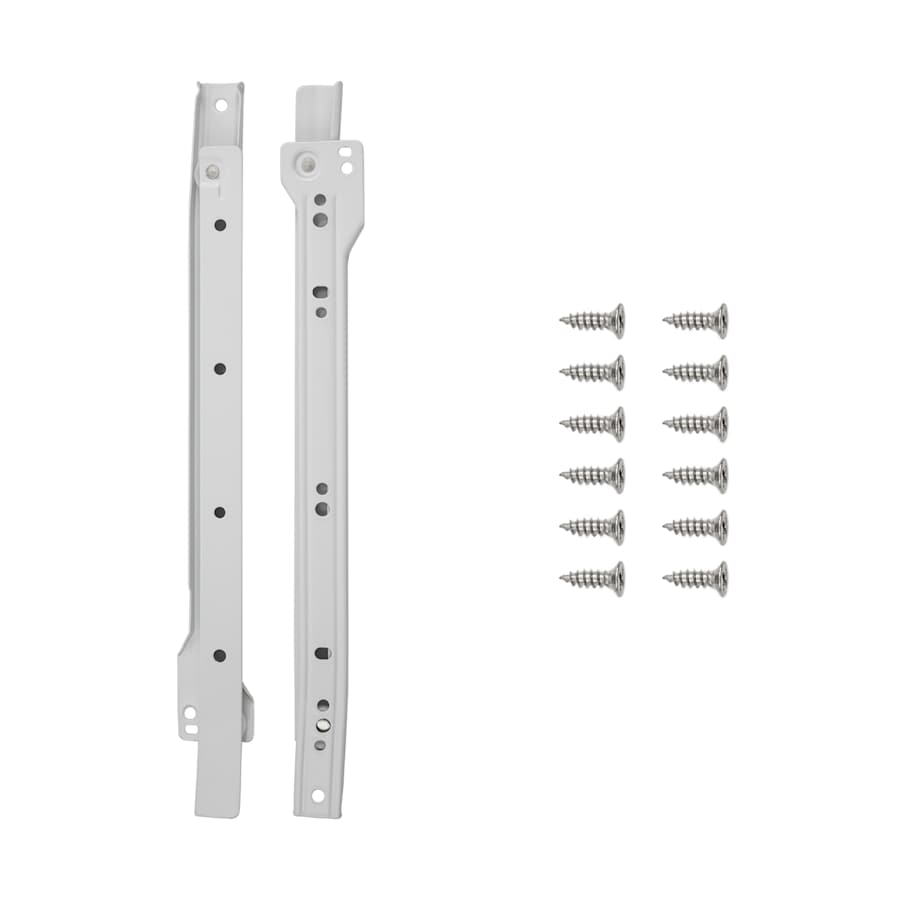

All essential mounting hardware included for an effortless installation

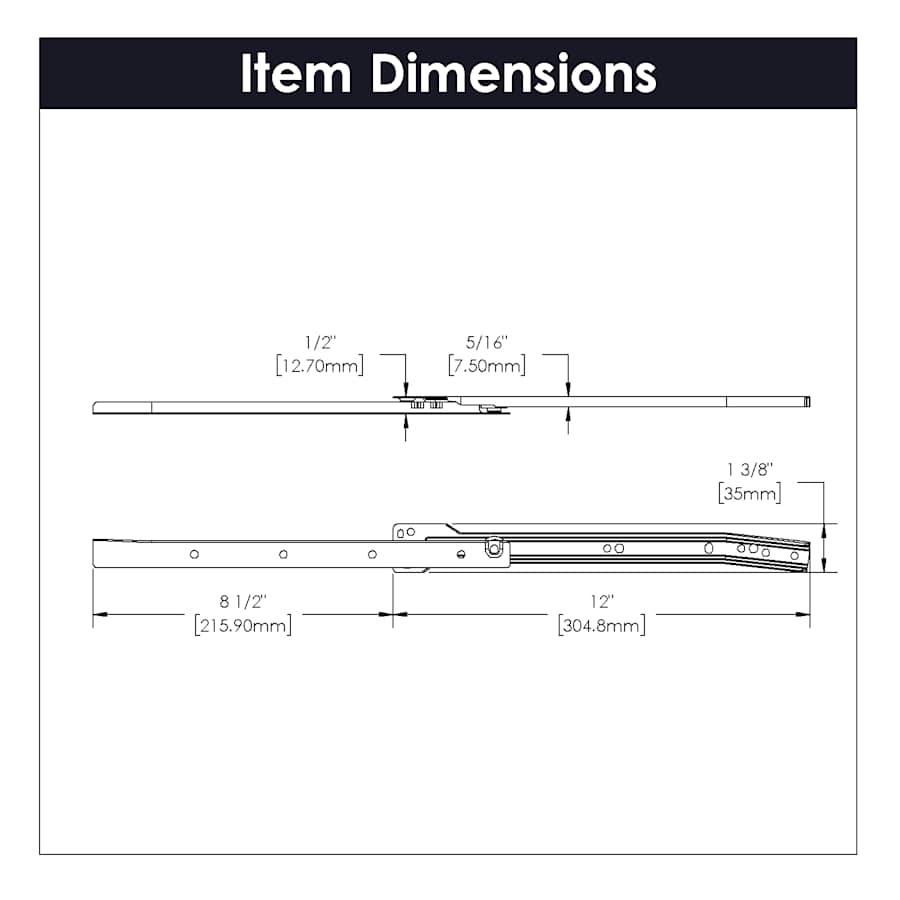

Specifications:
Drawer Length: 13″
Slide Length: 12″
Extension Type: 3/4 Extension
Slide Type: Euro Slide
Weight Capacity: 75 lbs.
Material: Steel
Quantity: 10
Country of Origin: China
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware 1750 Collection
Specifications
| Extension | 9 in. |
| Height | 0.38 in. |
| Width | 1.56 in. |
| Length | 12 in. |
| Product Weight | 3.5 lbs. |
| Quantity | 10 |
| Max Capacity (Pounds) | 75 lbs. |
| Nominal Length | 12 in. |
| Drainboard Length | 13 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Swivel | No |
| Extension Type | 3/4 Extension |
| Soft Close | No |
| Cabinet Type | Panel (Frameless) |
| Self Closing | Yes |
| Detent | Yes |
| Disconnect Style | Lift-Out |
| Slide Type | Euro Slide |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Installation Hardware Included | Yes |
| Color | White |
