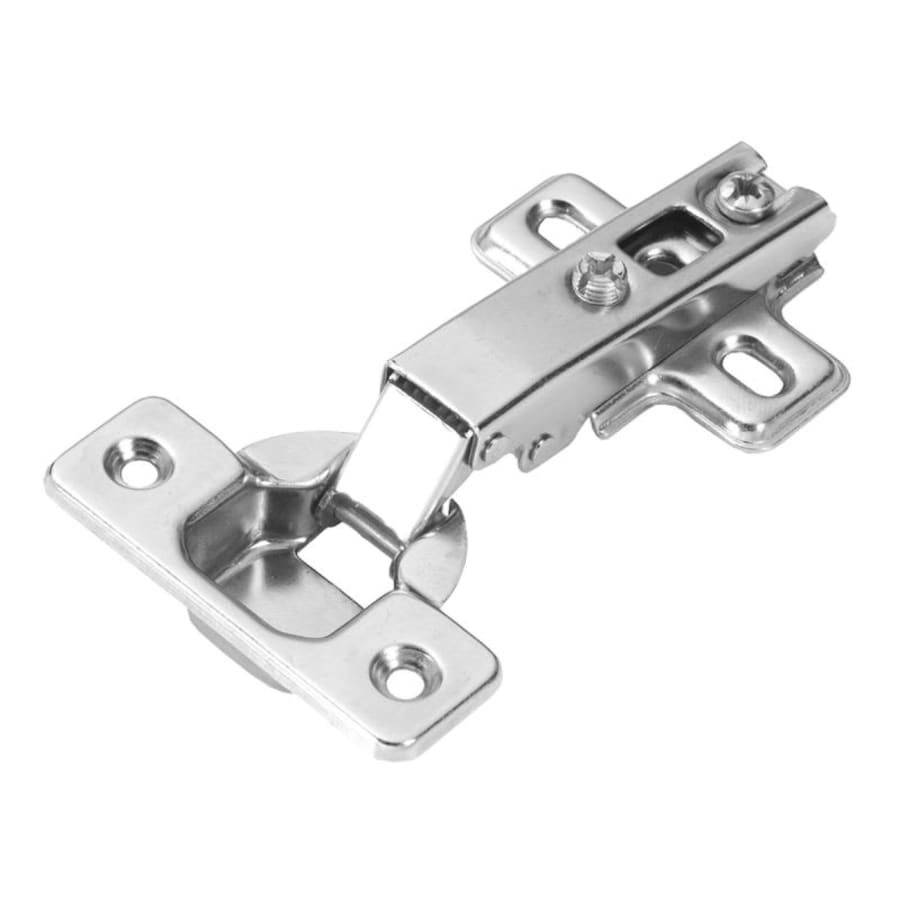

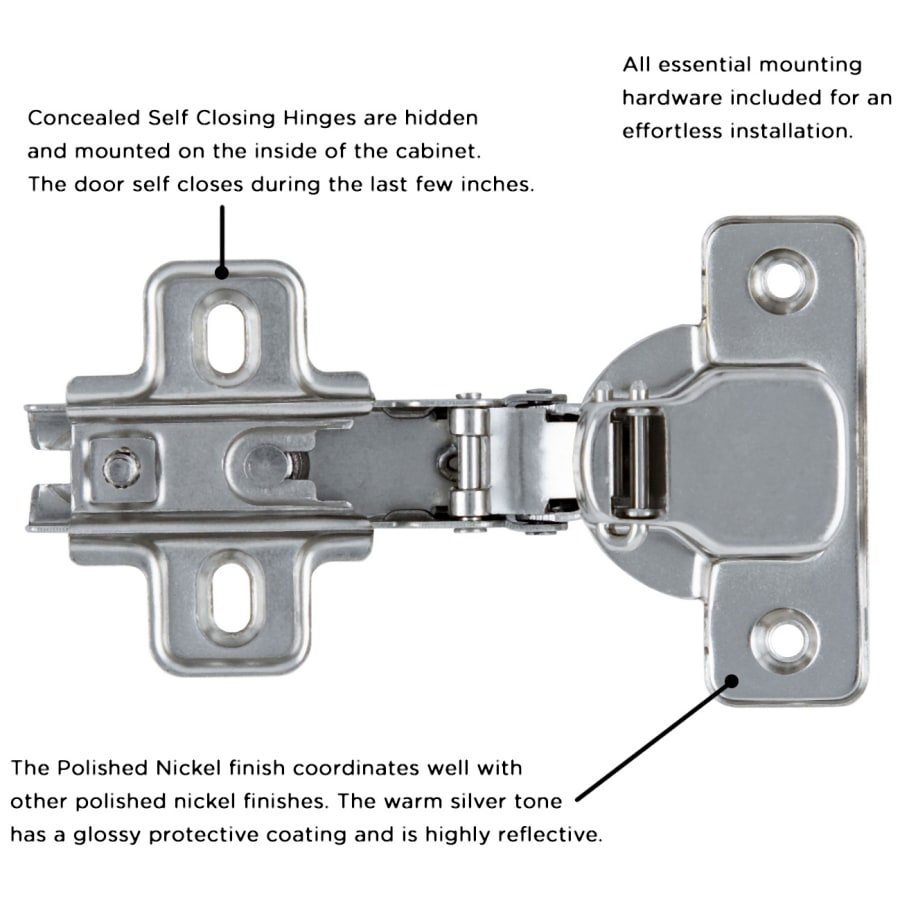

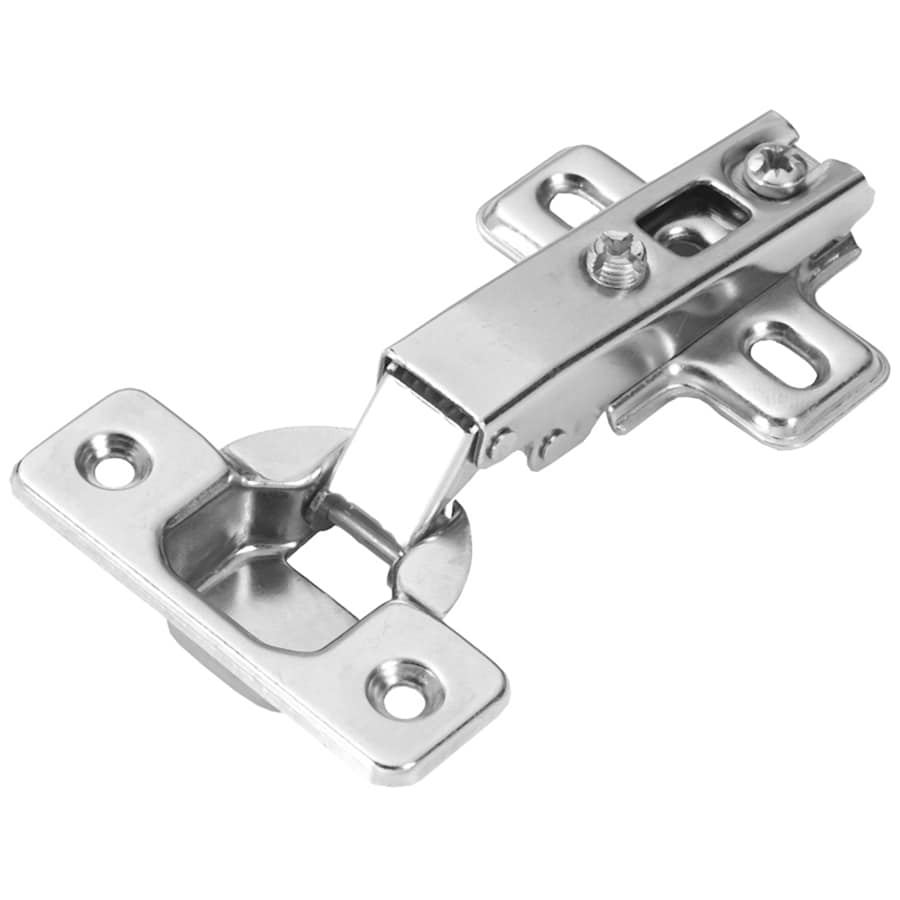

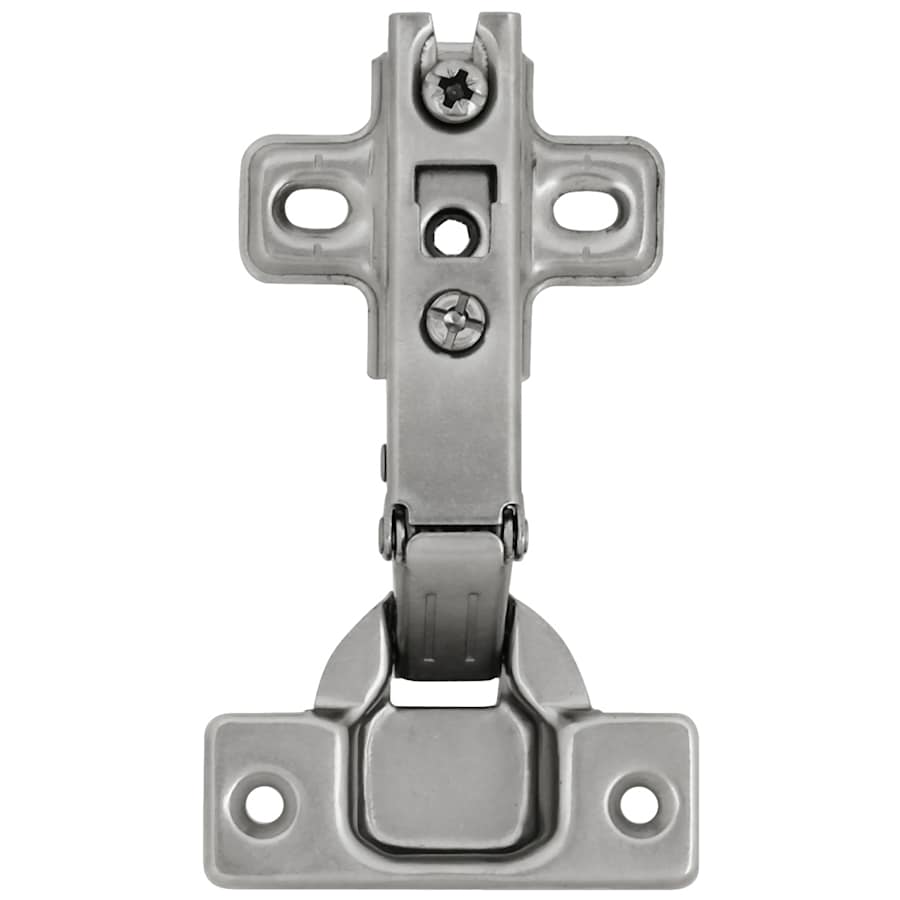

This European style concealed hinge is for frameless cabinets – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. This full overlay model is for minimal cabinet reveal and cleanest overall presentation. These types of hinges are typically used at the end of cabinet runs. Features baseplate with slide-on hinge mounting for easy door removal and installation, and micro side to side adjustment. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation. Soft close version also available (model # P5305-14) that quiets the door closing.
Features:
Full overlay for frameless cabinets
Micro side to side adjustment
105 degree opening angle
Package of twenty (20)
All essential mounting hardware included for an effortless installation

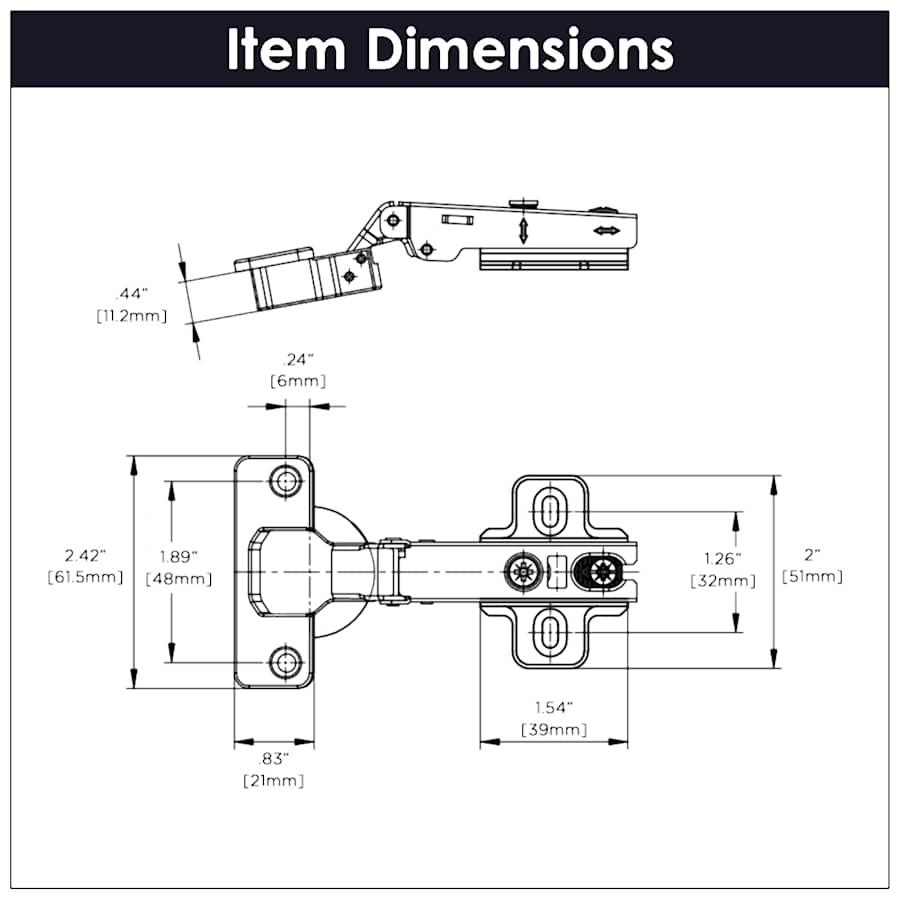

Specifications:
Width: 2-7/16″
Length: 4-1/8″
Hinge Mount: Full Overlay
Opening Angle: 105
Material: Steel
Installation Type: Screws
Cup Depth: 1/2″
Cup Diameter: 1-3/8″
Boring Distance: 1/4″
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware Concealed Framelss Hinges Collection
Specifications
| Product Weight | 1.6 lbs. |
| Quantity | 20 |
| Overlay | Full |
| Bottom Diameter | 0.25 mm |
| Cup Depth | 0.47 in. |
| Cup Depth mm | 12 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 105 |
| Overlay mm | 19 mm |
| Insulation Type | Screw |
| Material | Steel |
| Soft Close | No |
| Hinge Type | Concealed Euro |
| Cabinet Type | Panel (Frameless) |
| Bulk Pack | Yes |
| Adjustable Height | No |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | Yes |
| Demountable | Yes |
| Hinge Mount | Full Overlay |
| Self Closing | Yes |
| Arm Type | Full Cranked |
| Approved for Commercial Use | No |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Series | Concealed Framelss Hinges |
| Installation Hardware Included | Yes |
| Color | Bright Nickel, Polished Nickel |
| Color Tone | Nickel Tones |
