Features:
Single hinge is included in each order
Steel construction adds durability for a long lifespan
3-Way adjustability makes installation a breeze
All mounting hardware included
Product Technologies:

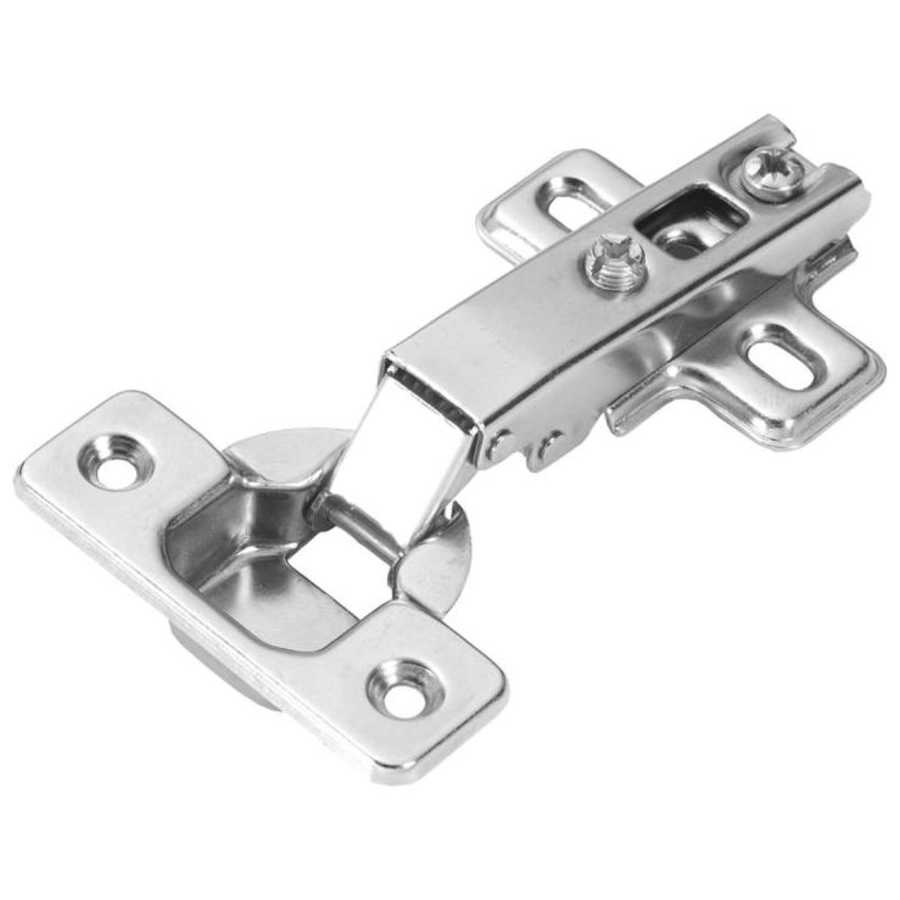

Full Overlay: A full overlay hinge is needed when the cabinet door you are mounting completely overlays the face frame of the cabinet itself. Full overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.
Specifications:
Cup Diameter: 35 mm
Bore Distance: 4 mm
Hinge Mount: Full Overlay
Cup Depth: 12 mm
Opening Angle: 105°
Depth Adjustment: Yes
Vertical Adjustment: Yes
Side to Side Adjustment: Yes
Material: Steel
Quantity: 1
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Material | Steel |
| Insulation Type | Screw |
| Hinge Type | Concealed Euro |
| Cabinet Type | Panel (Frameless) |
| Self Closing | No |
| Soft Close | No |
| Arm Type | Straight Arm |
| Adjustable Height | Yes |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
| Approved for Commercial Use | No |
| Installation Hardware Included | Yes |
| Quantity | 1 |
| Bottom Diameter | 4 mm |
| Cup Depth | 12 in. |
| Cup Diameter | 35 in. |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Opening Angle | 105 |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
