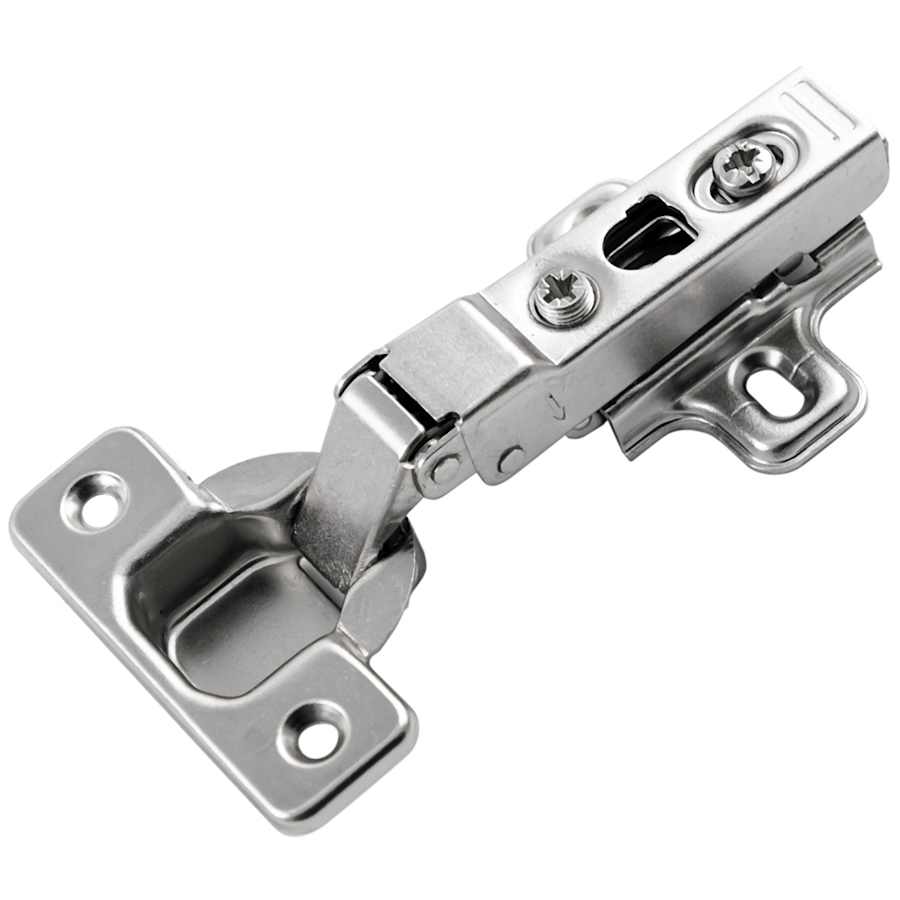

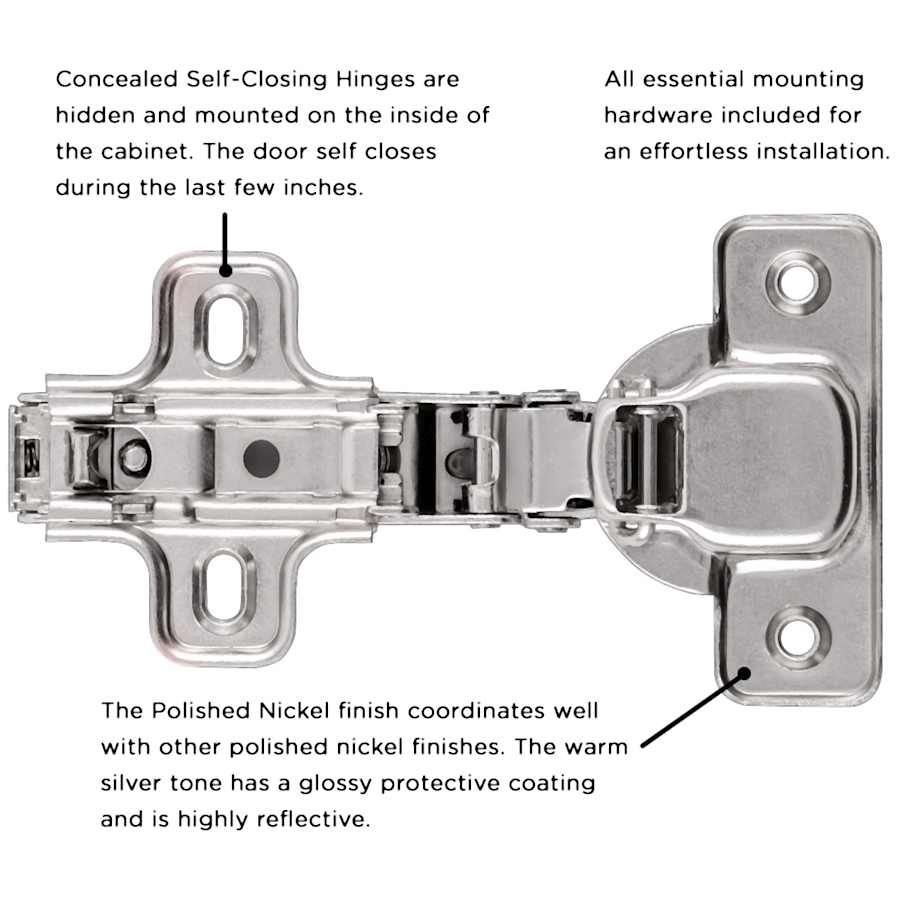

This European style concealed hinge is for frameless cabinets – a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. This half overlay model is for application where there are back to back doors, also known as twin overlay doors; install this hinge on shared panel so that each door is attached and swings open centrally, ideal for situation where space is confined and prevents otherwise awkward swinging of doors. Features include snap on baseplate with release lever for easy door removal and installation, and micro side to side adjustment. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation.
Features:
Half overlay for frameless cabinets
Micro side to side adjustment
105 degree opening angle
Package of two (2)

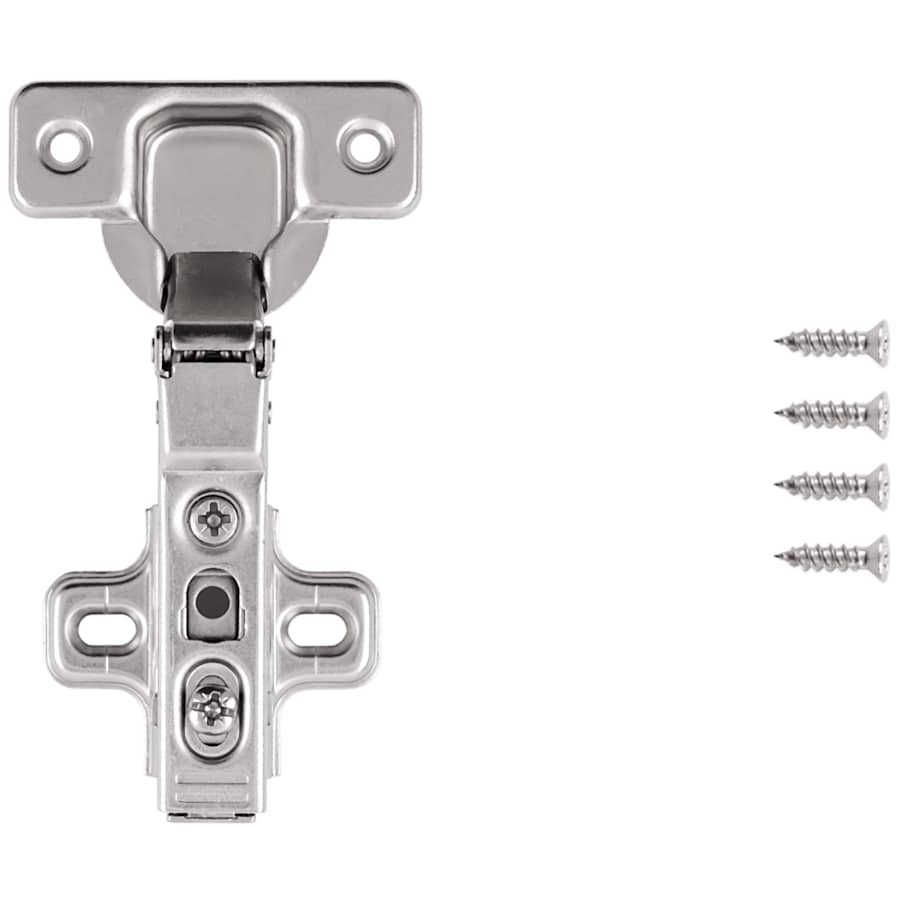

All essential mounting hardware included for an effortless installation

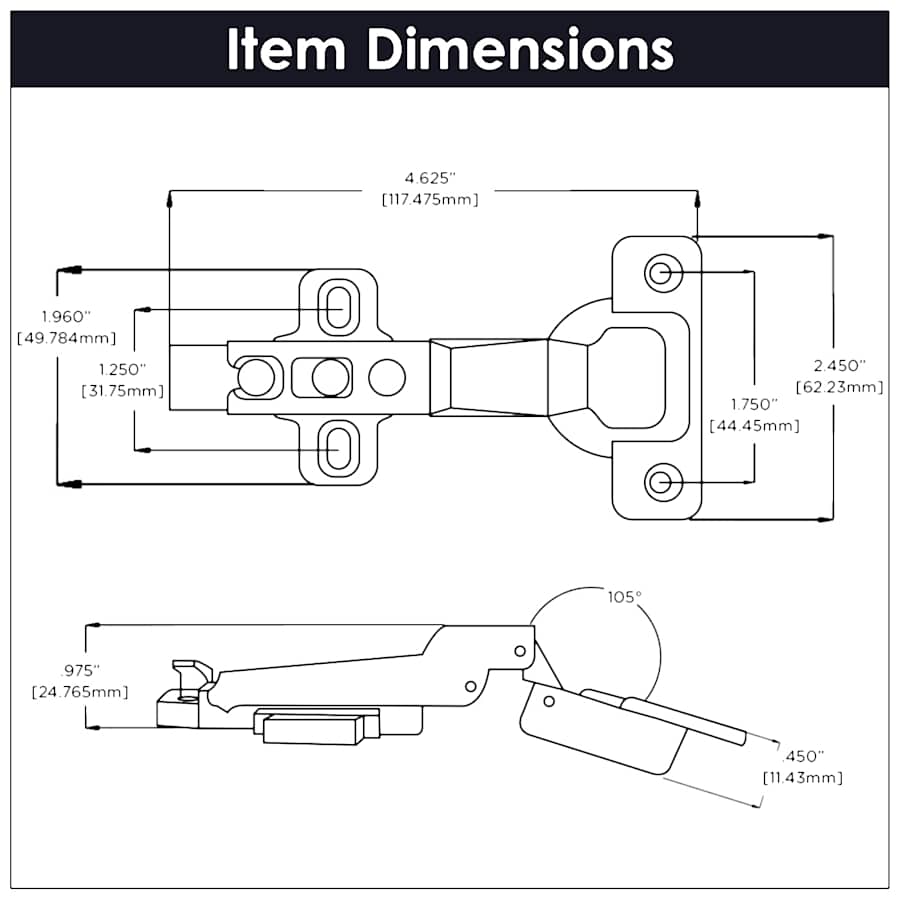

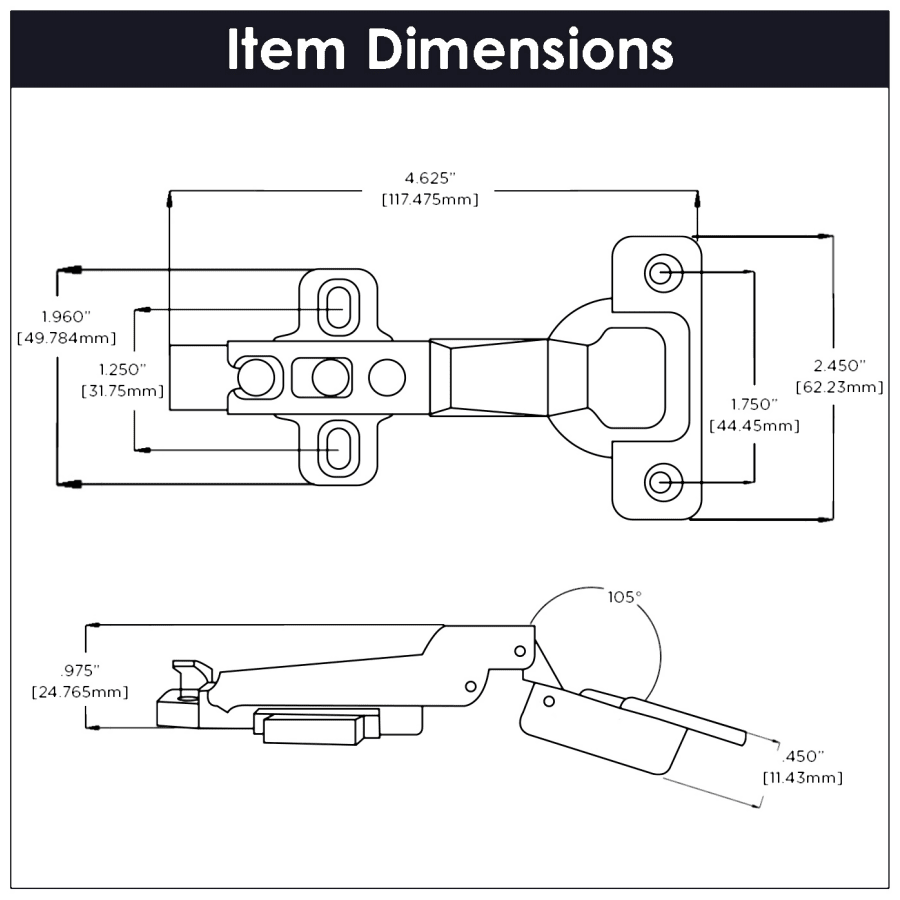

Specifications:
Width: 2-7/16″
Length: 4-3/8″
Hinge Mount: Partial Overlay
Opening Angle: 105
Material: Steel
Installation Type: Screws
Cup Depth: 1/2″
Cup Diameter: 1-3/8″
Boring Distance: 1/4″
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Installation Hardware Included | Yes |
| Insulation Type | Screw |
| Material | Steel |
| Self Closing | Yes |
| Hinge Type | Concealed Euro |
| Bulk Pack | Yes |
| Soft Close | No |
| Arm Type | Half Cranked |
| Cabinet Type | Panel (Frameless) |
| Adjustable Height | No |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | Yes |
| Demountable | Yes |
| Hinge Mount | Partial Overlay |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Product Weight | 0.2 lbs. |
| Quantity | 2 |
| Opening Angle | 105 |
| Cup Depth | 0.47 in. |
| Cup Depth mm | 12 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Overlay | Partial |
| Bottom Diameter | 0.25 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
