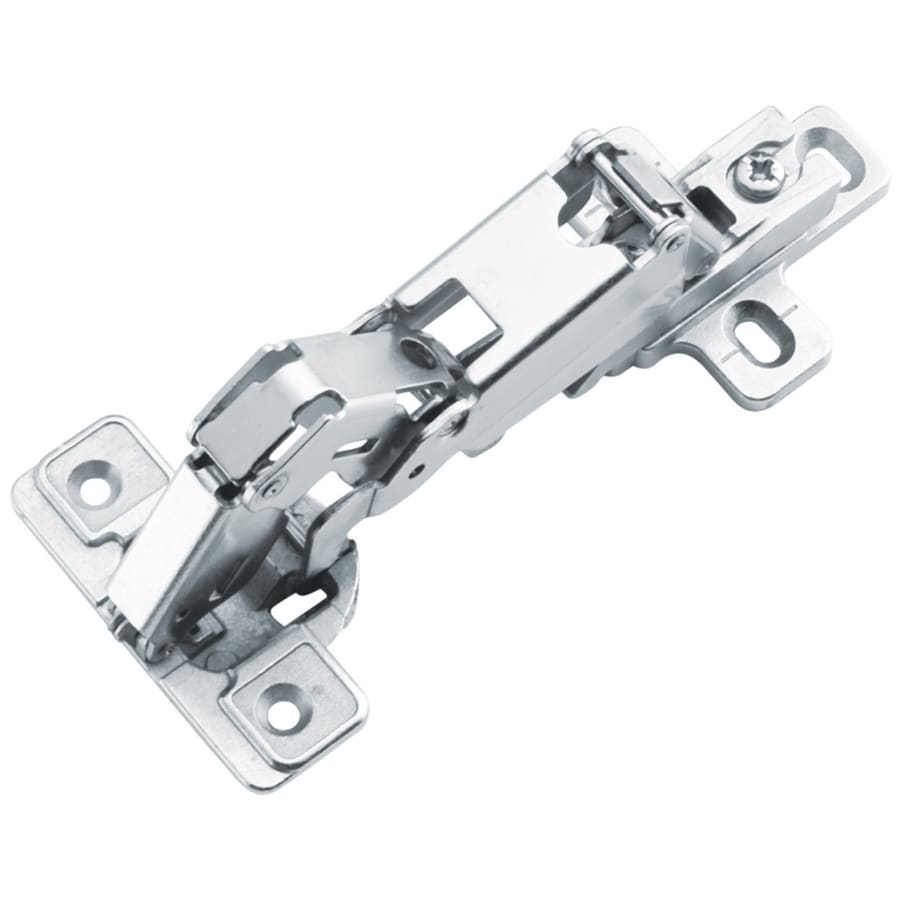

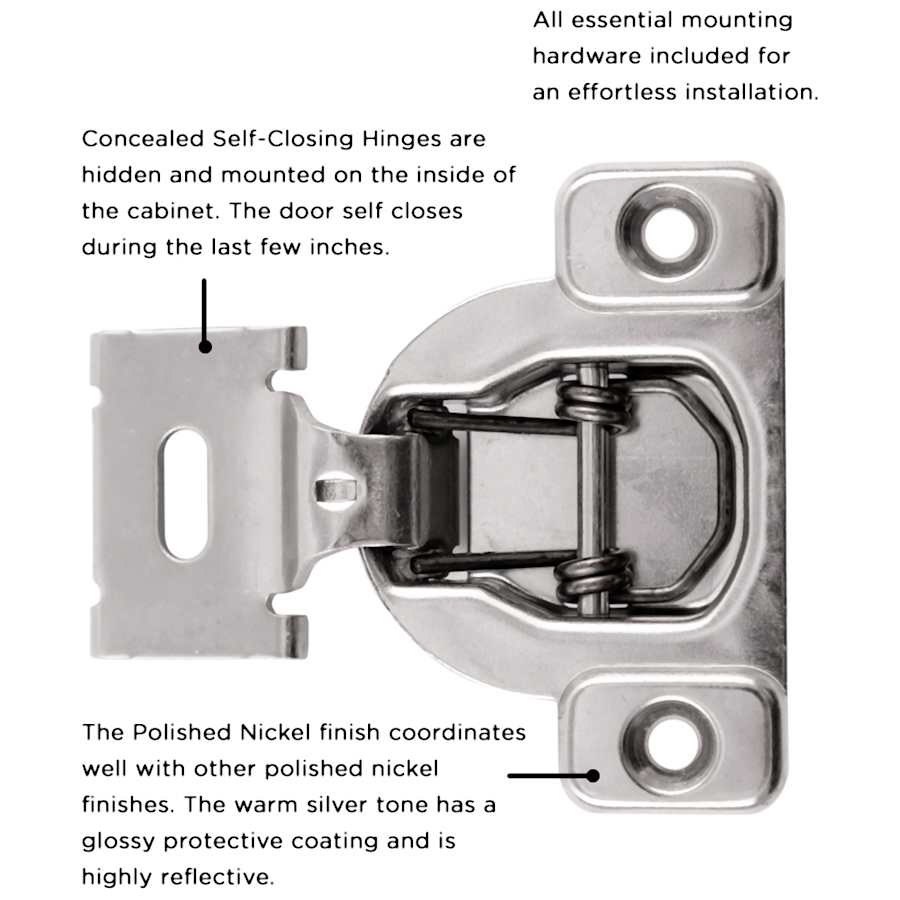

This European style concealed hinge is necessary for your Lazy Susan or pull out application project – with a wide opening angle, the hinge swings the door well clear of the cabinet opening and provides plenty of clearance for pull-out shelves and reach-in access to the cabinet. Features baseplate with slide-on hinge mounting for easy door removal and installation, and micro side to side adjustment. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation. Note while this hinge would provide swing out door attachment to Lazy Susan cabinet, other hinges may be necessary for connecting extended pie corner doors – see our model HH75110-14 hinge for pie corner application. See our model HH075224-14 for 165 degree hinge with extra functionality.
Features:
Full overlay for frameless cabinets
Micro side to side adjustment
165 degree opening angle
Package of five (5)

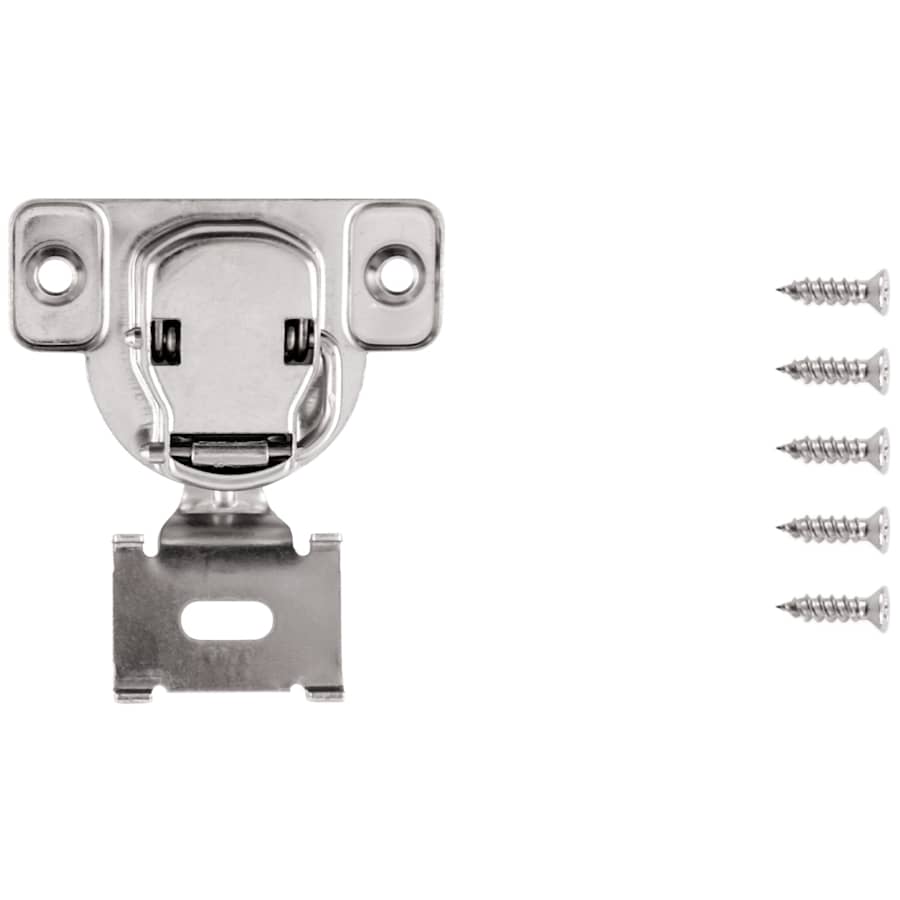

All essential mounting hardware included for an effortless installation

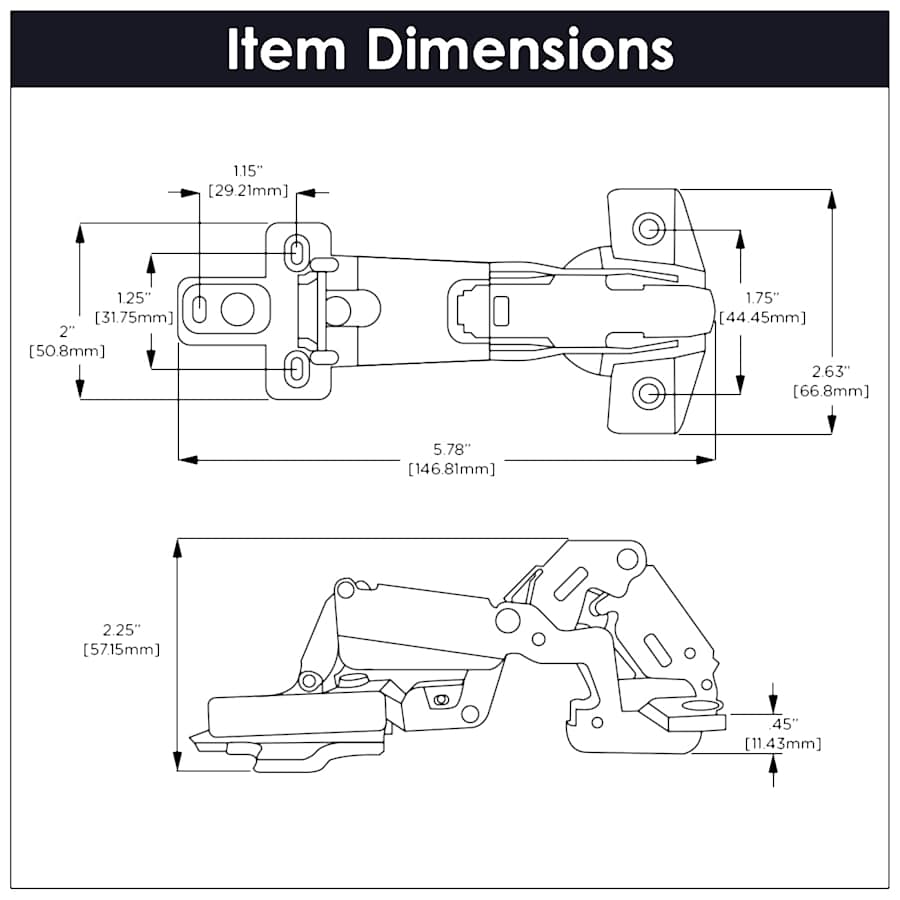

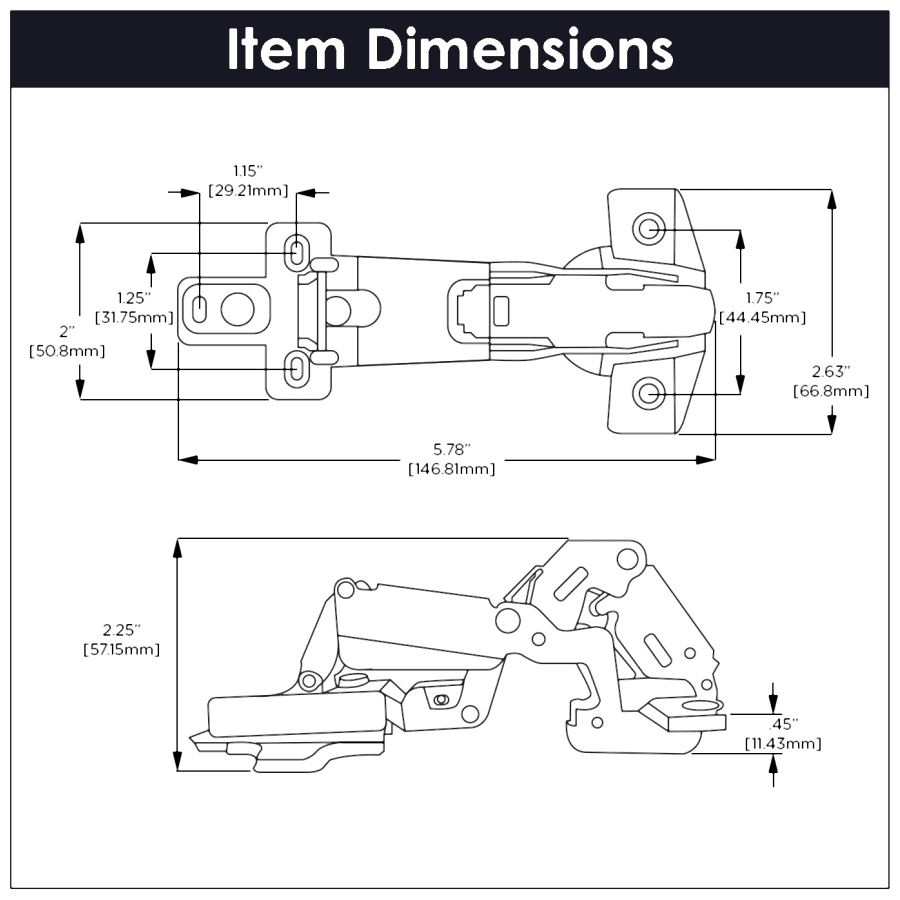

Specifications:
Width: 2-7/16″
Length: 5-1/2″
Hinge Mount: Full Overlay
Opening Angle: 165
Material: Steel
Installation Type: Screws
Cup Depth: 1/2″
Cup Diameter: 1-3/8″
Boring Distance: 1/4″
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Product Weight | 2.1 lbs. |
| Quantity | 10 |
| Cup Depth | 0.47 in. |
| Cup Depth mm | 12 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 165 |
| Bottom Diameter | 0.25 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Overlay | Full |
| Insulation Type | Screw |
| Material | Steel |
| Bulk Pack | Yes |
| Adjustable Height | No |
| Cabinet Type | Panel (Frameless) |
| Soft Close | No |
| Hinge Type | Concealed Euro |
| Self Closing | Yes |
| Arm Type | Full Cranked |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | Yes |
| Demountable | Yes |
| Hinge Mount | Full Overlay |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Installation Hardware Included | Yes |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
