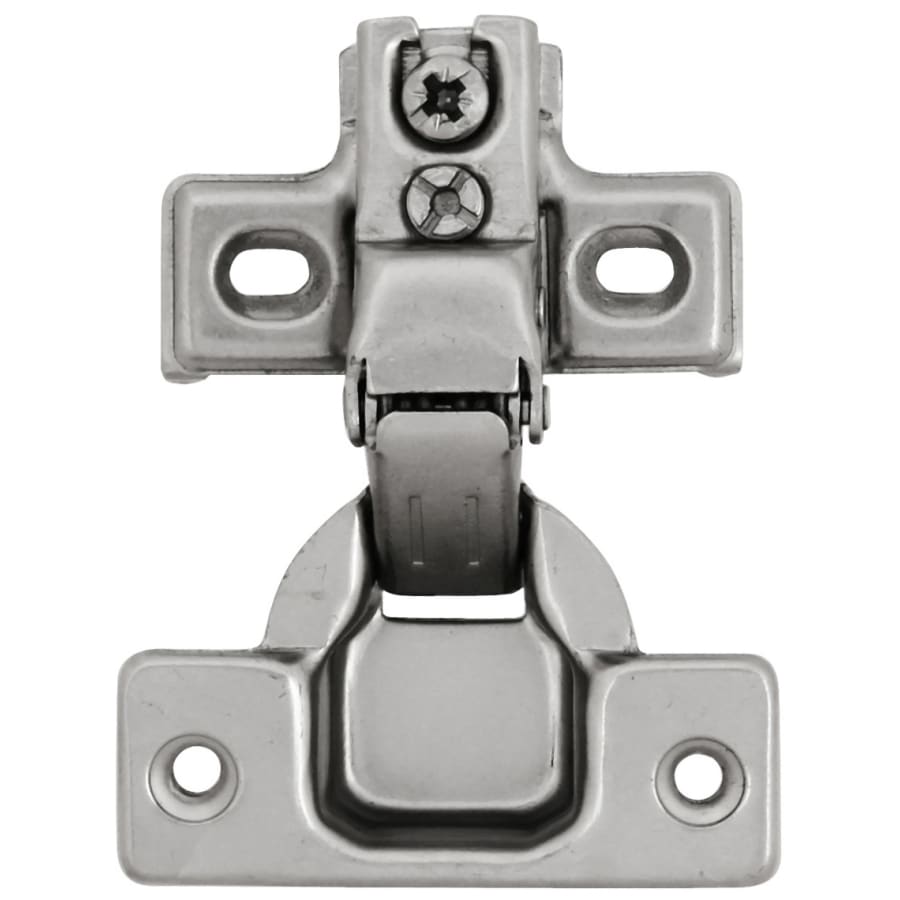

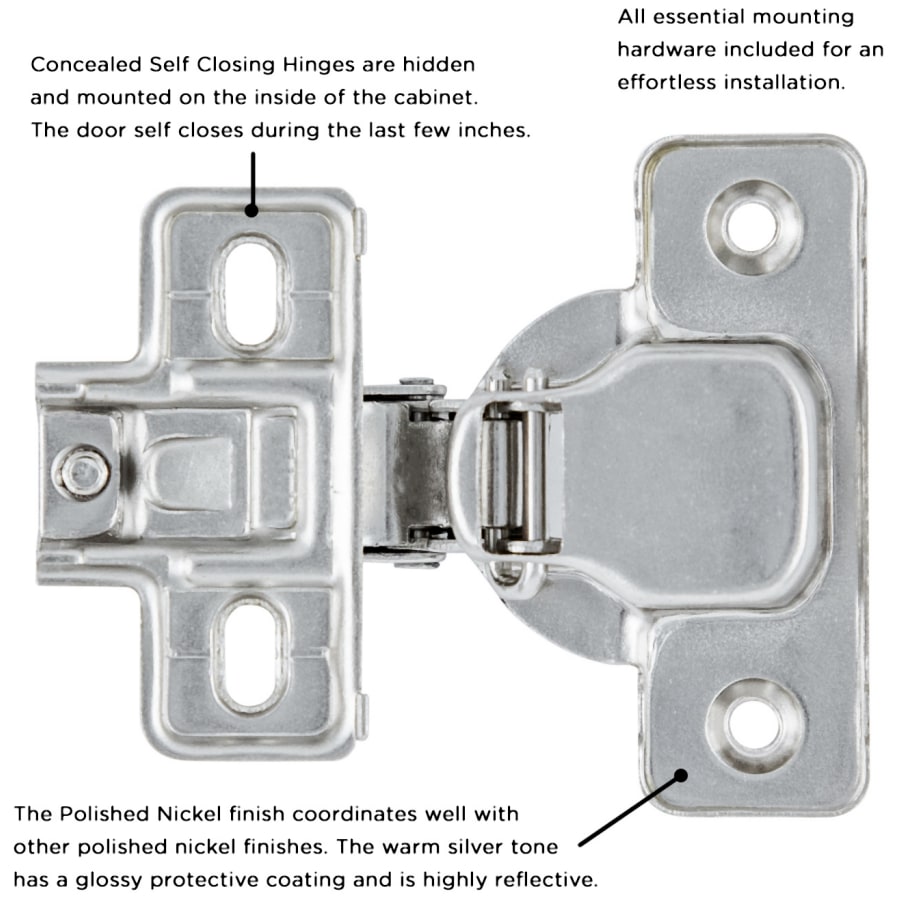

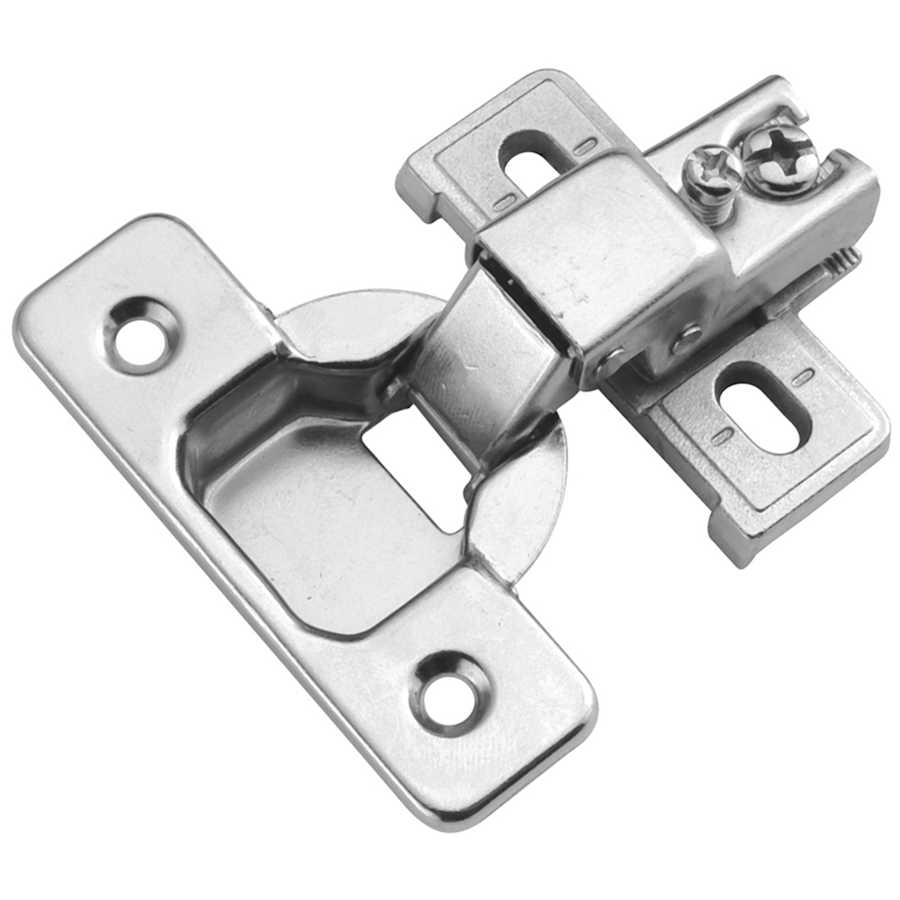

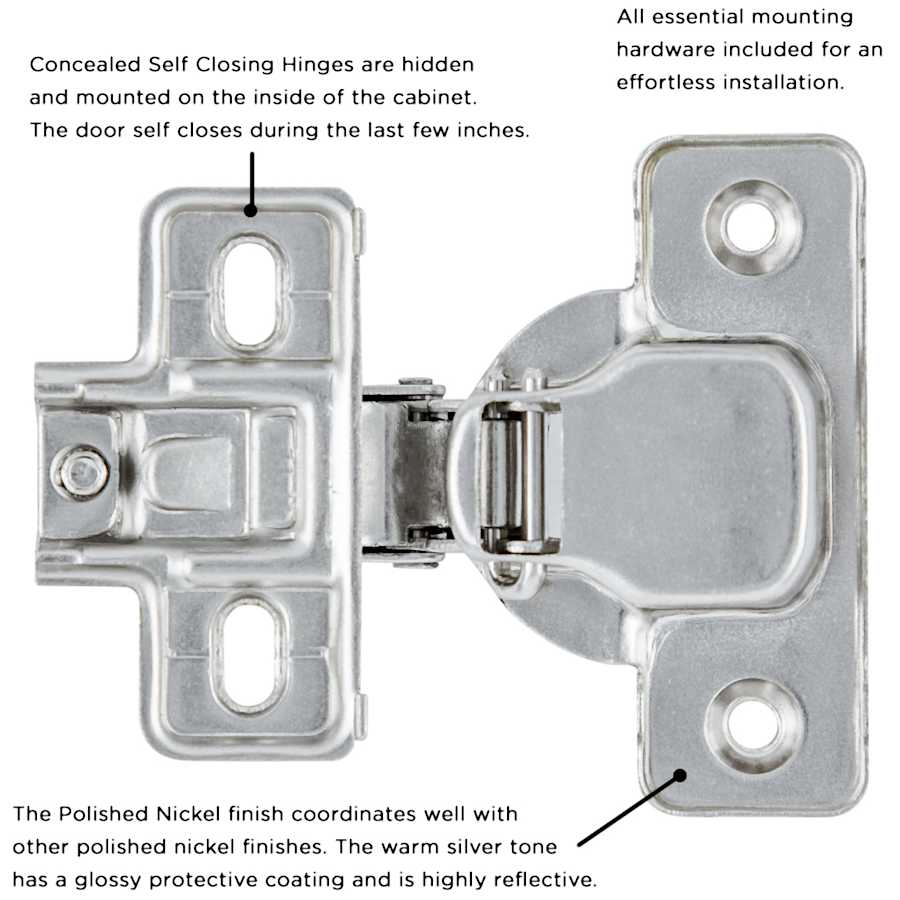

This European style concealed hinge is for face frame cabinets. This is a great upgrade or replacement for your kitchen build or remodel. If you desire a cleaner, more contemporary style then fully concealed hinges are the way achieve the look. Features baseplate with slide-on hinge mounting for easy door removal and installation, and micro side to side adjustment. This self-closing hinge pulls the door closed for the last few inches of travel and keeps it shut. Mounting hardware and instructions included for DIY friendly installation.
Features:
1/2 inch overlay for face frame cabinets
Micro side to side adjustment
105 degree opening angle
Package of twenty (20)
All essential mounting hardware included for an effortless installation

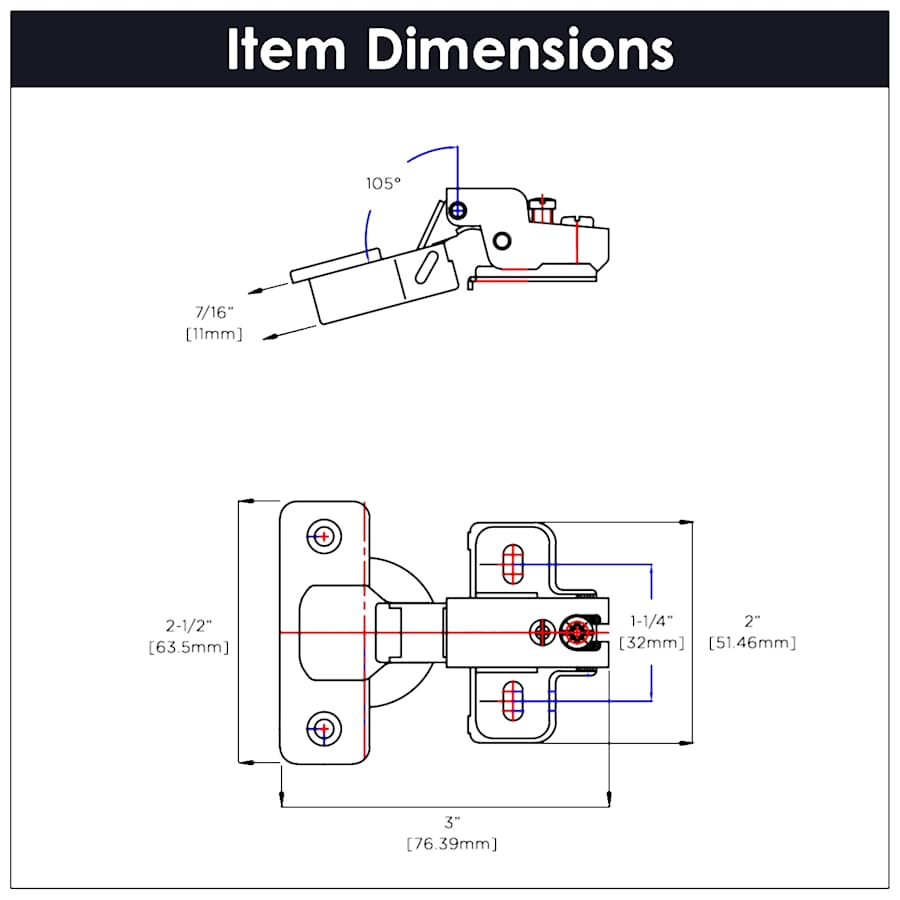

Specifications:
Width: 2-3/8″
Length: 2-7/8″
Hinge Mount: Partial Overlay
Opening Angle: 105
Material: Steel
Installation Type: Screws
Cup Depth: 1/2″
Cup Diameter: 1-3/8″
Boring Distance: 1/4″
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware Concealed Face Frame Hinges Collection
Specifications
| Material | Steel |
| Insulation Type | Screw |
| Adjustable Height | No |
| Soft Close | No |
| Cabinet Type | Face Frame |
| Self Closing | Yes |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | Yes |
| Arm Type | Half Cranked |
| Bulk Pack | Yes |
| Demountable | Yes |
| Hinge Mount | Partial Overlay |
| Hinge Type | Concealed Euro |
| Product Weight | 1.5 lbs. |
| Quantity | 20 |
| Bottom Diameter | 0.25 mm |
| Cup Depth | 0.47 in. |
| Cup Depth mm | 12 mm |
| Cup Diameter | 1.38 in. |
| Cup Diameter mm | 35 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 18 mm |
| Mount Centers | 1.77 in. |
| Mount Centers mm | 45 mm |
| Opening Angle | 105 |
| Overlay | 1/2 Inch |
| Installation Hardware Included | Yes |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Series | Concealed Face Frame Hinges |
| Color | Bright Nickel, Polished Nickel |
| Color Tone | Nickel Tones |
