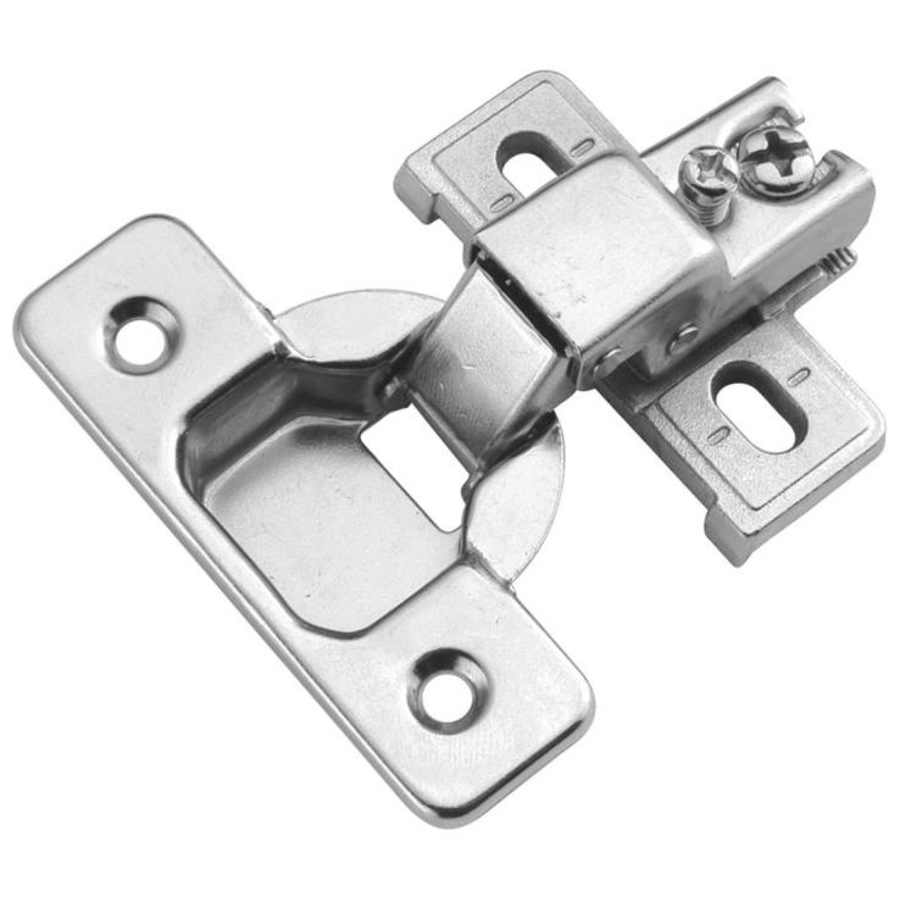

Features:
Single hinge is included in each order
Steel construction adds durability for a long lifespan
Reliable, self-closing power of dual compression springs
3-Way adjustability makes installation a breeze
All mounting hardware included
Product Technologies:
Partial Overlay: A partial overlay hinge is needed when the cabinet door you are mounting overlays the cabinet frame itself. Overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with partial concealment of the hardware itself when the cabinet door is closed.
Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.
Specifications:
Cup Diameter: 35 mm
Bore Distance: 2.5 mm
Hinge Mount: Partial Overlay
Mount Centers: 45 mm
Opening Angle: 105°
Depth Adjustment: Yes
Vertical Adjustment: Yes
Side to Side Adjustment: Yes
Material: Steel
Quantity: 1
Cup Depth: 13 mm
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Specifications
| Installation Hardware Included | Yes |
| Insulation Type | Screw |
| Material | Steel |
| Hinge Type | Concealed Euro |
| Cabinet Type | Face Frame |
| Self Closing | Yes |
| Soft Close | No |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Approved for Commercial Use | No |
| Quantity | 1 |
| Max Cabinet Door Thickness mm | 18 mm |
| Opening Angle | 105 |
| Bottom Diameter | 2.5 mm |
| Cup Depth | 13 in. |
| Cup Diameter | 35 in. |
| Max Cabinet Door Thickness | 0.75 in. |
| Mount Centers | 45 in. |
| Overlay | 1/2 Inch |
| Color | Polished Nickel |
| Color Tone | Nickel Tones |
