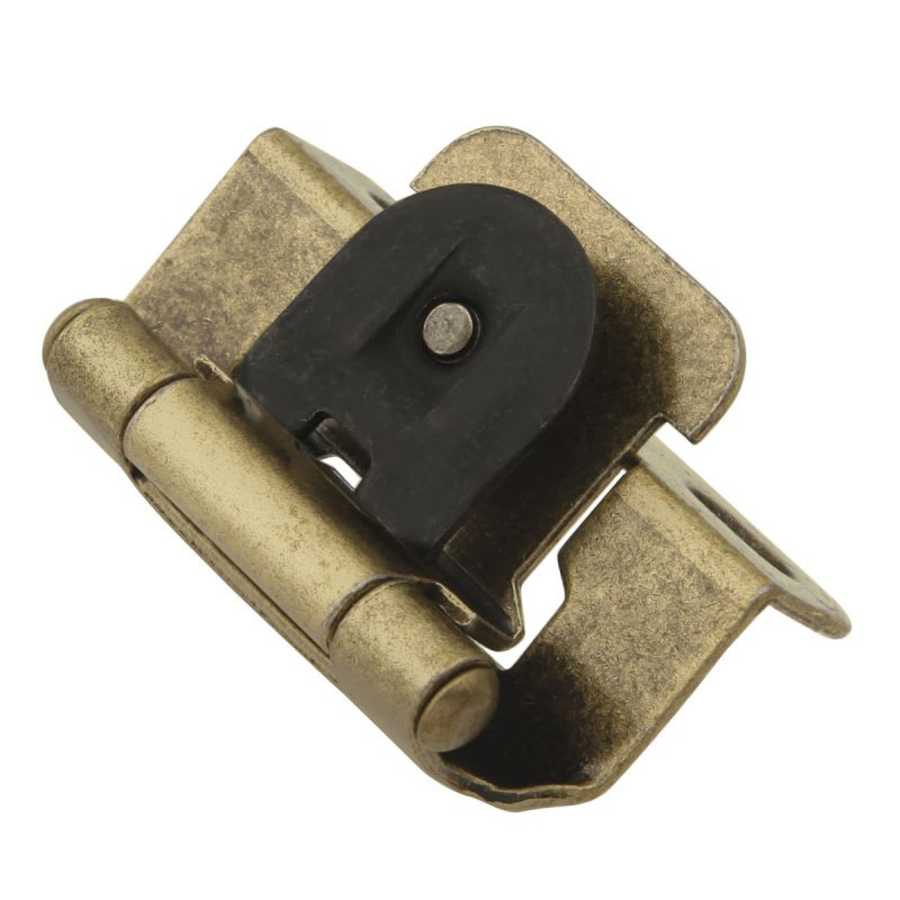

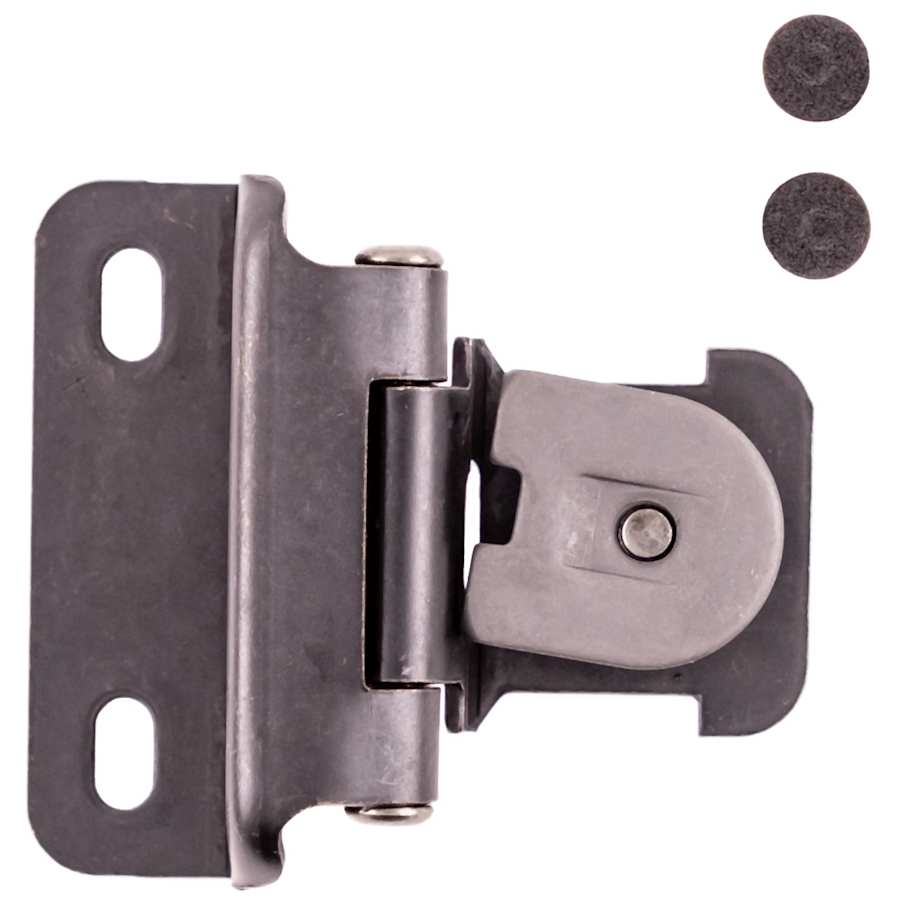

This 1/2 Inch overlay single demountable hinge is a great replacement or upgrade to your existing cabinetry. These are hinges are for retrofit only. Uses slots mortised into door for simple door installation and removal; simply loosen or tighten the clamps as needed. Especially handy for frequent door removal or cleaning, or if staining or painting your cabinets will occur after installation.
Features:
1/2 inch overlay for face frame cabinets
Uses clamp to mount to mortised door and screws for cabinet face frame mounting
Handy for easy door removal from cabinet
Package of twenty (20) total / 10 Pairs

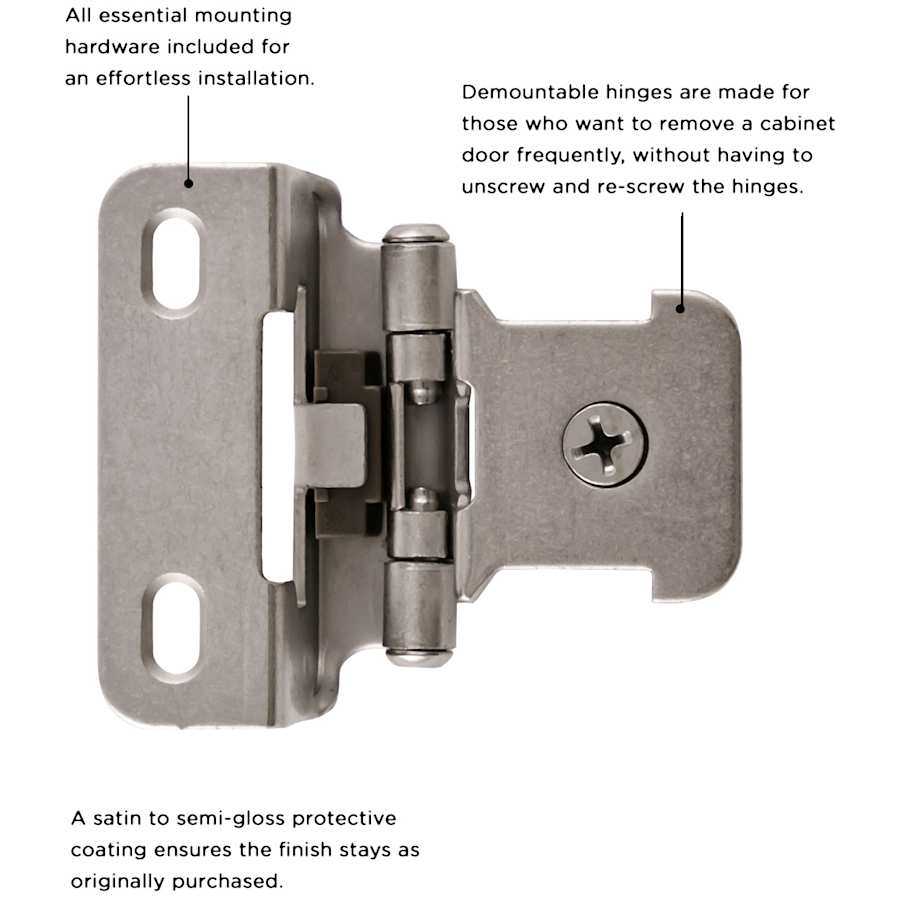

All essential mounting hardware included for an effortless installation
Specifications:

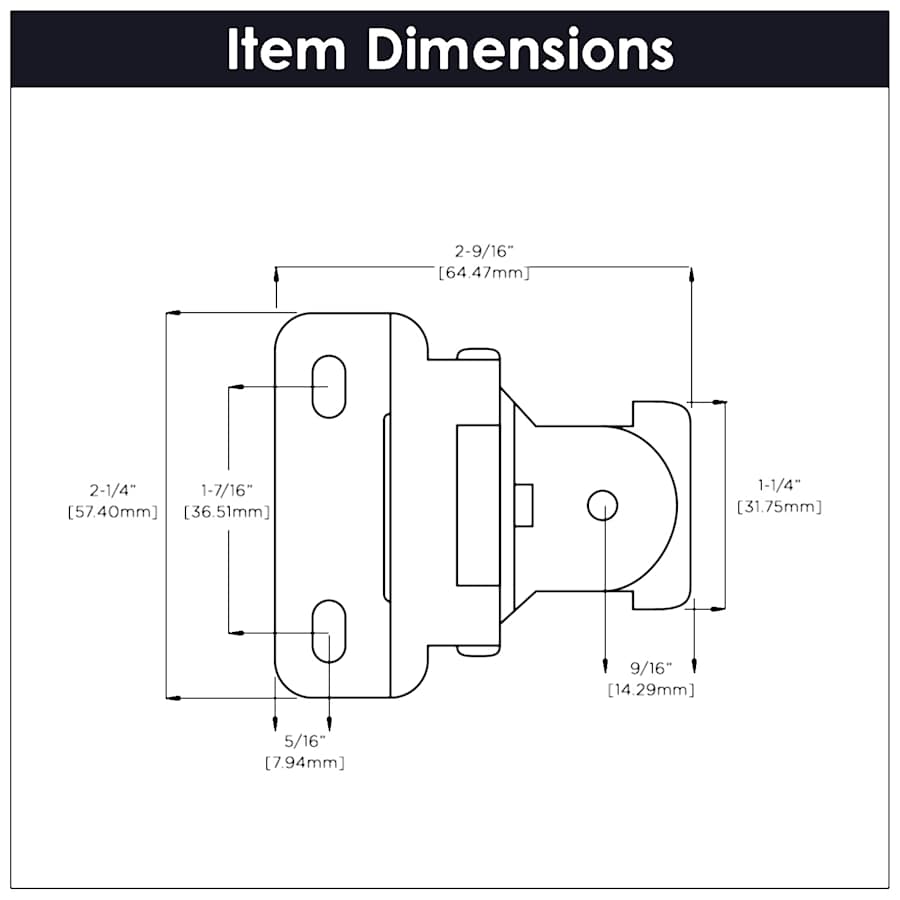

Width: 2-1/2″
Length: 2-1/4″
Hinge Mount: Partial Overlay
Opening Angle: 106
Material: Steel
Installation Type: Screws
Since 1893, Hickory Hardware has built a reputation as the world’s premier producer and preferred supplier of quality decorative cabinet Hardware.
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware Windover Collection
Specifications
| Product Weight | 3 lbs. |
| Width | 2.5 in. |
| Length | 2.25 in. |
| Quantity | 20 |
| Opening Angle | 106 |
| Max Cabinet Door Thickness | 0.75 in. |
| Overlay | 1/2 Inch |
| Material | Steel |
| Insulation Type | Screw |
| Soft Close | No |
| Adjustable Height | No |
| Cabinet Type | Face Frame |
| Bulk Pack | Yes |
| 3-Way Adjustable | No |
| Adjustable Depth | No |
| Adjustable Side to Side | No |
| Demountable | Yes |
| Hinge Mount | Partial Overlay |
| Hinge Type | Wrap |
| Self Closing | No |
| Number Of Hooks | 2 |
| Number of Knuckles | 3 |
| Collection | Windover |
| Approved for Commercial Use | No |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | Limited Lifetime |
| Series | Windover |
| Installation Hardware Included | Yes |
| Color | Antique Brass, Black Iron, Satin Nickel |
| Color Tone | Blacks, Brass Tones, Nickel Tones |
