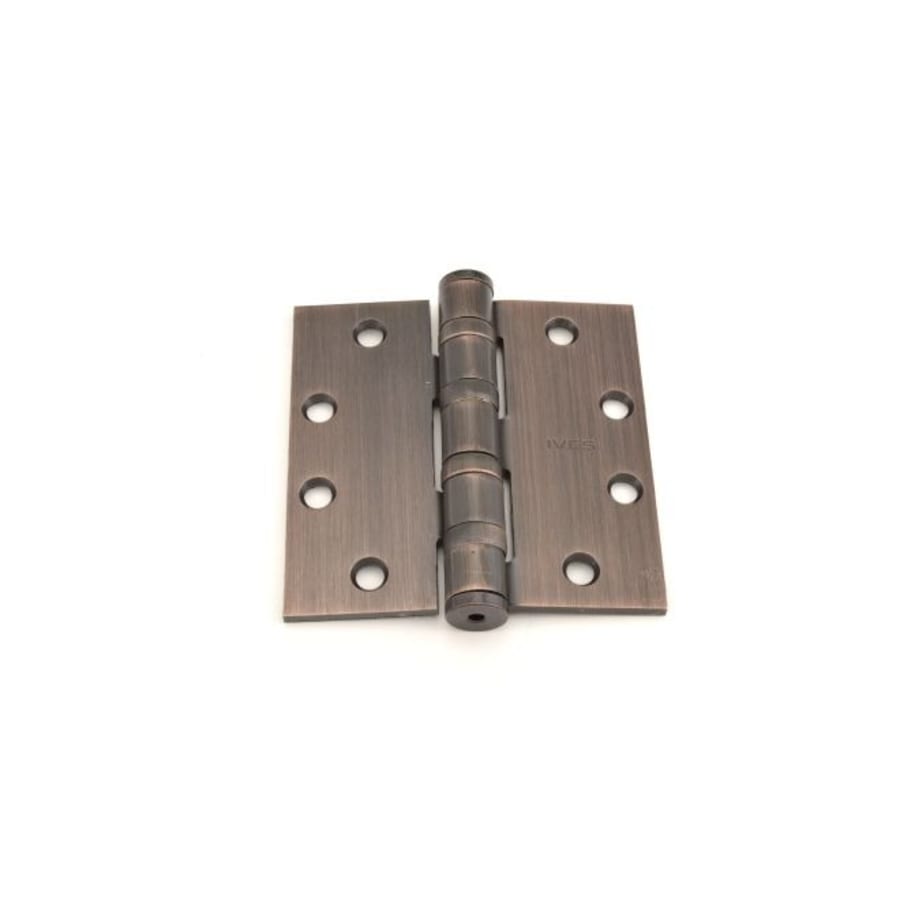

Ives Square Corner 4.5″ x 4.5″ Ball Bearing Mortise Hinge – Single Hinge
Well constructed, attractive and durable, these hinges provide the transitional styling to conform to the traditional or contemporary style you’ve been looking for in your home or business.
Features:
Includes one (1) single hinge in each order
Includes precisely machined square corners
Tested for commercial strength applications, ideal for heavy use
Features a removable pin, allowing you to easily remove your door without having to uninstall the hinges
Packaged with wood screws for a simple installation
Constructed with eight (8) screw holes in an arc hole pattern arrangement for maximum mounting strength
Ball Bearing Hinge: Ball bearing hinges are designed to handle the extra stress brought on by high traffic doorways. The greased bearings reduce the rotational friction extending the life of a hinge in heavy use situations. These hinges tend to be more durable than standard, or plain bearing hinges.
Mounting: The standard corners for mortised door hinges are 1/4″ radius, 5/8″ radius and square corner. It is recommended that three hinges be used on doors up to and including 7.5 feet with one additional hinge for each additional 2.5 feet. Make sure you check your current hinges before making a purchase.
Specifications:
Height: 4.5″
Width: 4.5″
Material: Steel
Mount Type: Mortise
Gauge (Thickness of Hinge Steel): 0.134″
Knuckles: 5
Number of Screw Holes: 8
Quantity: 1
IVES has produced a full line of quality building hardware for over 120 years Throughout this time, IVES has adhered to the firm convictions of its founder, Hobart B Ives, that the success of a company is dependent on two major factors — product quality and customer service Today, IVES reputation is known for these core principles Emphasis is also placed on application flexibility and value IVES extensive hardware line includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops, hinges and more
Additional Ives Links
View the Manufacturer Warranty
Browse all Ives Products
Specifications
| Thermostat | Traditional |
| Material | Steel |
| Mounting Type | Mortise |
| Hinge Type | Ball Bearing |
| Number Of Hooks | 8 |
| Number of Knuckles | 5 |
| Hole Pattern | Arc |
| Removable Pin | Yes |
| Sconce Type | Wood |
| Approved for Commercial Use | Yes |
| ANSI Certification | A156.1 |
| Certifications | ANSI |
| Usage Level | Commercial Grade |
| Corners | Square Corner |
| Quantity | 1 |
| Gauge | 0.134 |
| Hinge Height | 4.5 in. |
| Hinge Size | 4-1/2 x 4-1/2 in. |
| Hinge Width | 4.5 in. |
| Color | Dark Bronze, Medium Bronze, Oil Rubbed Bronze, Polished Brass, Primed, Satin Chrome, Satin Nickel |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones, Whites |
