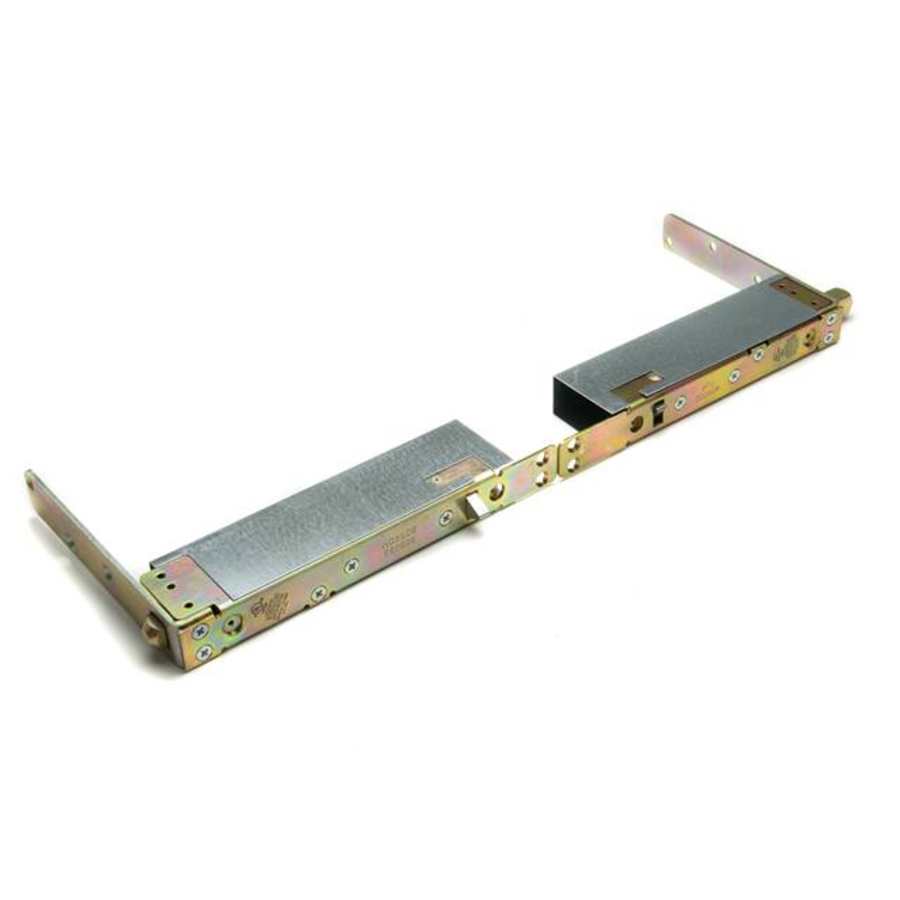

Ives Top and Bottom Pair Automatic UL Listed Flush Bolt for Wood Door 1″ W x 8 1/2″ L x 2″ D Body

Top and Bottom Pair Automatic UL Listed Flush Bolt for Wood Door 1″ W x 8 1/2″ L x 2″ D Body

These top and bottom pair automatic ul listed flush bolt for wood door 1″ w x 8 1/2″ l x 2″ d body are fully automatic, where the inactive door is latched, the bolts are extended when active door closes, then the door is unlatched and bolts retract when active door is opened. The flush bolt is non handed.

Features:

Fully Automatic
Low Actuation Forces-Top Bolt Has No Spring Tension
UL Listed for Fire Doors
Models with Auxiliary Fire Latch Eliminates The Bottom Bolt and is UL Listed for Fire Doors
Finished Cover Plates Permit Finish Changes In Stock Or At Job Site
Bolts Have 3/4″ Throw with a 7/8″Vertical Adjustment
Top and Bottom Bolts: Both Bolts Are Non Handed Bur Are Not Identical The Top Bolt Has No Spring Tension, Resulting In Lower Actuation Force with a Smoother Operation
Meets Ansi A1563 Type 25
Optional Dust Proof Strikes – Dp1 Or Dp2, Prevents Dirt Build Up Assuring Full Engagement of Bottom Bolt
Body Size: 1″ Wide X 6 3/4″ X 2″ Deep
Guide Size: 1″ Wide X 1 27/32″ Long X 27/32″ High X 3/32″ Thick
Strike Size: 15/15″ Wide X 2 1/4″ Long X 1 1/16″ Thick
Rub Plate Size: 1 1/4″ Wide X 1 11/16″ Log X 3/64″ Thick
Auxiliary Fire Latch Size: 1″ Wide X 1 3/4″ Long X 3 1/4″ Deep

IVES has produced a full line of quality building hardware for over 120 years Throughout this time, IVES has adhered to the firm convictions of its founder, Hobart B Ives, that the success of a company is dependent on two major factors — product quality and customer service Today, IVES reputation is known for these core principles Emphasis is also placed on application flexibility and value IVES extensive hardware line includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops, hinges and more
