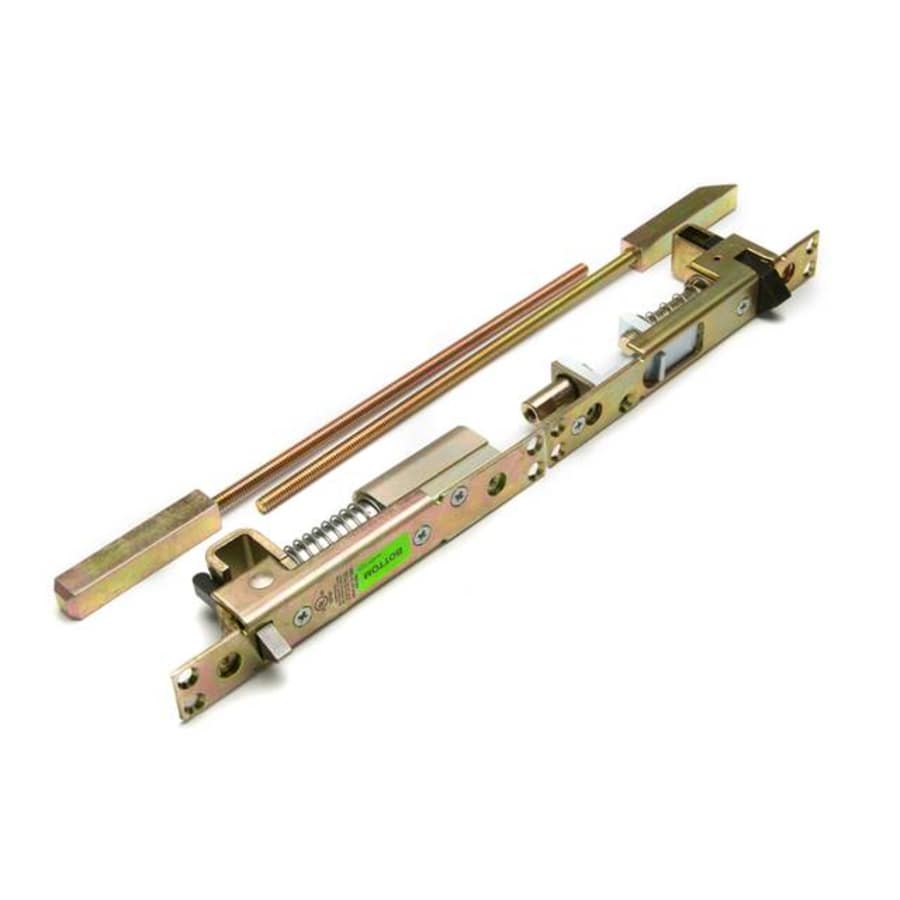

Ives Top and Bottom Pair UL Listed Manual Flush Bolt for Metal Door 12″ Rod and 3/4″ Throw 1″ W x 6 3/4″ L x 2″ D Body

Top and Bottom Pair UL Listed Manual Flush Bolt for Metal Door 12″ Rod and 3/4″ Throw 1″ W x 6 3/4″ L x 2″ D Body

This top and bottom pair UL listed manual flush bolt for metal door 12″ rod and 3/4″ throw 1″ w x 6 3/4″ l x 2″ d body is designed specifically for metal doors. The bolt is made from aluminum zinc alloy. This is designed to give security to any door it is added to.

Features:

UL Listed for Fire Doors
Models with Auxiliary Fire Latch Eliminates The Bottom Bolt and is UL Listed for Fire Doors
Finished Cover Plates Permit Finish Changes In Stock Or At Job Site
Bolts Have 3/4″ Throw with a 7/8″Vertical Adjustment
Meets Ansi A1154 Door and Frame Preparations
Standard Rod Length is 12″, Which is Measured From The Center of The Flush Bolt Body to The Bolt Tip
Optional Dust Proof Strikes – Dp1 Or Dp2, Prevents Dirt Build Up Assuring Full Engagement of Bottom Bolt
Optional Rod Lengths Available for Top Bolt for Non-Fire Rated Openings
Body Size: 1″ Wide X 6 3/4″ X 2″ Deep
Guide Size: 1″ Wide X 1 27/32″ Long X 27/32″ High X 3/32″ Thick
Strike Size: 15/15″ Wide X 2 1/4″ Long X 1 1/16″ Thick
Rub Plate Size: 1 1/4″ Wide X 1 11/16″ Log X 3/64″ Thick
Auxiliary Fire Latch Size: 1″ Wide X 1 3/4″ Long X 3 1/4″ Deep
Filler Plate Size: 1″ Wide X 6 3/4″ Long X 3/32″ Thick

IVES has produced a full line of quality building hardware for over 120 years Throughout this time, IVES has adhered to the firm convictions of its founder, Hobart B Ives, that the success of a company is dependent on two major factors — product quality and customer service Today, IVES reputation is known for these core principles Emphasis is also placed on application flexibility and value IVES extensive hardware line includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops, hinges and more
