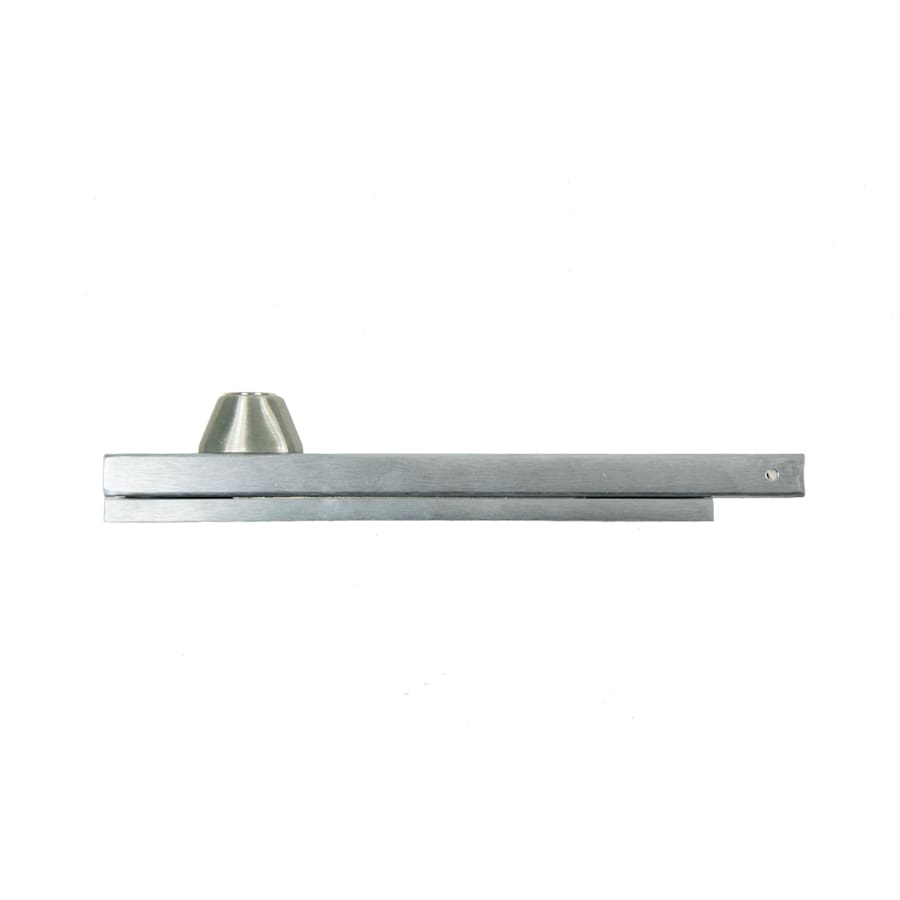

Heavy Duty Steel Universal Top Strike Locking Surface Bolt 8″ L Body 1″ Throw
This heavy duty steel universal top strike locking surface bolt 8″ l body 1″ throw features a concealed screw design to enhance the appearance and security. The interlocking construction provides strength and durability.
Features:
Standard Surface Bolt Has 1″ Throw for Maximum Security
Comes with a Universal Top Bolt and Bottom Strike
Comes with a Universal Locking Top Bolt and Strike
Fully Concealed Mounting Prevents Vandalism
Units Packed with Wood and Machine Screws to Meet Most Field Conditions
UL Listed Up to 3 Hours When Used On The Inactive Door of a Pair Up to 8′ In Height
Optional Sex Bolts Available
Body: 8″ Long X 7/8″ Wide X 3/4″
Overall Knob Or Lock Housing Projection: 1 1/2″
Top Strike: 1 1/4″ Long X 7/8″ Tall X 5/16″ Deep
IVES has produced a full line of quality building hardware for over 120 years Throughout this time, IVES has adhered to the firm convictions of its founder, Hobart B Ives, that the success of a company is dependent on two major factors — product quality and customer service Today, IVES reputation is known for these core principles Emphasis is also placed on application flexibility and value IVES extensive hardware line includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops, hinges and more
Additional Ives Links
View the Manufacturer Warranty
Browse all Ives Products
Specifications
| Width | 0.875 in. |
| Length | 8 in. |
| Depth | 0.75 in. |
| Bottom Strike Depth | .125 in. |
| Bottom Strike Length | 3 in. |
| Bottom Strike Width | 1 in. |
| Material | Steel |
| Approved for Commercial Use | No |
| Certifications | ANSI, UL |
| ANSI Certification | A156.16 |
| BHMA Certification | Grade 1 |
| Color | Oil Rubbed Bronze, Satin Chrome, Zinc Plated |
| Color Tone | Bronze Tones, Greys, Silver Tones |
